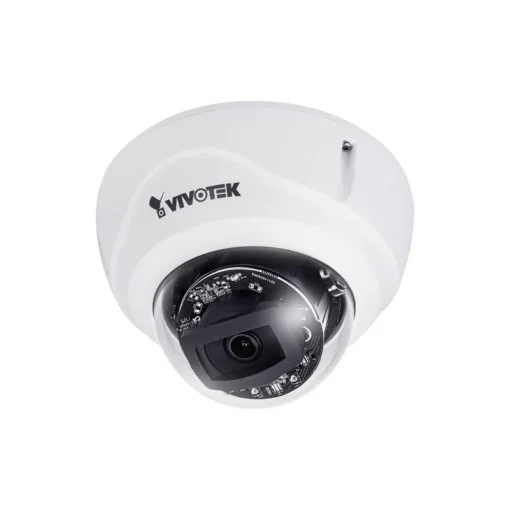

Vivotek Outdoor IK10 Dome H.265 2MP IP camera with Remote Focus 2.8-12mm lens
Overview:
FD9368-HTV – 2MP, H.265, 2.8~12 mm, 30M IR, SNV, WDR Pro
- H.265, H.264, MJPEG
- SNV
- WDR Pro
- Smart Stream III
- Smart IR
- Trend Micro IoT Security
VIVOTEKs FD9368-HTV is a H.265 outdoor dome network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920×1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9368-HTV is capable of capturing high-quality imagery in both high contrast and low light environments.
The FD9368-HTV deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. . Further, to provide reliable coverage in harsh outdoor environments, the FD9368-HTV is encased in IP66 and IK10 housing.
By employing VIVOTEK’s Smart Stream III technology and H.265 codec support, the FD9368-HTV is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.
Features:
- H.265 Compression Technology
- 30 fps @ 1920×1080 (WDR Pro on)
- 2.8~12 mm, Remote Focus
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 30 Meters
- Trend Micro IoT Security
- Weather-proof IP66-rated and Vandal-Proof IK10-rated Housing
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Built-in Microphone
Specifications:
Product Code | VIVOTEK FD9368-HTV![]() |
System Information | |
Model | FD9368-HTV |
CPU | Multimedia SoC (System-on-Chip) |
Flash | 128MB |
RAM | 256MB |
Camera Features | |
Image Sensor | 1/2.9″ Progressive CMOS |
Max. Resolution | 1920×1080 (2MP) |
Lens Type | Motorized, Vari-focal, Remote Focus |
Focal Length | f = 2.8 ~ 12 mm |
Aperture | F1.4 ~ F2.8 |
Auto-iris | Fixed-iris |
Field of View | 32°~93° (Horizontal) |
18°~50° (Vertical) | |
37°~110° (Diagonal) | |
Shutter Time | 1/5 sec. to 1/32, 000 sec. |
WDR Technology | WDR Pro |
Day/Night | Yes |
Removable IR-cut Filter | Yes |
IR Illuminators | Built-in IR Illuminators up to 30 meters with Smart IR, IR LED*2 |
Minimum Illumination | 0.055 lux @ F1.4 (Color) |
<0.005 lux @ F1.4 (B/W) | |
0 Lux with IR illumination on | |
Pan Range | 353° |
Tilt Range | 75° |
Rotation Range | 350° |
Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
On-board Storage | Slot Type: MicroSD/SDHC/SDXC card slot |
Seamless Recording | |
Video | |
Video Compression | H.265, H.264, MJPEG |
Maximum Frame Rate | 30 fps @ 1920×1080 |
Maximum Streams | 3 simultaneous streams |
S/N Ratio | 68 dB |
Dynamic Range | 120 dB |
Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream III |
Image Settings | Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, HLC, defog, 3DNR, video rotation |
Audio | |
Audio Capability | One-way Audio |
Audio Compression | G.711, G.726 |
Audio Interface | Built-in microphone |
Effective Range | 5 meters |
Network | |
Users | Live viewing for up to 10 clients |
Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. | |
ONVIF | Supported |
Solution Integration | |
Video Motion Detection | Five-window video motion detection |
VADP Package | Trend Micro IoT Security, Stratocast |
Alarm and Event | |
Alarm Triggers | Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, manual trigger, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event) |
Alarm Events | Event notification via email, HTTP, FTP, NAS server, SD card |
File upload via email, HTTP, FTP, NAS server, SD card | |
General | |
Connectors | RJ-45 cable connector for 10/100Mpbs Network/PoE connection |
LED Indicator | System power and status indicator |
Power Input | IEEE 802.3af PoE Class 0 |
Power Consumption | Max. 12.95 W (IR on) |
Max. 9 W (IR off) | |
Dimensions | ø 133.7 x 103.8 mm |
Weight | 819 g |
Casing | IP66, IK10 |
Safety Certifications | CE, FCC Class B, UL, LVD, VCCI, C-Tick |
Operating Temperature | Starting Temperature: |
-10°C ~ 60°C (14°F ~ 140°F) | |
Working Temperature: | |
-30°C ~ 60°C (-22°F ~ 140°F) | |
Humidity | 90% |
System Requirements | |
Operating System | Microsoft Windows 8/7 |
Mac 10.12 (Chrome only) | |
Web Browser | Chrome 58.0 or above |
Internet Explorer 10/11 | |
Other Players | VLC: 1.1.11 or above |
Included Accessories | |
Others | Quick installation guide, alignment sticker, screw pack, cable gland |
