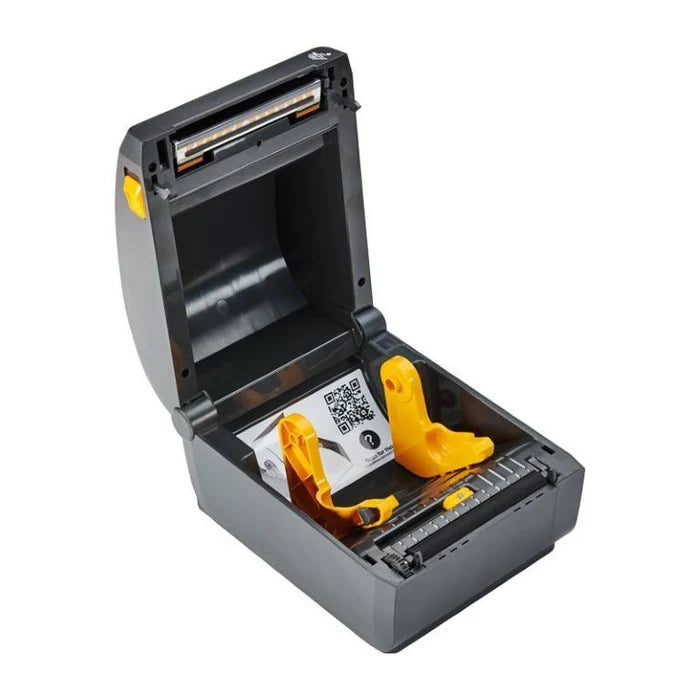

Zebra ZD230 Thermal Transfer Printer USB & LAN
Zebra ZD230 Thermal Transfer Printer USB & LAN, Standard EZPL, 203 dpi, EU and UK power cords, USB, Ethernet, 203 dpi / 8 dots per mm Resolution, 104 mm for 203 dpi Maximum print width, 152 mm per second Maximum print speed
Features:
ZD230 4-Inch Value Desktop Printer – Get more: Extra features, quality construction, exceptional value
Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components and fewer features. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle. Zebra does it differently. Meet the exception. The ZD230 desktop printer gives you extra features and reliable operation at an affordable price-both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction. And, it offers wireless connectivity for networked, remote printing. Built to last for years, the ZD230 provides an outstanding return on your investment.
Get Printing Quickly
The ZD230 is simple to install and begin printing-right out of the box. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. USB, Ethernet, Wi-Fi and Bluetooth connectivity options enable universal interoperability. The ZD230 can accommodate a 300 M ribbon roll to lengthen the time between media changes. And, Zebras OpenACCESS clamshell design expedites media replacement. Its also ENERGY STAR qualified to reduce your operational expenses.
Just the Features You Need
This 4-inch printer produces labels quickly, up to 6″ per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler or cutter. The ZD230 features a core set of Print DNA software applications, powered by Link-OS Basic, to deliver a cost-effective and dependable print experience. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.
Consistently Exceptional Zebra Certified Supplies
Printing supplies can impact everything from printhead lifespan to operational efficiency. Thats why we design, produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer-and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.
Specifications and features : |
|
| Product Code | ZD23042-30EC00EZ |
| Standard Features | Thermal Transfer or Direct Thermal print method |
| ZPL and EPL programming languages | |
| Single LED status indicator | |
| Single button for feed/pause | |
| USB connectivity | |
| OpenACCESS for easy media loading | |
| Dual-wall frame construction | |
| ENERGY STAR qualified | |
| ZebraDesigner Essentials – easy label design tool free at | |
| Physical Characteristics | |
| Dimension | Thermal Transfer: |
| 10.5 in. L x 7.75 in. W x 7.5 in. H | |
| 267 mm L x 197 mm W x 191 mm H | |
| Direct Thermal | |
| 8.6 in. L x 6.9 in. W x 5.9 in. H | |
| 220 mm L x 176 mm W x 151 mm H | |
| Weight | 2.5 lbs/1.1 kg |
| Printer Specifications | |
| Resolution | 203 dpi/8 dots per mm |
| Memory | 256 MB Flash, 128 MB SDRAM |
| Maximum Print Width | 4.09 in./104 mm for 203 dpi |
| Maximum Print Speed | 6 in./152 mm per second |
| Media Sensors | Movable black mark sensor, limited range from center to left side |
| Fixed off-center gap sensor | |
| Firmware | ZPL II, EPL 2, XML |
| Media and Ribbon Characteristics | |
| Maximum Label Length | 39.0 in./991 mm |
| Media Width | 1.00 in./25.4 mm to 4.4 in./112 mm |
| Media Roll Size | 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm) |
| Thickness | 0.003 in. (0.08 mm) min, 0.0075 in. (.1905 mm) max. (tear-off mode only) |
| Media Types | Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands |
| Ribbon Outside Diameter | 2.6 in./66 mm (300 m), 1.34 in./34 mm (74 m) |
| Maximum Ribbon Length | 984 ft. (300 m) |
| Ribbon Ratio | 1:4 media to ribbon (300 m) |
| 1:1 media to ribbon (74 m) | |
| Ribbon Width | 1.33 in./33.8 mm ~ 4.3 in./109.2 mm |
| Ribbon Core I.D. | 300 Meter ribbon 1 in./25.4 mm |
| 74 Meter ribbon 0.5 in./12.7 mm | |
| Operating Characteristics | |
| Operating Temp. | 40° to 105° F/4.4° to 41° C |
| Storage Temp. | -40° to 140° F/-40° to 60° C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 95% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz, ENERGY STAR qualified |
| Operations and Accessories | |
| Media Handling | Factory installed peeler or cutter |
| Communications | Factory-installed USB and Ethernet |
| Factory-installed USB and Bluetooth 4.1 | |
| Factory-installed USB 802.11ac Wi-Fi and Bluetooth 4.1 | |
| Real Time Clock | None |
| Keyboard Display Unit | No serial port, thus no KDU/ZKDU |
| Fonts/Graphics/Symbologies | |
| Bar Code Ratios | 2:1 and 3:1 |
| 1D Bar Codes | Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code |
| 2D Bar Codes | Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec |
| Fonts and Graphics | 16 resident expandable ZPL II bitmap fonts |
| Two resident scalable ZPL fonts | |
| Five resident expandable EPL2 fonts | |
| Native open-type font support | |
| Unicode compliant for multi-language, on demand thermal printing | |
| China units include SimSun simplified Chinese font | |
| 50 MB user available non-volatile memory, 8 MB user available SDRAM | |
