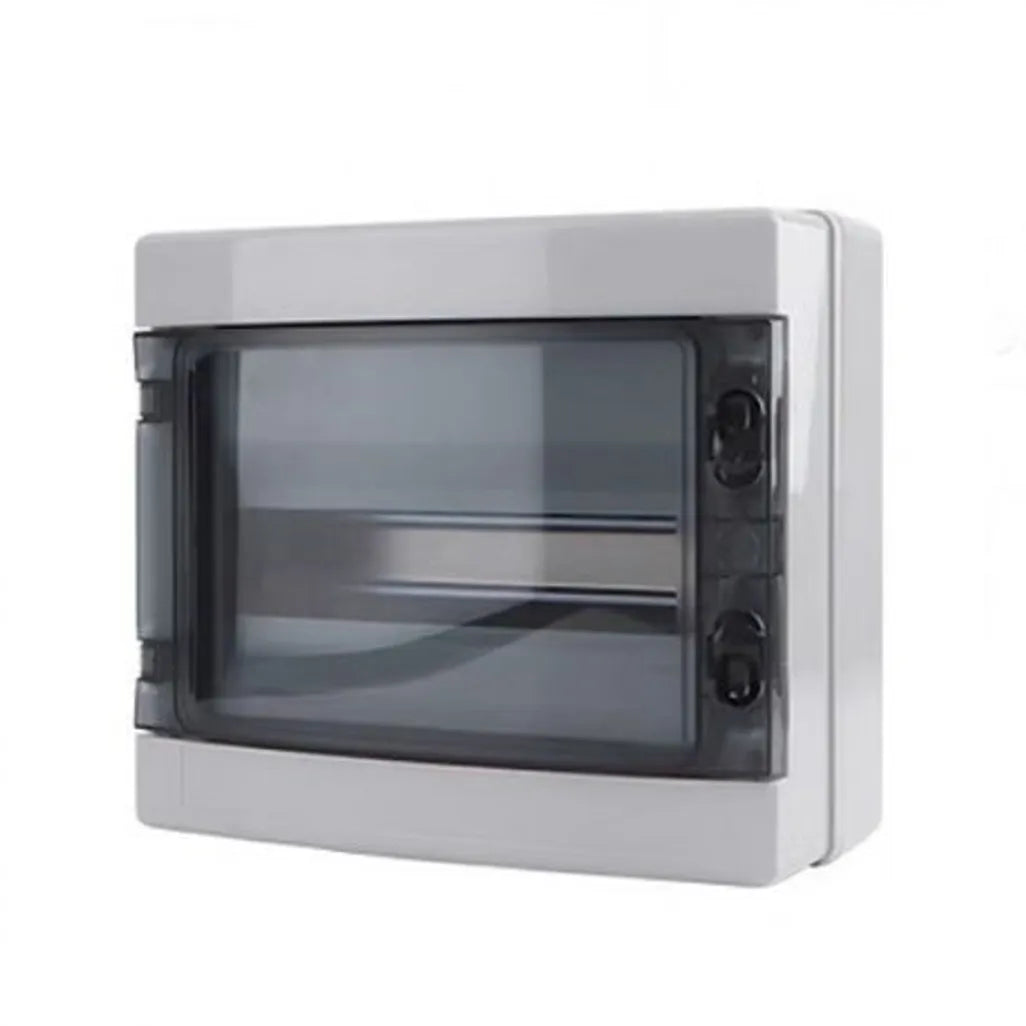

The DB1-12S is a 12-way surface-mounted empty plastic distribution board designed to house DIN-rail devices such as MCBs and RCDs for residential, commercial, or light-industrial installations.

Key Features

• 12 module (12-way) capacity
• Surface-mount enclosure for solid, non-flammable walls
• Transparent hinged cover for easy visual inspection
• Fire-resistant ABS/PC plastic construction
• DIN-rail compatible interior
• Cable entry knockouts for flexible routing
• Compact footprint for space-constrained installs

Technical Specifications

• Model / Part No.: DB1-12S
• Type: Empty plastic distribution board (unpopulated)
• Number of Ways: 12 (12 modules)
• Mounting: Surface mount (wall)
• Material: Fire-resistant ABS / Polycarbonate
• Rated Voltage: 230 / 400 V AC
• Rated Current: Up to 63 A
• Ingress Protection: IP40 (typical for indoor use)
• Approx. Dimensions: ~200 mm (H) × 256 mm (D) × 95 mm (W)
• Approx. Weight: ~0.64 kg

Compatibility & Use

• Accepts standard DIN-rail circuit protection devices
• For indoor installations; verify IP rating for the environment
• Install by a qualified electrician and ensure correct earthing

Important Notes

• This is an empty distribution board; breakers and accessories are not included.
• Use appropriate glands/knockouts and follow local electrical regulations.
