M-Link Generic 65W Yellow Pin Charger for HP – 18.5V 3.5A 4.8 × 1.7mm | HPYP

M-Link Generic 65W Yellow Pin Charger for HP – 18.5V 3.5A 4.8 × 1.7mm | HPYP

M-LINK

HPYP

R 500.00
R 500.00
Taxes included. Shipping calculated at checkout.

Online Only

Complete your setup
Loading recommendations...
Nationwide delivery
Delivery calculated at checkout. Shipping info
Secure checkout
Pay securely with trusted payment providers.
Warranty & returns
Warranty included. Returns policy
Buy now. Pay later.
Pay in 4 interest-free payments of R 125.00 with Payflex.

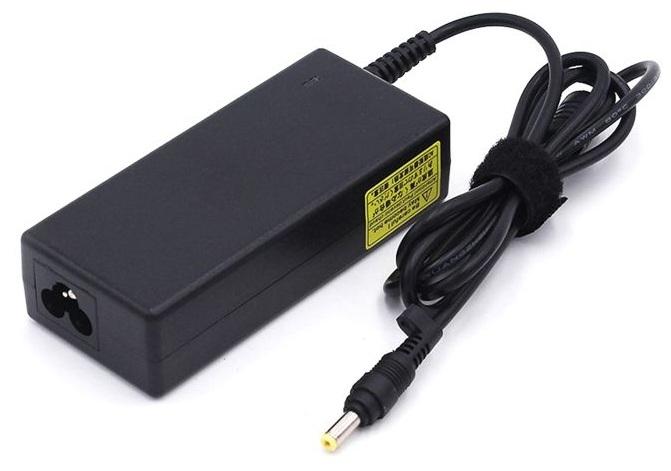

The M-Link HPYP Generic 65W Yellow Pin Charger for HP is a replacement laptop power adapter designed for compatible HP and Compaq laptops requiring an 18.5V, 3.5A, 65W power supply with a 4.8 × 1.7mm yellow pin connector.

Designed primarily for selected older HP and Compaq notebook ranges, the HPYP can be used to replace a lost or damaged compatible charger or kept as a convenient spare power adapter for home, office or travel use.

Important: HP and Compaq laptops use different voltages, wattages and connector types. Always check the specifications printed on your original charger and confirm the required connector size before purchasing.

Key Features

  • 65W replacement power adapter for compatible HP and Compaq laptops
  • 18.5V DC output voltage
  • 3.5A output current
  • 4.8 × 1.7mm yellow pin DC connector
  • 100-240V AC input range
  • 50-60Hz input frequency
  • Over-voltage protection
  • High-temperature protection
  • Short-circuit protection
  • CE and FCC certified
  • RoHS compliant
  • Generic replacement charger
  • 6-month warranty

65W Power for Compatible HP Laptops

The M-Link HPYP delivers up to 65W of power with a rated output of 18.5V DC at 3.5A. It is intended for compatible HP and Compaq laptops designed to operate with these power specifications.

When replacing a laptop charger, the required voltage and connector must match the requirements of the laptop. The required wattage and current capability should also be confirmed before use.

4.8 × 1.7mm Yellow Pin Connector

This charger features the older-style 4.8mm outer diameter × 1.7mm inner diameter yellow pin connector used by selected HP and Compaq laptops.

HP has used several different charging connectors across its laptop ranges, including different barrel sizes and newer smart-pin designs. Do not determine compatibility by the HP brand alone.

Built-In Safety Protection

The charger incorporates protection against over-voltage, high temperature and short circuits, helping protect compatible equipment during normal charging and operation.

Wide-Range AC Input

With support for 100-240V AC at 50-60Hz, the adapter is designed to operate across a wide range of compatible mains power supplies, making it practical for home, office and travel use.

Compatible Models

Supplied compatibility information includes selected older HP and Compaq laptop models and series such as:

  • HP 500
  • HP 510
  • HP 520
  • HP 530
  • HP 540
  • HP 550
  • HP 620
  • HP 625
  • HP Pavilion dm3 Series
  • HP Pavilion dm3t Series
  • HP Pavilion dm3z Series
  • Compaq Presario 300 Series
  • Compaq Presario 900 Series
  • Compaq Presario 1500 Series
  • Compaq Presario V1000 Series
  • Compaq Presario V6000 Series
  • HP Compaq 6720s
  • HP Compaq nc4200
  • HP Compaq nc6000

Compatibility should not be determined by laptop model alone. Different configurations or revisions may use different power adapters. Confirm that your laptop requires 18.5V, 65W and a 4.8 × 1.7mm yellow pin connector before purchasing.

How to Check Compatibility

  • Check the output voltage on your original charger – it should be 18.5V
  • Check the required wattage – this charger provides up to 65W
  • Check the output current – this charger is rated at 3.5A
  • Confirm that your laptop uses a 4.8 × 1.7mm yellow pin connector
  • Check the power requirements for your exact HP or Compaq laptop model

Do not use the charger if the voltage or connector does not match your laptop's requirements. Using an incompatible power adapter may prevent correct operation or potentially damage the device.

If you are unsure about the required tip size, voltage or wattage, take your laptop and existing charger to your nearest Matrix Warehouse store for assistance before purchasing a replacement charger.

Technical Specifications

  • Brand: M-Link
  • Model: HPYP
  • Product Type: Generic Replacement Laptop Charger
  • Compatible Brand: HP / Compaq
  • Power Output: 65W
  • Output Voltage: 18.5V DC
  • Output Current: 3.5A
  • Input Voltage: 100-240V AC
  • Input Frequency: 50-60Hz
  • Connector Size: 4.8 × 1.7mm
  • Connector Type: Yellow Pin DC Connector
  • Protection: Over-Voltage, High-Temperature and Short-Circuit Protection
  • Certifications: CE, FCC
  • Compliance: RoHS
  • Warranty: 6 Months

Compatibility

Designed for compatible HP and Compaq laptops requiring an 18.5V 3.5A 65W power adapter with a 4.8 × 1.7mm yellow pin connector. Exact electrical and connector requirements should always be verified before purchase.

Ideal For

  • Replacing a lost or damaged compatible HP charger
  • Replacing a compatible Compaq laptop charger
  • Keeping a spare charger at home or work
  • Selected older HP Pavilion laptops
  • Selected HP Compaq laptops
  • Selected Compaq Presario laptops
  • Compatible laptops requiring an 18.5V 65W yellow pin adapter
