Hikvision

Specifications

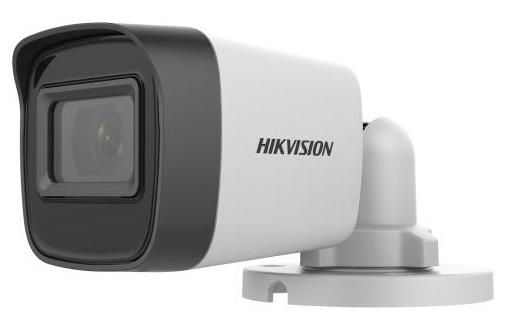

2 MP Fixed Mini Bullet Camera

High-Quality Imaging With 2 MP, 1920 × 1080 Resolution

2.8 mm, 3.6 mm Fixed Lens

Up to 20 m IR Distance For Bright Night Imaging

One Port For Four Switchable Signals (TVI / AHD / CVI / CVBS)

Water And Dust Resistant (IP67)

Camera

Image Sensor: 2 MP CMOS

Signal System: PAL/NTSC

Max. Resolution: 1920 (H) × 1080 (V)

Min. Illumination: 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Day & Night: IR Cut Filter

Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens

Lens Type: 2.8 mm, 3.6 mm Fixed Lens

Focal Length & FOV

2.8 mm, Horizontal FOV: 96.5°, Vertical FOV: 48.9°, Diagonal FOV: 120.5°

3.6 mm, Horizontal FOV: 76.9°, Vertical FOV: 40.6°, Diagonal FOV: 92.0°

Lens Mount: M12

Illuminator

Supplement Light Range: Up To 20 m

Supplement Light Type: Smart, IR, White Light


Frame Rate

TVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

CVBS: PAL / NTSC

Wide Dynamic Range (WDR): Digital WDR

Image Parameters Switch: STD / HIGH-SAT

Day / Night Mode: Auto / Color

White Balance: Auto

Image Enhancement: DWDR, BLC, Global

Noise Reduction: 2D DNR

Image Settings: Brightness, Mirror, Smart IR, Sharpness, AGC

Interface

Video Output: Switchable TVI / AHD / CVI / CVBS

General

Language: English

Operating Condition

-40°C to 60°C (-40°F to 140°F)

Humidity: 90% or less (non-condensing)

Material: Plastic

Communication: HIKVISION-C

Dimension: 138.8 mm × 60.9 mm × 57.9 mm (5.465" × 2.389" 2.278")

Approx. 145 g (0.32 lb.)
