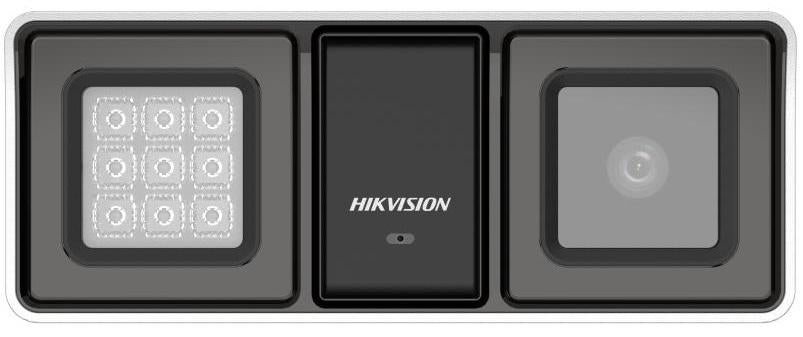

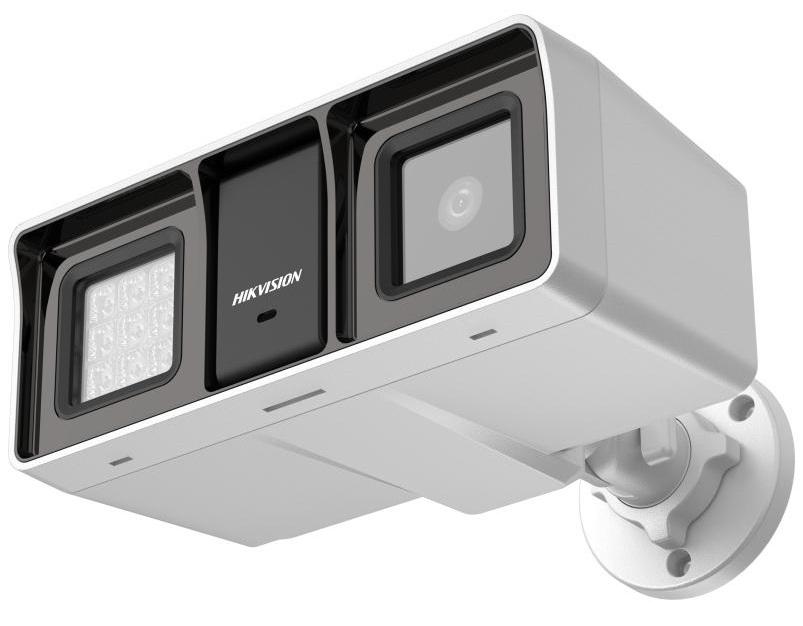

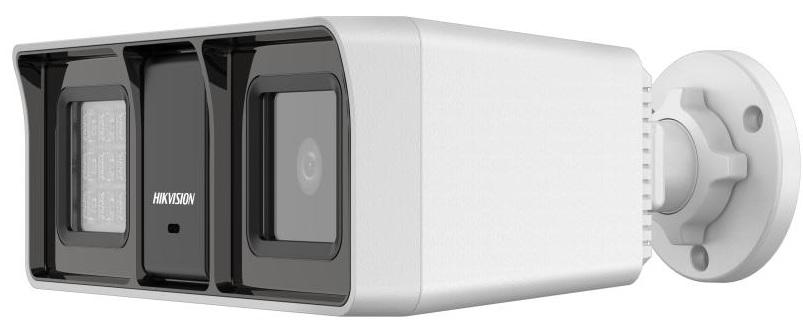

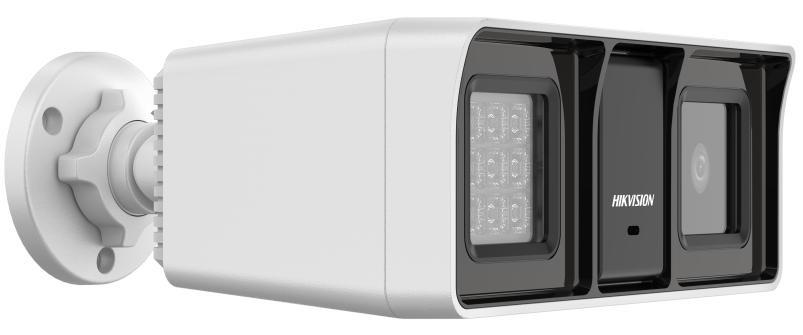

2MP BULLET CAMERA 2.8MM 60M - DS-2CE18D0T-LFS2.8MM

Hikvision

Specifications

2MP Smart Hybrid Light Audio Fixed Bullet Camera

High-Quality Imaging With 2 MP, 1920 × 1080 Resolution

2.8 mm, 3.6 mm Fixed Focal Lens

Up To 60 m IR Distance For Bright Night Imaging

Up To 60 m White Light Distance For Bright Night Imaging

High-Quality Audio With Audio Over Coaxial Cable, Built-In Mic

One Port For Four Switchable Signals (TVI / AHD / CVI / CVBS)

Water And Dust Resistant (IP67)

Smart-Hybrid Light, Optimize Your Security With Flexible Lighting Options

Camera

Image Sensor: 2 MP CMOS

Max. Resolution: 1920 (H) × 1080 (V)

Min. Illumination: 0.001 Lux @ (F1.0, AGC ON), 0 Lux With White Light

Shutter Time: PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Day & Night: ICR

Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Signal System: PAL/NTSC

Lens

Lens Type: Fixed Focal Lens, 2.8 mm, 3.6 mm and 6 mm Optional

Focal Length & FOV

2.8 mm, Horizontal FOV: 101°, Vertical FOV: 56°, Diagonal FOV: 118°

3.6 mm, Horizontal FOV: 78°, Vertical FOV: 42°, Diagonal FOV: 92°

6 mm, Horizontal FOV: 49.2°, Vertical FOV:28.3 °, Diagonal FOV: 56.1°

Lens Mount: M12

Microphone

Pickup Distance: In A Radius Of Up To 5 m

Amount: 1

Illuminator

Supplement Light Type: Smart, IR, White Light

Supplement Light Range

IR: Up to 60 m

White Light: Up to 60 m


Image Settings: Anti-Banding, Brightness, Sharpness, Smart IR

Frame Rate

TVI: 1080P @ 30 fps, 1080P @ 25 fps

AHD: 1080P @ 30 fps, 1080P @ 25 fps

CVI: 1080P @ 30 fps, 1080P @ 25 fps

CVBS: PAL/NTSC

Day / Night Mode: Auto / Color

Wide Dynamic Range (WDR): Digital WDR

Image Enhancement: DWDR / BLC / HLC / Global

White Balance: Auto / Manual

AGC: Yes

Interface

Video Output: Switchable TVI / AHD / CVI / CVBS

General

Power: 12 VDC ± 25%, Max.9.8 W

*You Are Recommended To use One Power Adapter To Supply The Power For One Camera*

Material

Front Cover: Metal

Main Body: Plastic

Dimension: 192.6 mm × 178.3 mm × 71 mm (7.58" × 7.02" × 2.8")

Approx. 738 g (1.63 lb.)

Operating Condition

40 °C to 60 °C (-40 °F to 140 °F)

 Humidity: 90% Or Less (Non-Condensation)

Communication: HIKVISION-C

Language: English

Approval

Protection: IP67
