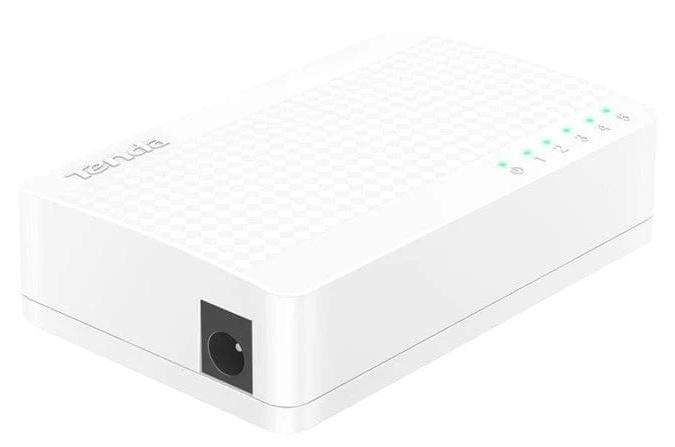

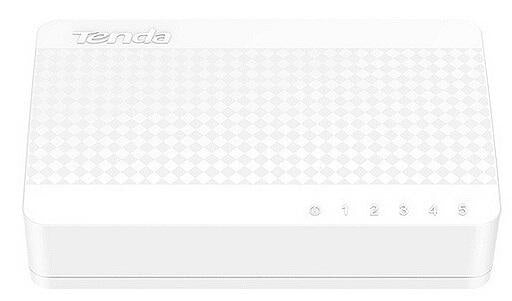

5-PORT 10/100MBPS DESKTOP SWITCH - TE-S105

The Tenda TE-S105 Is An Unmanaged, 5-Port 10 / 100Mbps

Fast Ethernet Desktop Switch Or SOHO, Featuring 5 x 10/100Mbps Auto MDI / MDIX Ports

Plug-and-Play Setup, 1.0Gbps Switching Capacity, 1K MAC Table

IEEE 802.3/3u/3x Compliance, Store-And-forward Forwarding

LED Indicators, and Support For Desktop / Wall-Mounting With A 5V Power Supply

Key Specifications

Ports: 5 x 10/100 Mbps RJ45 (Auto MDI/MDIX)

Switching Capacity: 1.0 Gbps

MAC Address Table: 1K Entries (1000)

Networking Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding Mode: Store-And-Forward

LEDs: Per Port for Connection Status

Power: 5V DC, 0.6A (External Adapter Included)

Power Consumption Maximum: <1.6W

Dimensions (L x W x H): 82mm x 52mm x 22.30mm

Features: Plug-And-Play, Auto-Negotiation, Supports IP Cameras

What It's For

Ideal For: Small Office/Home Office (SOHO)

Connects: Computers, Printers, Smart TVs, Game Consoles, IP Cameras, NAS.

How it Works

Auto-Negotiation: Ports Automatically Detect Speed (10 or 100 Mbps) And Duplex (Half / Full)

Plug & Play: No Complex Setup needed; just Plug in your Devices

Desktop/Wall Mount: Flexible placement in your space.

Certifications: CE, FCC, RoHS

ESD Protection: 8 kV (Air), 6 kV (Contact)

Operating Conditions: 0-45 C; 10-90 % RH Non-Condensing

Operation System: Windows 8 32 / 64 Bit, Windows 7 32 / 64 Bit

Windows XP 32 / 64 Bit, Linux, MAC OS
