5-PORT GIGABIT ETHERNET SWITCH - TE-SG105

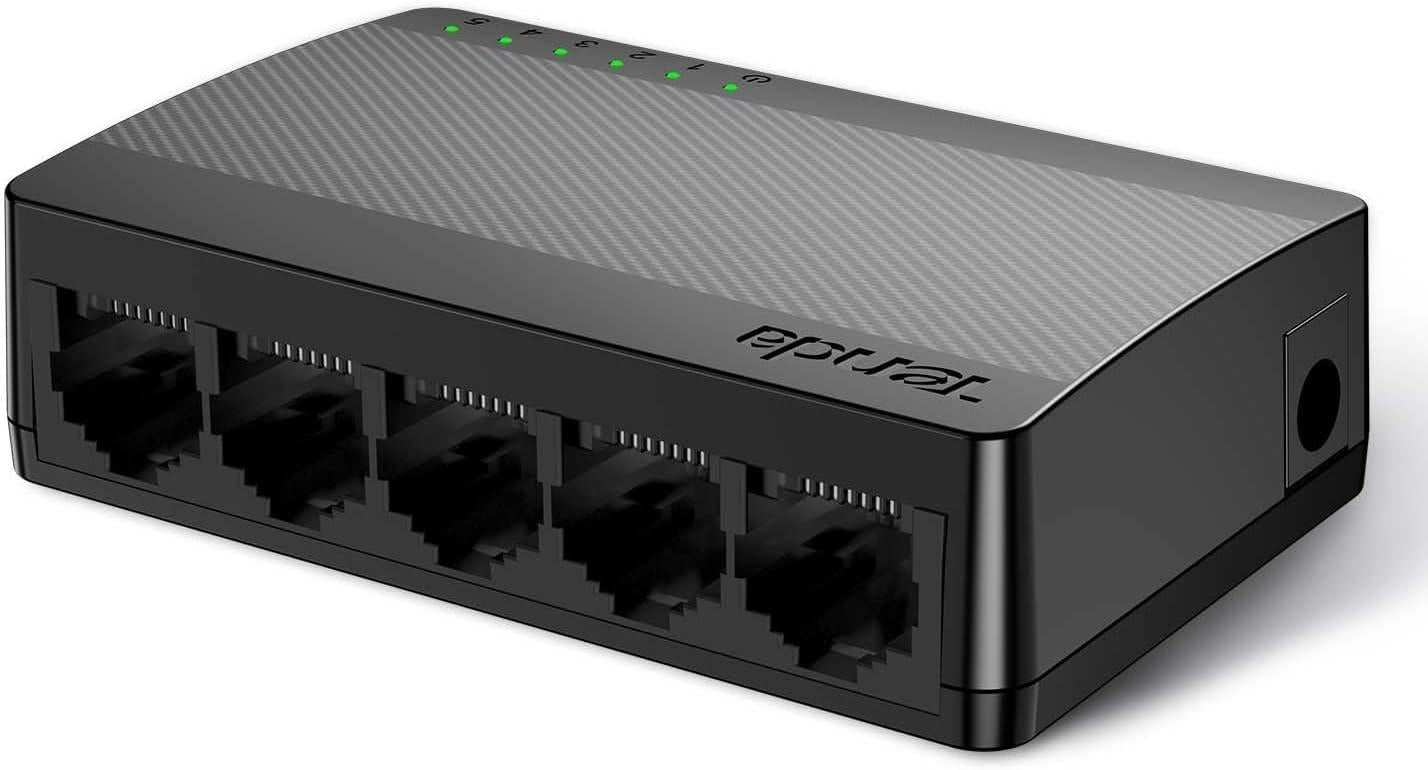

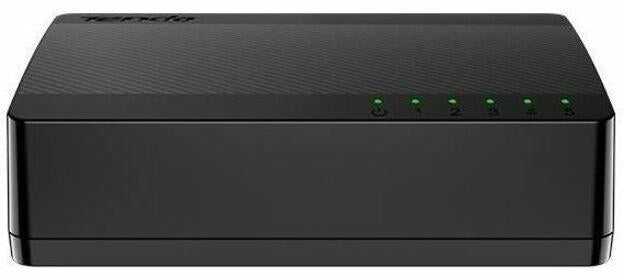

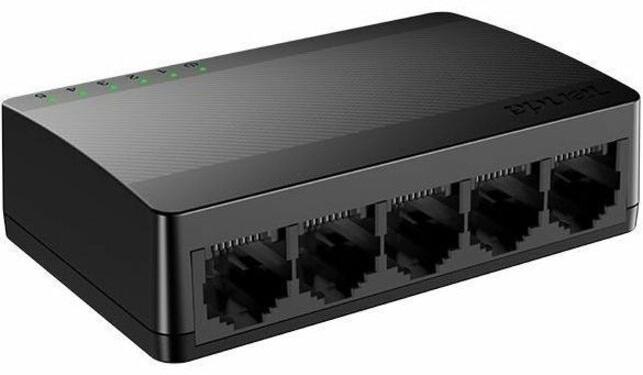

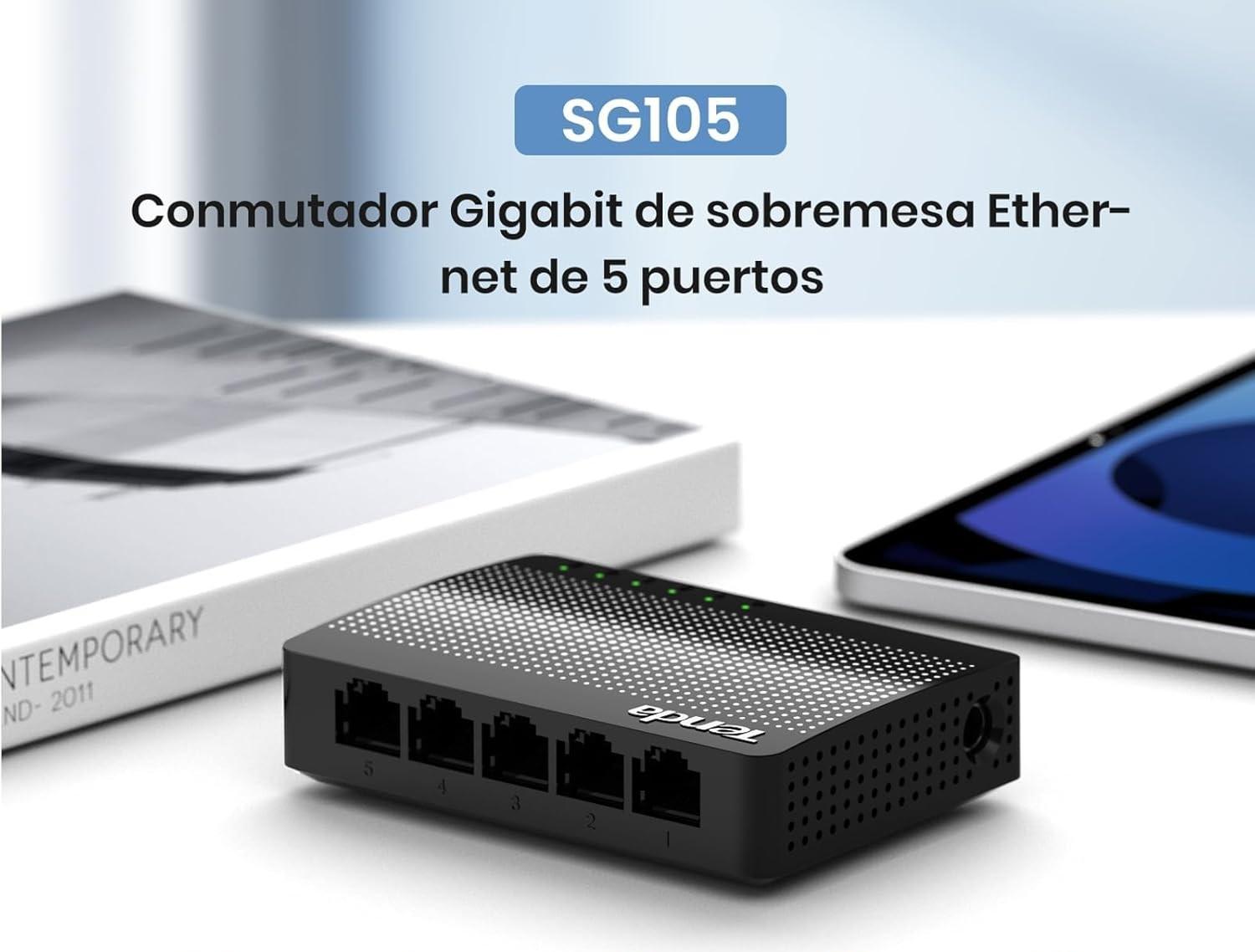

Tenda SG105 5-Port Gigabit Ethernet Desktop Switch

The Tenda SG105 Is A Compact, Plug-And-Play 5-Port Gigabit Ethernet Switch For Home / SOHO Use

Offering 10/100/1000Mbps Auto-Negotiation Ports, 10Gbps Switching Capacity

Auto MDI/MDI-X, And Support for 9K Jumbo Frames for smooth

High-Speed Data Transfer, with Desktop or Wall-Mounting Options and Low Power Consumption

Ideal For Connecting PCs, Cameras, And Smart TVs Without Configuration

Key Specifications

Ports: 5 x 10 / 100 / 1000Mbps Auto-Negotiation RJ45 Ports

Switching Capacity: 10 Gbps

Packet Forwarding Rate: 7.44 Mpps

MAC Address Table: 2K/4K Entries

Jumbo Frames: Supports 9K (or 15K) Jumbo Frames for Large Data

Network Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab

Features: Auto MDI / MDI-X, Store-And-Forward, Plug & Play

Power: External 5V  /0.6A Adapter (Included), Low Power Consumption (-2-3W)

Design: Compact, Fanless, Plastic Casing, Desktop or Wall-Mountable

Best For

Small Offices, Home Offices (SOHO)

School Dormitories

Expanding Wired Networks for Devices like PCs, IP Cameras, Smart TVs, Game Consoles

Ease of Use

Plug & Play: No Configuration needed, just Plug in Cables

Auto MDI/MDI-X: Simplifies Cable Management

Operation System: Windows 8 32 / 64 Bit, Windows 7 32 / 64 Bit

Windows XP 32 / 64 Bit, Linux, MAC OS
