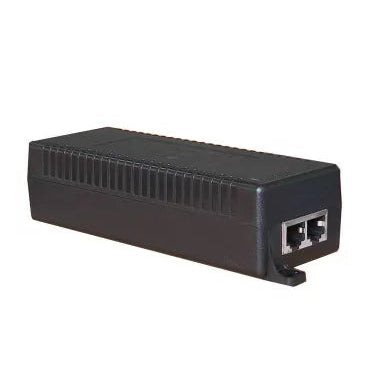

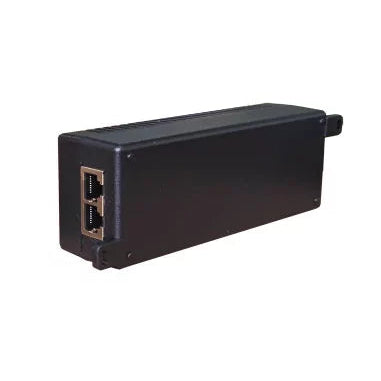

The Acconet 10Gbps passive PoE injector delivers both data and power to compatible network devices using a single Ethernet cable. Designed for high-speed installations, it supports 10/100/1000 Mbps, 2.5G, 5G and 10G data rates, making it suitable for modern access points, cameras, switches and other high-bandwidth equipment.

With a 48V DC output supplying up to 0.625A (30W), this injector provides stable power without requiring a separate power source. The passive PoE design helps simplify cabling, making it useful for installations where mains power is not easily accessible.

Built-in surge protection safeguards connected equipment, with 3 kV protection on the AC input and 2 kV protection on the RJ45 port. LED indicators allow quick checking of power status during setup and operation.

Installation is plug-and-play: connect the AC input and RJ45 cables to start powering your device. The compact housing measures 175 × 65 × 30 mm and weighs approximately 380 g, suitable for wall or desk mounting with minimal space requirements.

Key Features

• Supports high-speed data: 10/100/1000 Mbps, 2.5G, 5G and 10G
• 48V DC output up to 30W (0.625A max)
• Passive PoE for simplified cabling
• Built-in surge protection: 3 kV AC port, 2 kV RJ45 port
• LED status indicators for power monitoring
• Compact and lightweight housing

Technical Specifications

• Model: AC-POE-48V-30WP-10G
• Output voltage: 48V DC
• Output current: 0.625A (30W max)
• Supported data rates: 10/100/1000 Mbps, 2.5G, 5G, 10G
• Transmission distance: up to 100 m at 2.5G; up to 30 m at 10G
• Power pinout: 1/2 (+), 3/6 (–)
• Surge protection: 3 kV AC port; 2 kV RJ45 port
• Dimensions: 175 × 65 × 30 mm
• Weight: ±380 g
• Warranty: 1 year
