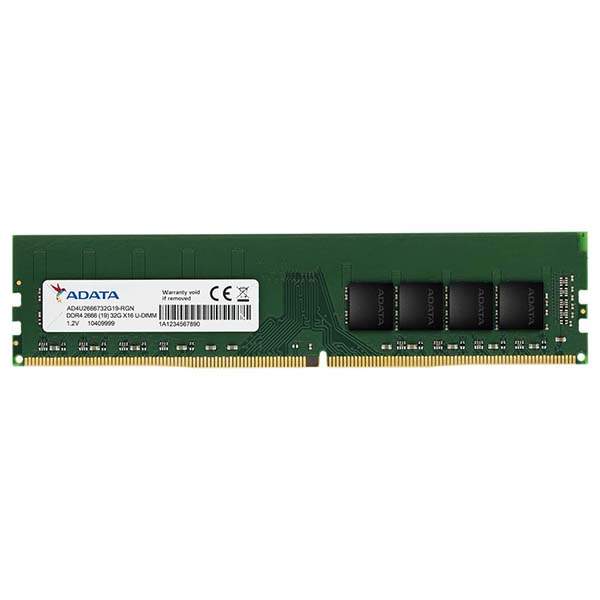

Adata Premier 4GB DDR4-2666 CL19 1.2V 288 pin DIMM Memory, CL 19-19-19

Features:

ADATA Premier DDR4 2666 unbuffered-DIMM memory is the latest upgrade solution that supports Intel's newest platforms for faster data transfer and enhanced power efficiency. Utilizing a 288-pin design, operating voltage has been reduced from 1.5V on DDR3 to 1.2V, which not only helps save power by 20%, but also boosts transfer bandwidth speed to 21.3GB/s. Every chip in ADATA memory modules meets strict JEDEC and RoHS standards, ensuring compatibility, stability, and environmentally friendly products.

Meets Demanding Standards for New-Generation Platforms

• Complies with JEDEC standards
• RoHS compliant
• Supports Intel Skylake-X and Kaby Lake-X CPU

Specifications:

Product Code	AD4U26664G19-SGN
Module Type	U-DIMM
Form Factor	standard 1.23" height
Memory Type	DDR4
Standard	JEDEC
Interface	288-pin
Density	4GB / 8GB / 16GB / 32GB
Speed	2666MHz
CAS Latency	CL 19-19-19
Power supply	VDD and VDDQ = 1.2V±0.06V
DRAM activation power supply	VPP= 2.5V (+0.25V / -0.125V)
DRAM spec/VCC	DDR4 STD 1.2V
Operating temperature	0°C to 85°C
