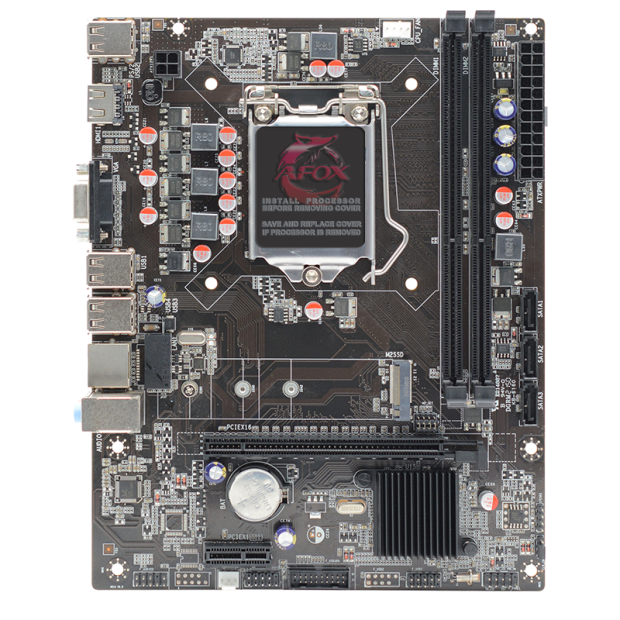

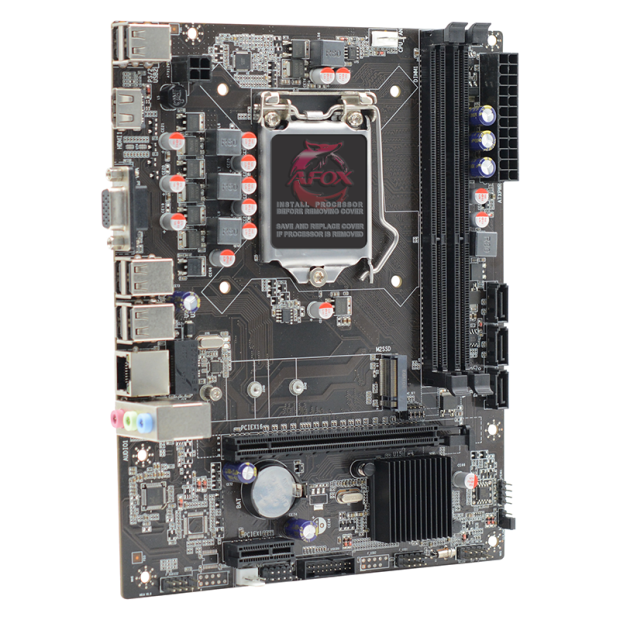

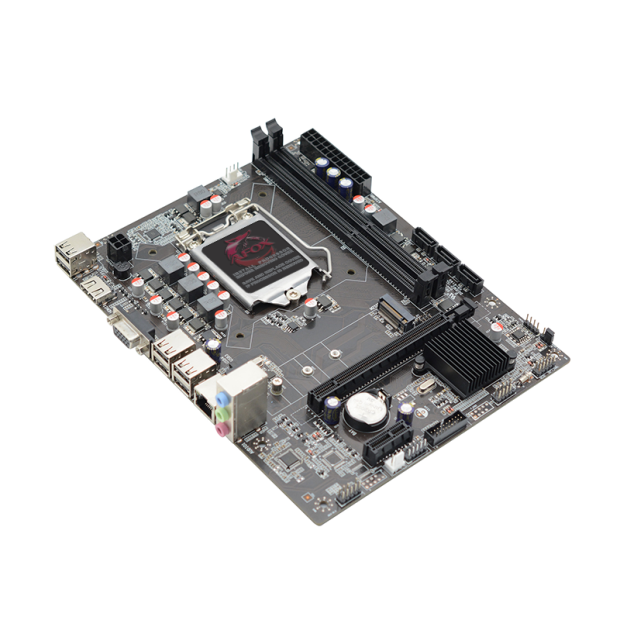

AFOX MB INTEL LGA1155, H61,DDR3, MATX - IH61-MA5-V6

AFOX IH61-MA5-V6

Model Name: IH61-MA5-V6

Chipset: Intel H61

Socket: Intel Socket 1155

CPU Supports: Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron Processors

FSB: 1066 / 1333 / 1600MHz

Memory: Dual Channel DDR3 1066 / 1333 / 1600MHz

Dimm: 2 x Memory Slots (Max. Capacity of System Memory 16GB)

Onboard Graphics: Integrated Graphics Processor

PCI/PCI-E Slots

1 x PCI Express x 16 Slot

1 x PCI Express x1 Slot

SATA: 3 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x 4 & SATA3)

IDE: N/A

Audio: Realtek 662 On Board, Supports 6-Channel Audio-Out

LAN: Realtek RTL8111 1000Mbps Ethernet On Board

Back Panel I/Os

1 x HDMI Port

1 x D-Sub (VGA) Port

6 x USB 2.0 Ports

1 x RJ-45 LAN Port

3 x HD Audio Jacks (Line in / Front Speaker / Microphone)

ON-Board Pinheaders/Connectors

1 x USB 2.0 Pinheader (Supports Additional 2 USB 2.0s)

1 x USB 3.0 Pinheader (supports Additional 2 USB 2.0s)

1 x Front Panel Audio Pinheader

1 x LPC DEBUG

BIOS: UEFI BIOS

Form Factor: Micro-ATX (17 x 21.5cm)

Mounting: 4 Mounting Holes

Accessories

1 x SATA II cable

1 x I/O Rear Panel

1 x User Manual

1 x Driver CD
