Antec AX20 mATX Chassis

Overview:

ANTEC CHASSIS AX20 MATX

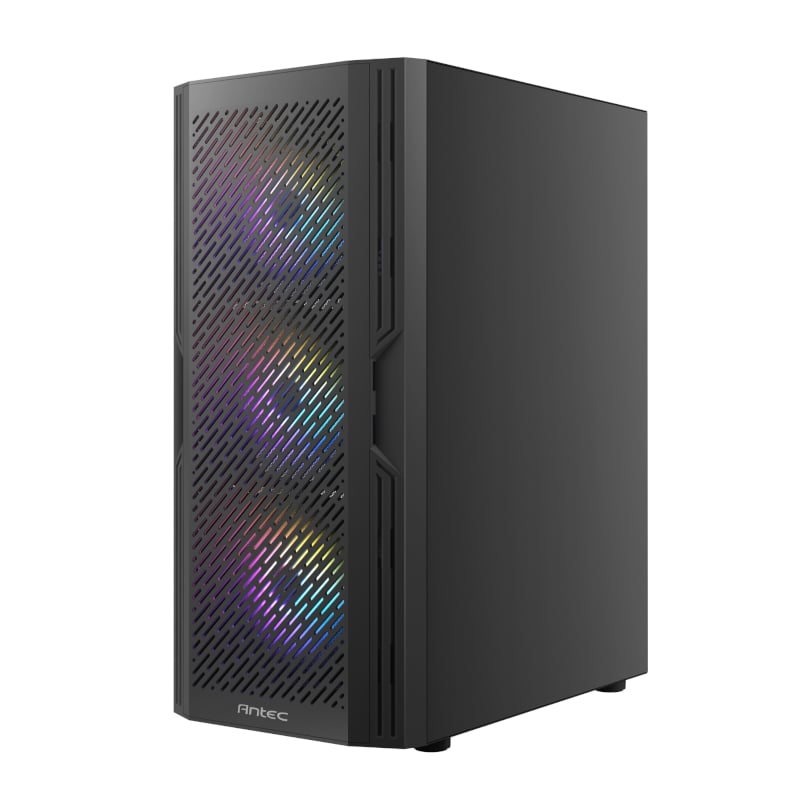

The Antec AX20 is a stunning combination of innovative design and tremendous cooling capabilities. The Antec AX20 is built to achieve great heat dissipation, ensuring your system stays cool under any workload, thanks to its slanted bar air intake design and dense mesh structure.

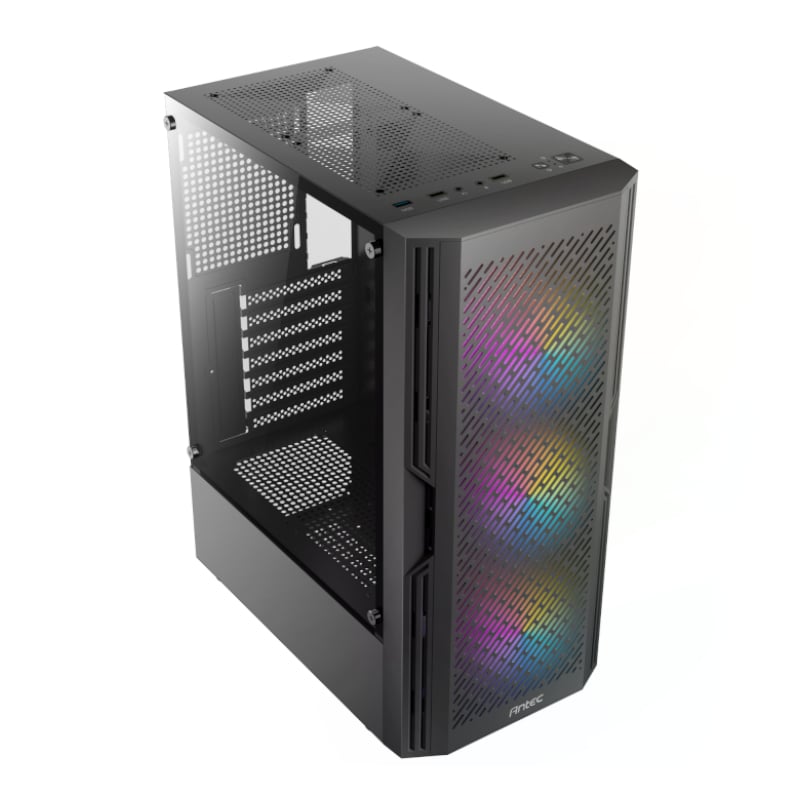

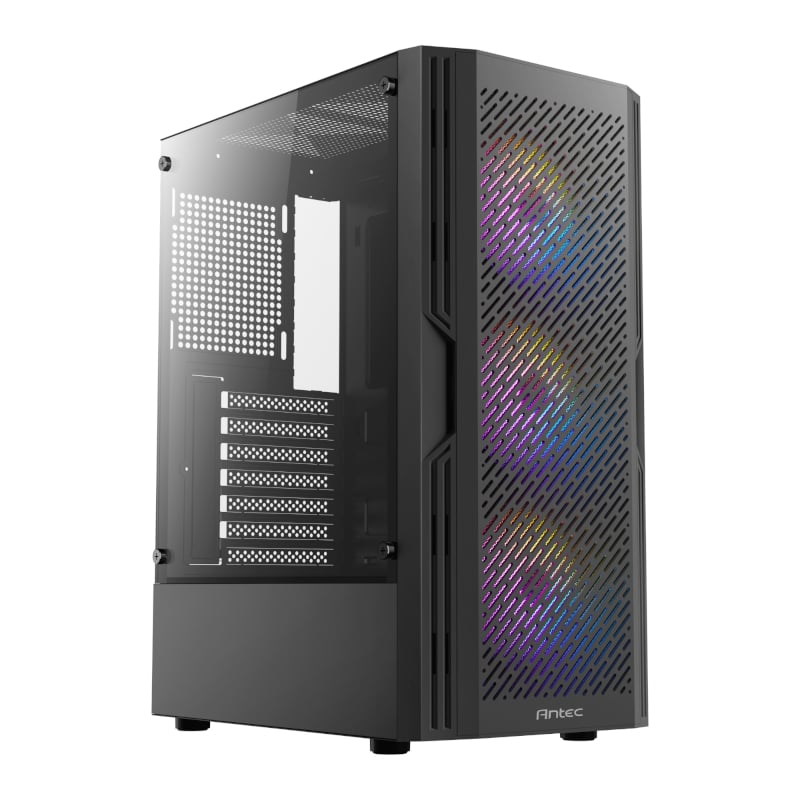

The half-view tempered glass side panel provides a touch of class, allowing you to proudly display your gaming setup without any obstructions. The AX20 is designed for versatility, since it can take up to 8 x 120mm fans at the same time, providing a wide range of cooling solutions to fit your needs.

With the Antec AX20s dense mesh structure, you can unleash a torrent of airflow while successfully minimising dust buildup and maximising cooling performance. Massive air intakes strategically placed in the front, top, and bottom generate different airflow routes, promoting a constant supply of fresh air throughout your system.

Features:

• High-Airflow and Ventilation
• Tempered Side Glass Panel
• Slanted Bar Air Intake Design
• 3x 120mm ARGB Front Fans
• Powerful Heat Dissipation
• ATX Motherboard Support

WHATS IN THE BOX:

• Antec AX20 ATX ARGB Mid-Tower Gaming Chassis - Black x1

Specifications:

Product Code	AX20
main spec
Dimensions	358 x 207 x 451mm (DWH)
Form Factor	Mid Tower
Materials	Steel+Plastic
Mainboard Support	ATX, Micro-ATX, ITX
Front Access & Controls	Power, Reset, 2 x USB 2.0, 1 XUSB 3.0, MIC / HD-AUDIO
Side Panel	Tempered glass
Drive Bays
Expansion Slots	7
3.5" /2.5"	2 / 1
2.5"	2
Fan Support
Front	3 x 120mm / 2 x 140mm
Top	2 x 120mm
Power supply	2 x 120mm
Rear	1 x 120mm
Included Fan(s)	3 x 120 RGB fixed model fans in front (AX20)
	3 x 120 RGB fixed mode fans in front + 1 x 120 RGB fixed mode fan in rear (AX20 Elite)
Radiator Support
Front	120 / 140 / 240 / 280mm
Clearance
Max GPU Length	≤ 270mm
Max CPU Cooler Height	≤ 155mm
Max PSU Length	≤ 170mm(with HDD)
	≤ 295mm(without HDD)
Miscellaneous
Dust Filter	Front
Net Weight	4 Kg (AX20) / 4.12 Kg (AX20 Elite)
Gross Weight	4.71 Kg (AX20) / 4.83 Kg (AX20 Elite)
UPC#	0-761345-10060-1 (AX20)
	0-761345-10066-3 (AX20 Elite)
