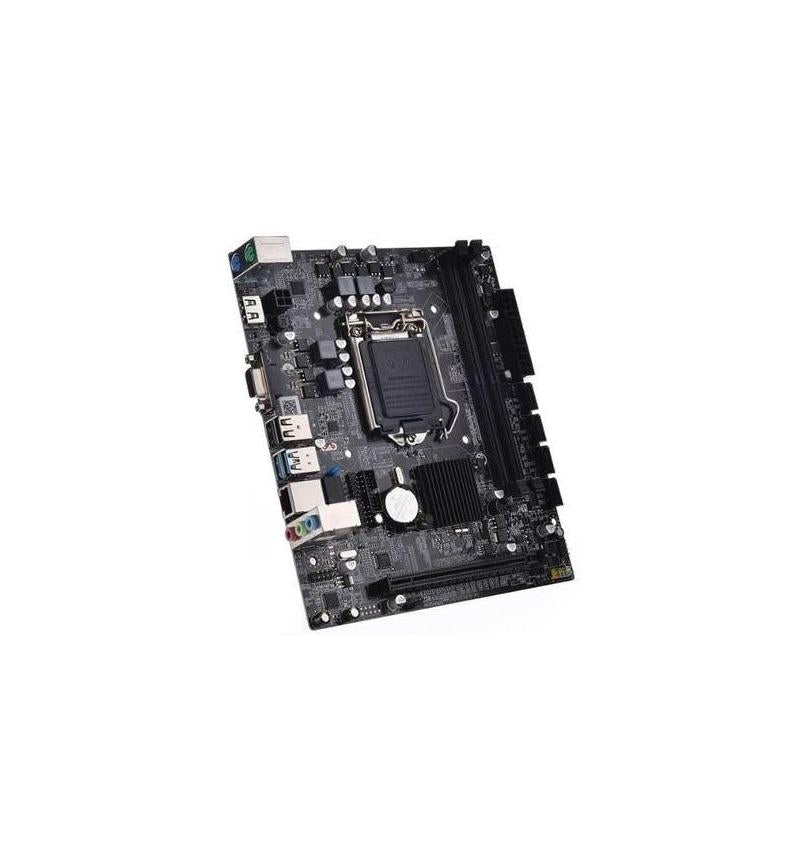

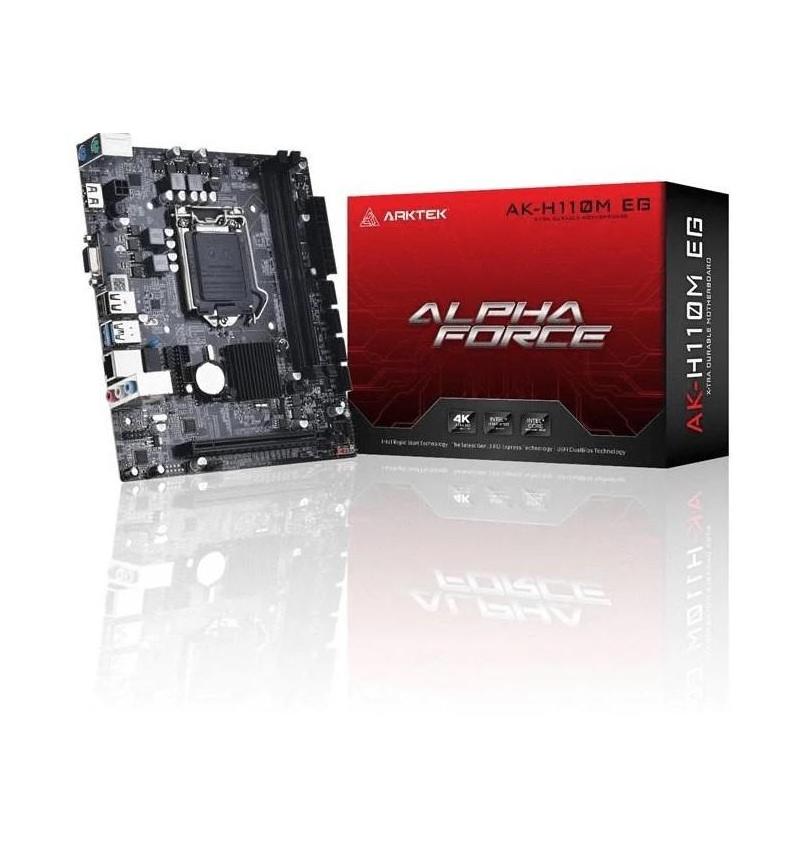

ARKTEK H110 LGA1151 DDR4 MB - AK-H110M EG

Intel H110

Model: AK-H110M EG

Socket: LGA1151

Chipset: Intel H110

Memory Support: Dual Channel DDR4

Spec

Intel: H110

CPU Support: CPU Support: Intel Socket 1151 for 6th/7th/8th/9th Generation

Core i7 /Core i5/Core i3/Pentium /Celeron Processors Supports Intel 14 nm CPU

Chipset: Intel H110 Chipset

On-Board Graphics: Integrated Graphics Processor-Intel HD Graphics support

Memory: 2 DDR4 2400/2666/3000MHz Memory Max. up to 32GB each

DIMM: 2 x Memory Slots

LAN: On board Realtek RTL8105E 10/100 Mbps adaptive Network Card Interface

Audio: Chip integrated by Realtek 661 On board, Supports 6-channel Audio-Out

SATA: 3x SATA, 1xM.2 Supports PCIE+SATA Mode

Real I/O

1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x VGA Port 1 x HDMI Port

2 x USB 2.0 Port 2 x USB 3.0 Port 1 x LAN Jack 3 x Audio Jack

Internal I/O: 2 x USB 2.0 Header Supports additional 3 USB 2.0 Ports

1 x USB 3.0 Header Supports additional 2 USB 3.0 Ports 1 x Front Panel Audio Header

Expansion Slots: 1 x PCI Express x16 slot

Form Factor: Micro-ATX (22 x 17 cm)

OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)

Mounting: 4 Mounting Holes

Accessories

1 x SATA Cable

1 x I/O Backboard

1 x User Manual

1 x Driver CD
