ARKTEK H81M-EL Motherboard (LGA1150, H81 Chipset, Micro-ATX)
ARKTEK H81M-EL Motherboard (LGA1150, H81 Chipset, Micro-ATX)
ARKTEK
In stock
Couldn't load pickup availability
SKU:AK-H81M EL
Share
The ARKTEK H81M-EL Motherboard delivers reliable Intel 4th Generation performance for desktop builds using the LGA1150 socket. Its Micro-ATX design provides efficient layout and expansion options suitable for home or office systems.
CPU Support
Supports Intel Core i7 / i5 / i3 / Pentium / Celeron Processors (LGA1150 Package)
Compatible with Intel 4th Generation Multi-Core Processors
Chipset
Intel H81 Chipset
Memory
Dual Channel DDR3 1066 / 1333 / 1600 MHz
Supports Non-ECC, Unbuffered Memory
2 × DIMM Slots (Up to 8 GB each)
Graphics
Integrated Graphics Processor (Intel HD Graphics Support)
Networking
Realtek RTL8105E / 8111E Gigabit LAN (100 / 1000 Mbps)
Audio
Realtek 662 6-Channel HD Audio Codec
Front Panel Audio-Out / Mic-In Jack
Storage
3 × SATA Ports / 1 × M.2 Slot (Supports NVMe + NGFF Drives)

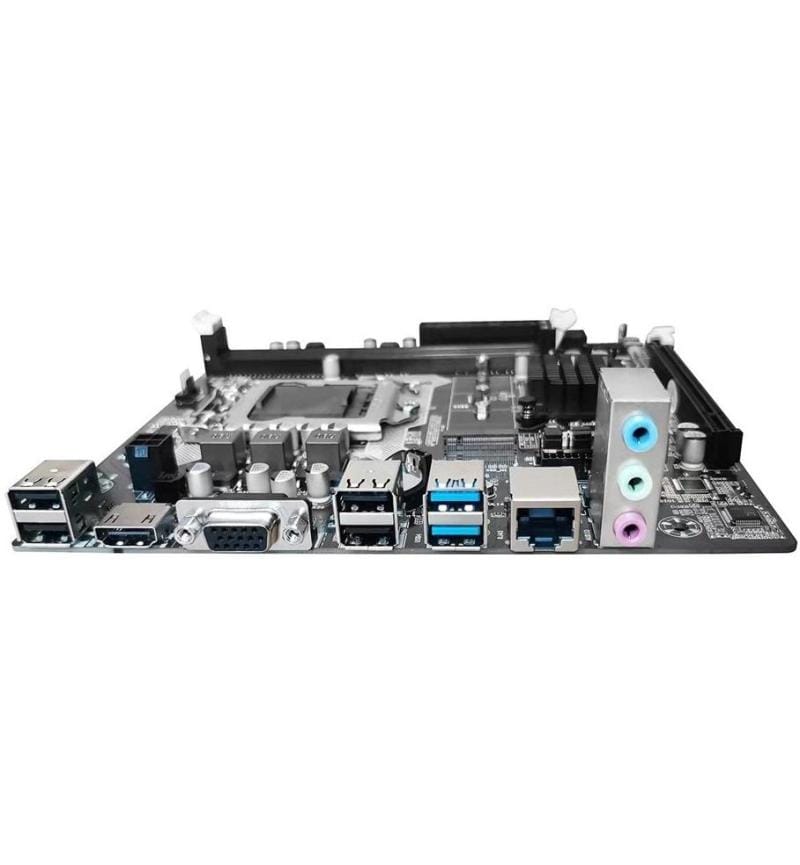

Back Panel I/O
1 × VGA Port / 1 × HDMI Port
4 × USB 2.0 / 2 × USB 3.0 Ports
1 × LAN Jack / 3 × Audio Jacks (Line In / Out / Mic In)
Internal Connectors
1 × USB 2.0 Pin Header (Supports 2 Additional USB 2.0 Ports)
1 × Front Panel Audio Header
Expansion Slots
1 × PCI Express x16 Slot
BIOS
UEFI BIOS
Form Factor
Micro-ATX (19 × 17 cm) — 6 Mounting Holes
Included Accessories
1 × SATA Cable | 1 × I/O Backplate | 1 × User Manual | 1 × Driver CD
