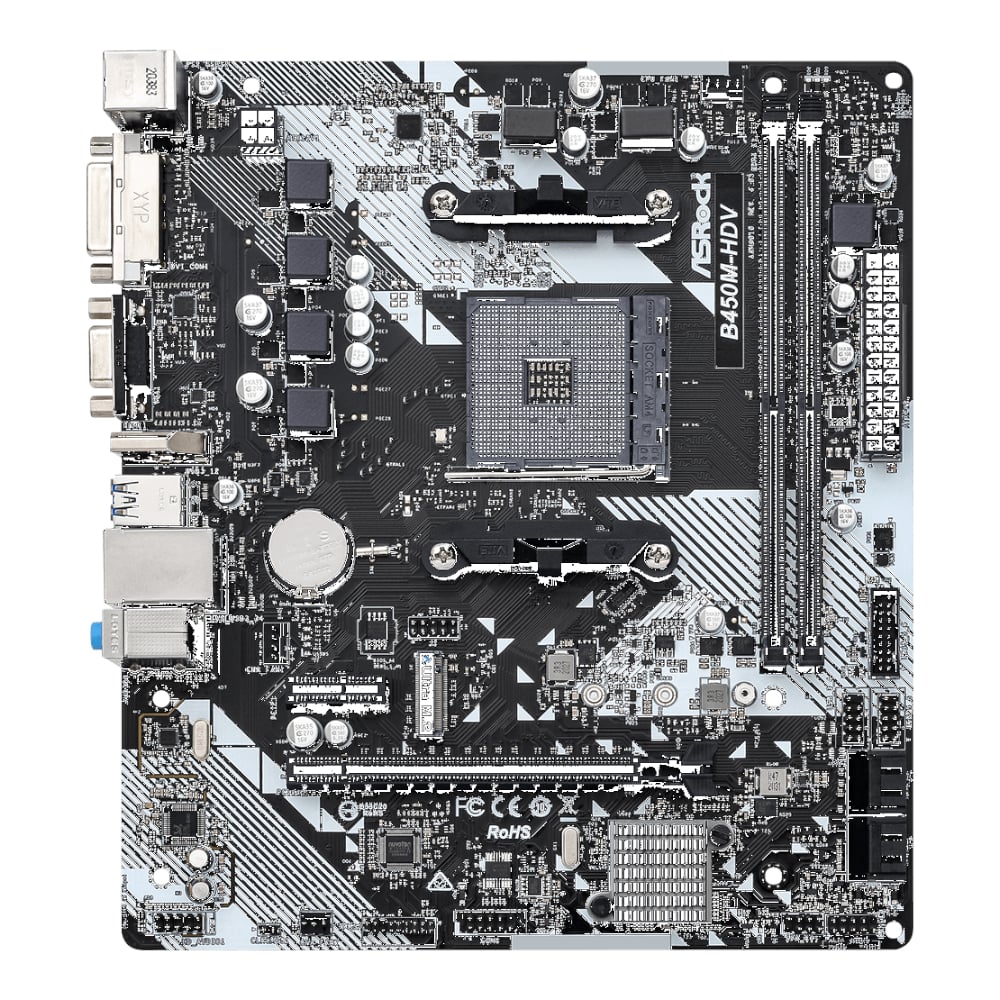

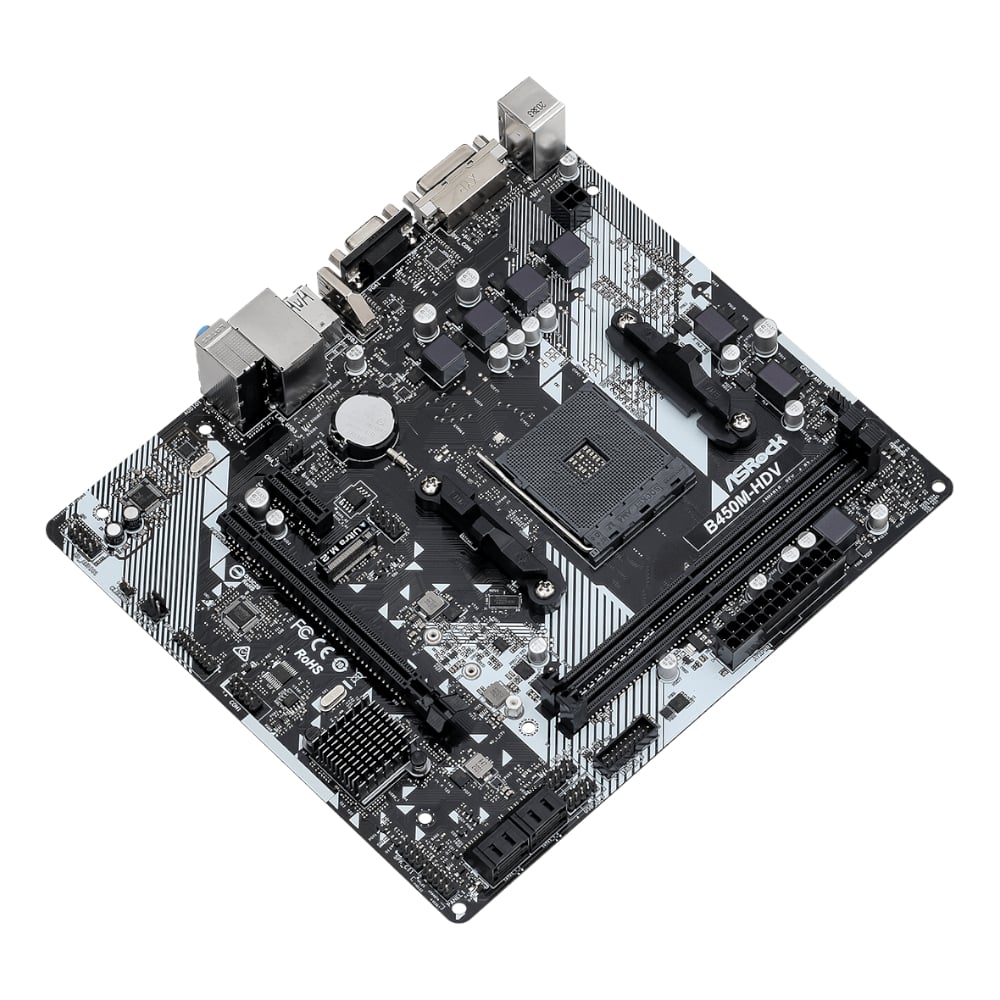

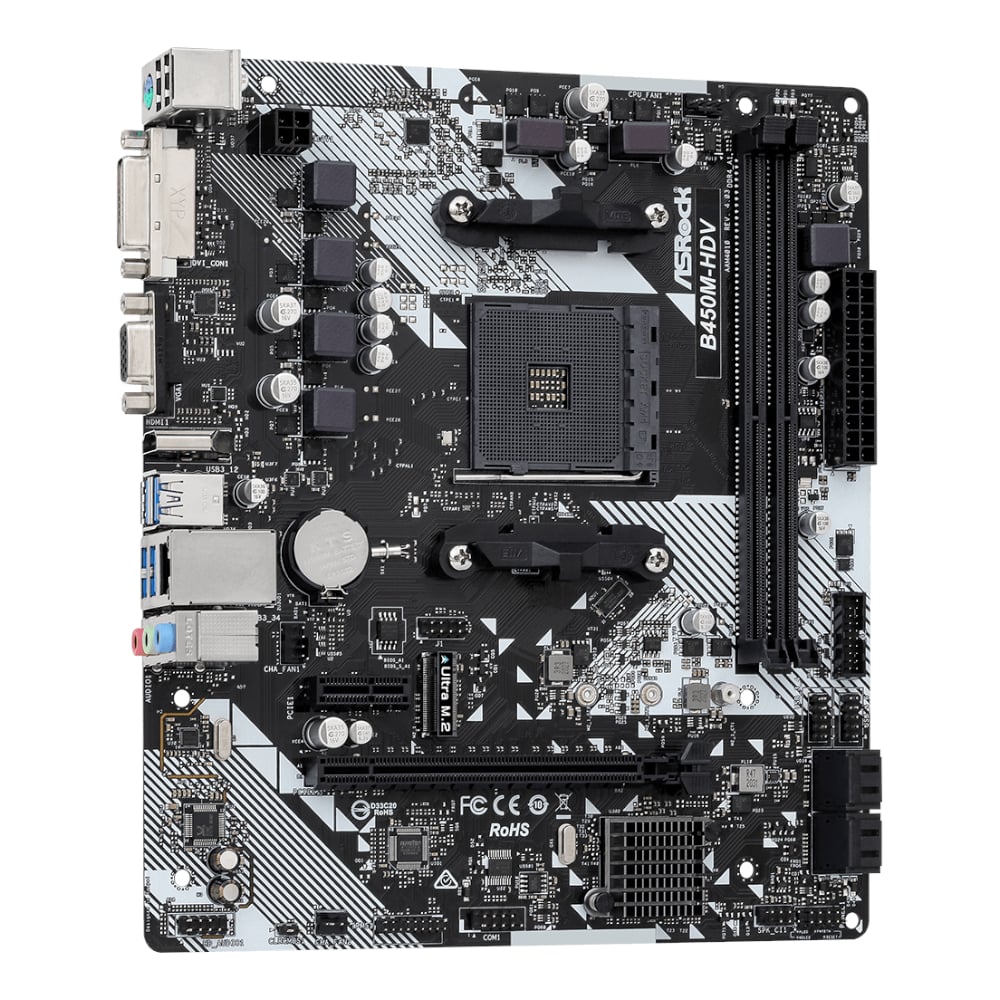

The ASRock B450M-HDV R4.0 AMD AM4 m-ATX Motherboard is a versatile and cost-effective choice for building a high-performance PC. Designed to support AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, and 5000 Desktop Processors, it offers broad compatibility, ensuring a smooth experience for gaming, multitasking, and productivity. With a 6 Power Phase Design, it provides stable power delivery for reliable performance under demanding conditions.

This motherboard is equipped with 2 DIMM slots, supporting DDR4 memory up to 3200+(OC) for faster data processing and efficient multitasking. It also features a PCIe 3.0 x16 slot and Ultra M.2 interface with support for PCIe Gen3 x4 and SATA3, enabling ultra-fast data transfer speeds for modern NVMe SSDs. With 4 SATA3 ports and RAID 0, 1, and 10 support, you can configure flexible and reliable storage solutions to meet your needs.

For multimedia and connectivity, the B450M-HDV R4.0 offers a wide array of options, including HDMI, DVI-D, and D-Sub outputs, providing flexibility for multi-monitor setups. Enjoy immersive audio with 7.1-channel HD sound powered by Realtek ALC887/897 Audio Codec, while Realtek Gigabit LAN ensures stable and high-speed internet connectivity. With 6 USB 3.1 Gen1 ports (2 front, 4 rear), this m-ATX motherboard combines functionality, reliability, and performance in a compact design, making it ideal for both first-time builders and seasoned enthusiasts.

FEATURES:

• Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
• 2 DIMMs, Supports DDR4 3200+(OC)*
• 1 PCIe 3.0 x16, 1 PCIe 2.0 x1

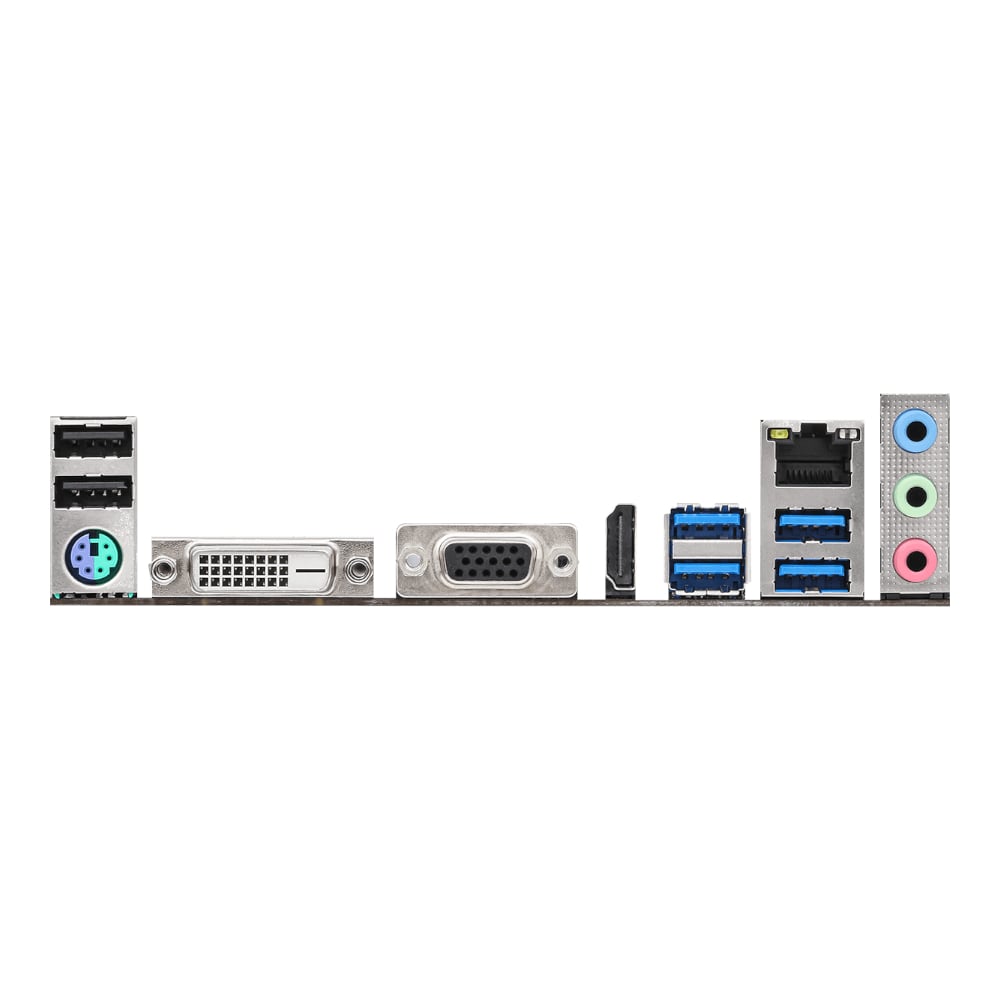

• Graphics Output : HDMI, DVI-D, D-Sub
• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)*
• 6 USB 3.1 Gen1 (2 Front, 4 Rear)
• Realtek Gigabit LAN

SPECIFICATIONS:

• Socket: AMD Socket AM4
• CPU (Max Support): Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors | 6 Power Phase design
• Chipset: AMD Promontory B450
• DDR4 Memory: DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 64
• PCI-E x16: 1
• PCI-E GEN: Gen3
• PCI-E x1: 1
• SATAIII: 4
• M.2 Slot: 1
• TPM (Header): 1
• RAID: 0/1/10
• LAN: Realtek RTL8111H Gigabit LAN
• USB 3.1 ports (Front): 1(Gen 1, Type A)
• USB 3.1 ports (Rear): 4(Gen 1, Type A)
• USB 2.0 ports (Front): 2(Type A)
• USB 2.0 ports (Rear): 2(Type A)
• Serial Ports(Front): 1
• Audio ports (Rear): Realtek ALC887/897 Audio Codec (7.1 CH HD Audio)
• D-Sub Port: 1
• DVI-D Port: 1
• HDMI: 1
• DirectX: 12
• Form Factor: M-ATX
• Operating System: Support for Windows® 10 64-bit / 11 64-bit

WHAT’S IN THE BOX:

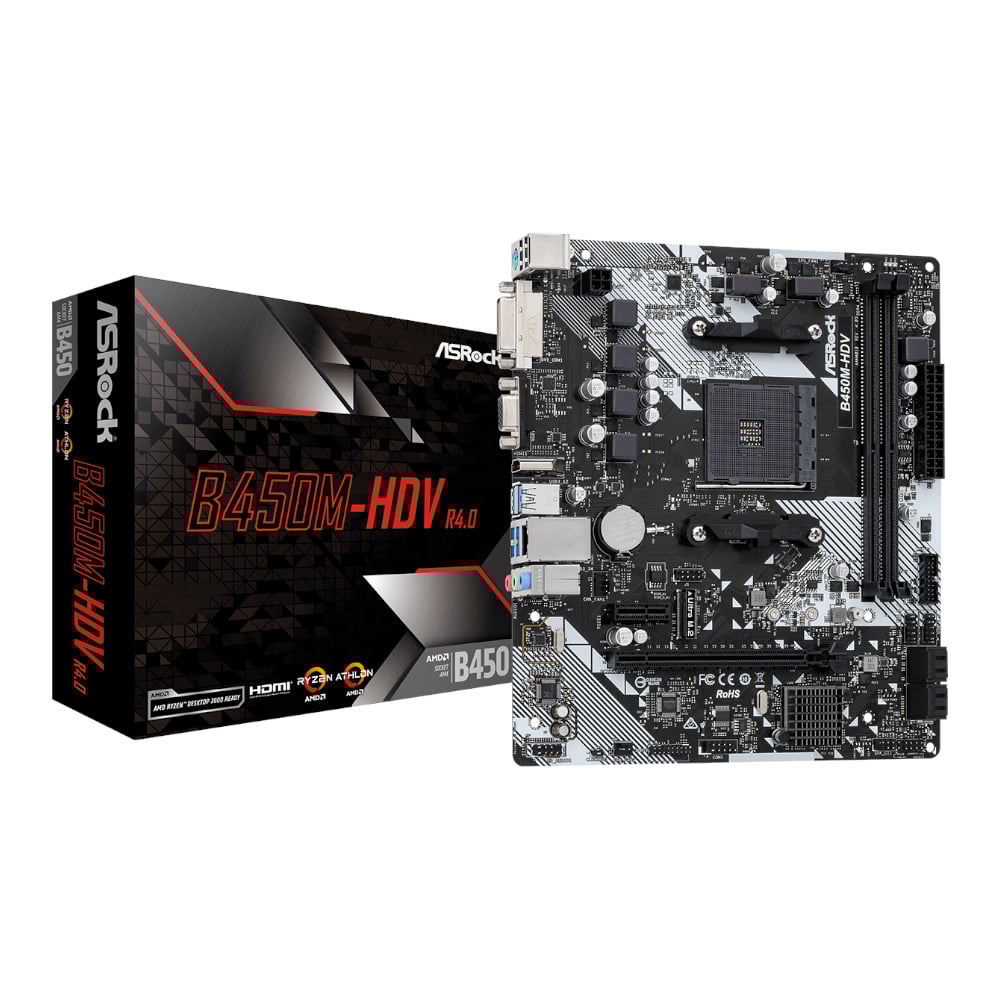

• ASRock B450M-HDV R4.0 AMD AM4 m-ATX Motherboard – Black x1
