SC-AX580-4Do

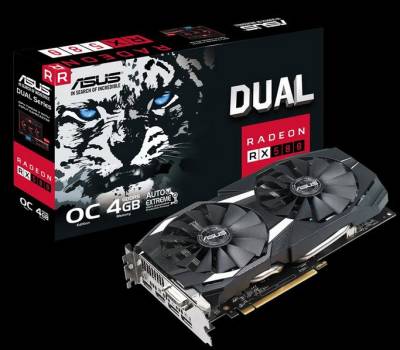

ASUS Dual series Radeon RX 580 OC edition 4GB GDDR5 256bit 4 channel Graphics Card

Asus DUAL-RX580-o4G - 4Gb Oc - dual fan design (iP5X-certified dust resistant) + back-sided heatsink + 10mm copper heatpipes, support 0dB silent mode, DIGI+ VRM with 8-phase Super Alloy Power ii, GPU Tweak II with Xsplit Gamecaster, support LiquidVR + XConnect (external GPU solution for NB), Freesync ready, XDMA CrossFire (no external connectors required), TrueAudio HDMi with dedicated PAP (Programmable Audio Pipeline) to reduce CPU load, 14nm, 256bit 4 channel DDR5, 32RoPs, 224Gb/sec memory transfer; 6175 GigaFLoPs, 193GT/s texture fill rate, 2304 stream processors, 144texture unit, core clock: 1360/1380mhz; memory: 7000mhz, 1xDVi+2xHDMI+2xDisplayPort (up to 6x displays via display port MST hub) - require 8pin power connector - full retail pack

Features:

The Sweet Spot Performance
ASUS Dual series RX 580 comes equipped with Patented Wing-Blade Fans for max air flow with 105% more air pressure. The fans are IP5X dust-resistant for improved reliability and a longer lifespan. While exclusive Auto-Extreme Technology with Super Alloy Power II components for superior stability. GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking and instant gameplay streaming.

I/O Ports Highlight

• 1 x Native DVI-D
• 2 x Native HDMI 2.0
• 2 x Native Display Port

Game in Complete Silence
Innovative 0dB technology stops the fan completely when the GPU temperature remains below 55°C, letting you enjoy light gaming in complete silence.

Longer Fan Lifespan
The fans in ASUS Dual series of RX 580 graphics cards are certified under the International Protection Marking (IP code) as IP5X dust resistant for improved reliability and a longer lifespan. This stringent certification process ensures ASUS Dual series of RX 580 graphics cards provide optimal fan performance, even under severe conditions.

Max Air Flow with 105% More Air Pressure
Patented wing-blade fans delivers maximum air flow and 105% greater static pressure over the heat sink, while operating at an up to 3X quieter volume than reference cards.

Premium quality and best reliability
ASUS graphics cards are produced using Auto-Extreme technology, an industry-first 100% automated production process, and feature premium Super Alloy Power II components that enhance efficiency, reduce power loss, decrease component buzzing under load, and lower thermal temperatures for unsurpassed quality and reliability.

Enjoy immersive virtual reality experience
ASUS Dual series of RX 580 graphics cards have two HDMI ports for connecting a VR device and display at the same time, so you can enjoy immersive virtual reality experiences anytime without having to swap cables.

GPU Tweak II: Intuitive performance tweaking
Adjust clock speeds, voltages and fan speeds to tune your graphics card(s) exactly how you want to. Select between GPU Tweak’s Standard or Advanced modes depending on your level of experience. Choose Standard Mode to access Intuitive options for easy tweaking. This is great for those learning how to tune graphics cards. Alternatively try out the Advanced Mode for sophisticated and extensive tuning options that enable complete control for experienced overclockers.

XSplitGamecaster: Instant gameplay streaming
Now, you can also launch XSplit Gamecaster to bring up the in-game overlay and start streaming or recording your gameplay with the click of a button. You can also try the in-game annotations and video editor features to enhance your game stream experience.

AMD Eyefinity Technology
Extend the view across up to 4 displays to immerse yourself in gameplay and entertainment.

AMD CrossFire Technology
Double the graphics available for your gaming with AMD CrossFire technology without any strings attached.

AMD FreeSync Technology
Puts an end to choppy gameplay and broken frames with fluid, artifact- free performance at virtually any framerate.

Microsoft DirectX® 12
Brings new levels of visual realism to gaming on the PC and get top-notch performance.

Specifications:

Specifications
Product Code	SC-AX580-4Do
Graphics Engine	AMD Radeon RX 580
OpenGL	OpenGL 4.5
Video Memory	GDDR5 4GB
Engine Clock	1380 MHz (OC Mode)
	1360 MHz (Gaming Mode)
Stream Processors	2304
Memory Clock	7000 MHz
Memory Interface	256-bit
Resolution	Digital Max Resolution:7680x4320
Interface	DVI Output : Yes x 1 (Native) (DVI-D)
	HDMI Output : Yes x 2 (Native) (HDMI 2.0)
	Display Port : Yes x 2 (Native) (Regular DP)
	HDCP Support : Yes
Power Connectors	1 x 8-pin
Software	ASUS GPU Tweak II & Driver
Dimensions	9.53 " x 5.07 " x 1.49 " Inch
	24.2 x 12.89 x3.8 Centimeter
