ASUS RT-AC58U

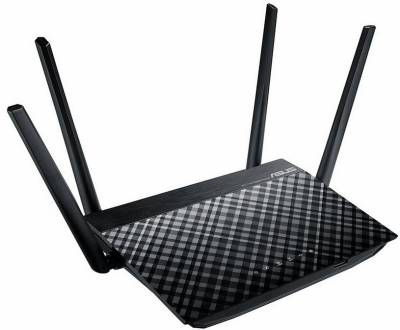

Asus RT-AC58U Dualband Wireless-AC1300 Gigabit Router

ASUS RT-AC58U AC1300 Dual Band Gigabit WiFi Router with MU-MIMO, AiMesh for Mesh WiFi system, Up to 867 Mbps WiFi 5 (802.11ac), Up to 600 Mbps WiFi 4 (802.11n), 4x external antenna, 2.4GHz / 5 GHz operating Frequency, 1x RJ45 Gigabit BaseT for WAN, 4x RJ45 Gigabit BaseT for LAN, 1x USB 2.0, Concurrent AC1300 for faster WiFi speeds., USB 2.0 Port allows you to connect USB disk for quick File sharing, 802.11 AC beamforming

Overview:

AC1300 Dual Band Gigabit WiFi Router with MU-MIMO, AiMesh for mesh wifi system and Parental Controls for smooth streaming 4K videos from Youtube and Netflix

Features:

• AiMesh Supported - Connect to other compatible ASUS routers to create a powerful and flexible whole-home Wi-Fi network
• Concurrent AC1300 for faster WiFi speeds.
• 4 Gigabit LAN ports provide extensive connectivity and 1 USB 2.0 port allows you to connect USB disk for quick file sharing.
• ASUSWRT dashboard for easy router setup and management.
• Intuitive ASUS Router App lets you control your network anywhere at your fingertips.
• 802.11 AC Beamforming and four high-performance antennas optimize your Wi-Fi coverage.

Dual-band connectivity for compatibility and performance
RT-AC58U V3 has a total combined bandwidth of up to 1267Mbps. You can perform basic tasks like web browsing and file downloading on the 2.4GHz band, while simultaneously allowing multiple devices to stream in 4K UHD videos or support online gaming and other bandwidth-demanding applications smoothly on the clearer 5GHz band.

Extensive Connectivity Options
The RT-AC58U V3 is equipped with four Gigabit LAN ports that can pump up to 4Gbps simultaneously. Smart TVs, game consoles, cable boxes, media players, NAS storage devices and more can now have their own dedicated ports, making the RT-AC58U V3 your home's lag-free media hub.

Hassle-free file sharing - AiDisk
AiDisk enables you to share files in the USB disk through the Internet.You can create your own domain name for the FTP server than share files with your friends.

Powerful Whole-home Wi-Fi System. - The Way You Want.
In most cases, your RT-AC58U V3 can deliver smooth, reliable Wi-Fi to every part of your home. But Wi-Fi coverage can be affected by many factors - room layout, construction materials, and even furnishings. ASUS AiMesh is an innovative new router feature that fixes these problems: it creates a whole-home Wi-Fi network using multiple ASUS routers. AiMesh is powerful, flexible and you can use a mix of ASUS router models - protecting your investment! AiMesh gives you time-saving central control, and seamless roaming capability. AiMesh is Wi-Fi you can rely on - for all your devices, all the time!

• Turn your ASUS routers into whole-home Wi-Fi system with a simple firmware update
• Mix and match preferred models from selected ASUS routers
• Create a Wi-Fi network with either a single SSID or multiple SSIDs
• All router features works across the entire Wi-Fi system

Improved Wi-Fi Range
The four external high performance antennas on RT-AC58U V3 improve the Wi-Fi range and multi-device performance in your home.

Optimized for your On-Line Game and HD Streaming
ASUS QoS ensure inbound and outbound bandwidth on both wired and wireless connections, you could define your online gaming and HD streaming as highest priority, stop all your lagging issues.

ASUS Router APP Control Your Network Anywhere
In your increasingly mobile-enabled life, having control over your network via an app is more important than ever. The new ASUS Router App is built from the ground-up to be both intuitive and robust, allowing you to setup your router, manage network traffic, diagnose connection issues and even update firmware, all without needing to boot up a PC. »

Focus on Your Family
Keep your kids safe when they explore the internet. All the management functions you need in one place and the intuitive interface makes it super easy to view and apply security settings to all the devices owned by individual family members.

VPN server enabled
Easily set up a VPN server to browse the web and access data with encrypted connection - no matter where you are.

Robust control and optimization with ASUSWRT
With the ASUSWRT dashboard UI, setup, monitor, and control network applications all in one intuitive area. With 30-second setup, multi-device detection, and flexible settings, ASUSWRT makes the most of your network performance.

Specifications:

Specifications
Product Code	ASUS RT-AC58U
Model Name	RT-AC58U V3
Network Standard	IEEE 802.11a
	IEEE 802.11b
	IEEE 802.11g
	WiFi 4 (802.11n)
	WiFi 5 (802.11ac)
	IPv4
	IPv6
Data Rate	802.11a : up to 54 Mbps
	802.11b : up to 11 Mbps
	802.11g : up to 54 Mbps
	WiFi 4 (802.11n) : up to 600 Mbps
	WiFi 5 (802.11ac) : up to 867 Mbps
Antenna	External antenna x 4
Transmit/Receive	MIMO technology
	2.4GHz 4x4
	5GHz 2x2
Processor	74Kc MIPS processor with 64 KB I-Cache and 32 KB D-Cache, targeted to operate at up to 775 MHz
Memory	32 MB Flash, 128 MB RAM
Boosts speed	Beamforming: 802.11ac Explicit transmit beamforming (TxBF) and Legacy implicit TxBF for both beamformer and beamformee
	256-QAM high data rate
	20/40/80 MHz bandwidth
Operating Frequency	2.4G Hz / 5 GHz
Ports	RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
	USB 2.0 x 1
Button	WPS Button, Reset Button, Power Button
LED Indicator	Power x 1
	Wi-Fi x 2
	WAN x 1
	USB x 1
	LAN x 4
Power Supply	AC Input : 100V~240V(50~60Hz)
	DC Output : 12 V with max. 1.5 A current
Package content	RT-AC58U V3 Gigabit Wi-Fi Router
	RJ-45 Cable
	Quick Start Guide
	Power Adapter
	Warranty Card
Product Weight (g)	348g
AiMesh	AiMesh : Yes
	Primary AiMesh router : Yes
	AiMesh node : Yes
Router APP	ASUS Router APP : Yes
Game	Game Boost/acceleration : No
	WTFast : No
Alexa	Support Alexa skil : No
IFTTT	Support IFTTT : No
AiProtection	AiProtection : No
	Router Security Assessment : No
	Malicious site blocking : No
	Two-Way IPS : No
	Infected Device Prevention and Blocking, No
Parental Control	Parental Control : Yes
	Parental Control Customized Internet schedule : Yes
Traffic Control	Adaptive QoS : No
	Bandwidth Monitor : No
	Bandwidth limiter : Yes
	Maximum Bandwidth limiter rule : 32
	Traditional QoS : Yes
	Maximum Traditional QoS rule : 32
	Traffic Monitor : Yes
	Real-time traffic monitor : Yes
	Wired Traffic Monitor : Yes
	Wireless Traffic Monitor : Yes
	Traffic Analyzer : No
	Traffic analysis period : Daily, Weekly, Monthly
	Website history : No
Wireless	IPv6 : Yes
	MU-MIMO : No
	Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
	UTF-8 SSID : Yes
	Guest Network : Yes
	Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
	Guest Network Encryption : Open system, WPA/WPA2-Personal
	WPS : Yes
	Wi-Fi MAC address filter : Yes
	Maximum MAC filters : 64
	Wireless scheduler : Yes
	Airtime fairness : Yes
	RADIUS Server : Yes
	Universal beamforming : Yes
	Explicit beamforming : Yes
	IGMP snooping : Yes
WAN	Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
	Dual WAN : No
	WAN Aggregation : No
	3G/4G LTE dongle : Yes
	Android tethering : Yes
	Port forwarding : Yes
	Maximum port forwarding rule : 64
	Port triggering : Yes
	Maximum port triggering rule : 32
	DMZ : Yes
	DDNS : Yes
	NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
LAN	DHCP Server : Yes
	IPTV : Yes
	LAN Link Aggregation : No
	Manually assign IP address : Yes
VPN	VPN Client L2PT : Yes
	VPN Client OVPN : Yes
	VPN Client PPTP : Yes
	VPN Server IPSec : No
	VPN Server OVPN : Yes
	VPN Server PPTP : Yes
	VPN Fusion : No
USB application	File System : FAT16, FAT32, NT3G, ext2, ext3
	3G/4G LTE dongle : Yes
	HDD hibernation : No
	Safely Remove disk : Yes
	AiCloud : No
	Download master : No
	AiDisk : Yes
	Media Server : Yes
	Time Machine : No
	Samba Server : Yes
	FTP Server : Yes
	Shared Folder privileges : Yes
Administration	Operating mode : Accesspoint, Mediabridge, Router
	Operating system : ASUSWRT
	Free OS upgrade : Yes
	Firewall : Yes
	Maximum Firewall keyword filter : 64
	Maximum Firewall network service filter : 32
	Maximum Firewall URL filter : 64
	Wake on LAN (WOL) : Yes
	SSH : Yes
	Configuration backup and restore : Yes
	Diagnosis tools : Yes
	Feedback system : Yes
	System log : Yes
