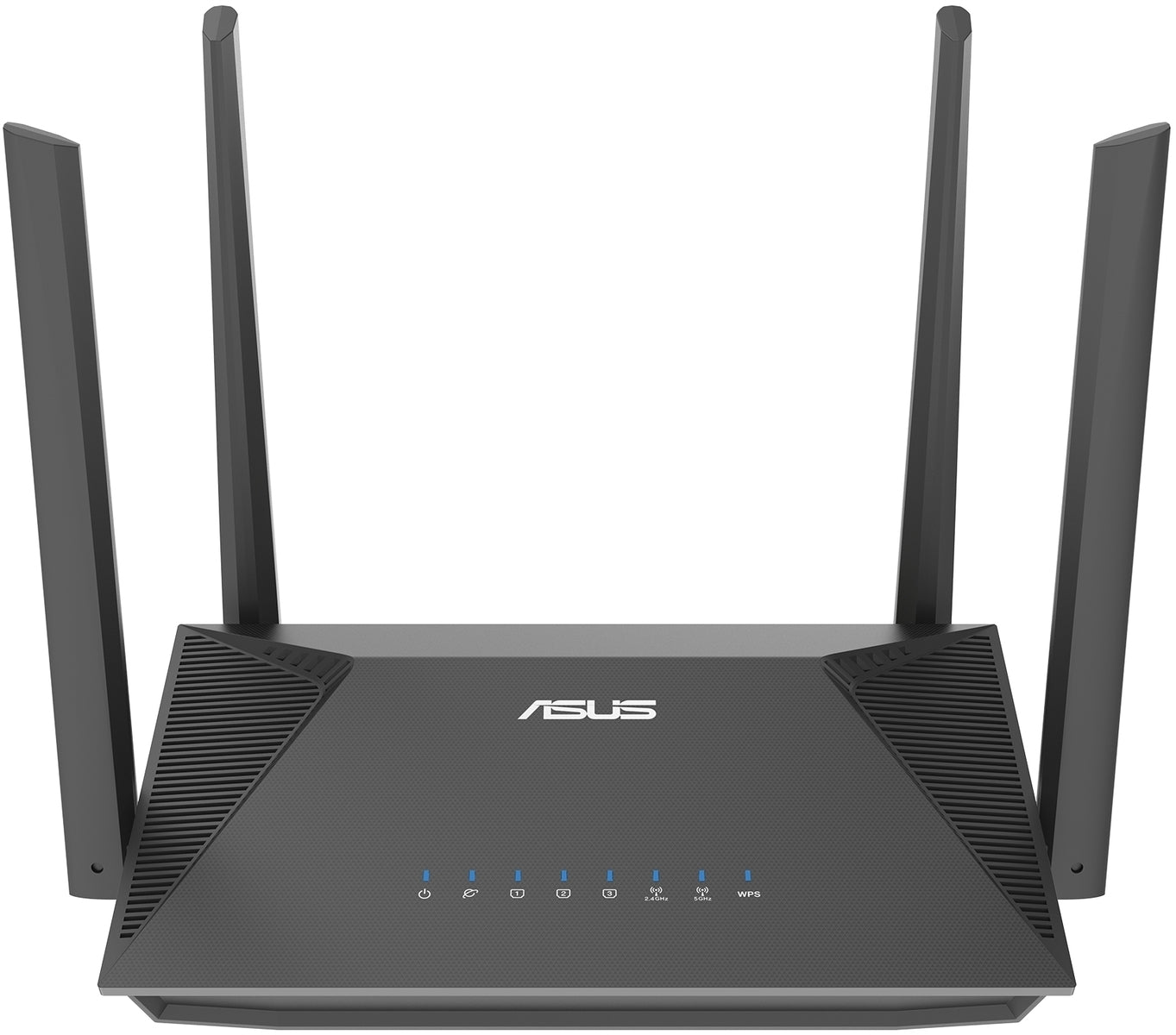

ASUS RT-AX52 AX1800 Dual Band WiFi 6 extendable Router

Overview:

ASUS RT-AX52 (AX1800) Dual Band WiFi 6 Extendable Router, Instant Guard, Parental Control Scheduling, Built-in VPN, AiMesh Compatible

• New-Gen WiFi Standard - Supporting 802.11ax WiFi standard for better efficiency and throughput.
• Ultra-fast WiFi Speed - RT-AX52 supports 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 1800Mbps - 574 Mbps on the 2.4GHz band and 1201 Mbps on the 5GHz band.
• Increase Capacity and Efficiency - Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicating with multiple devices simultaneously
• Easy Extendable Network - Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.

Features:

Built for Smart Home
WiFi 6 (802.11ax) is engineered to cope with multiple devices, providing up to 4X greater network capacity and efficiency.

WiFi that Goes Further
WiFi 6 provides increased WiFi signal range and better coverage of up to 80% farther.

Faster WiFi. Smoother Usage.
With a total networking speed of 1,800Mbps- RT-AX52 is 1.5X faster than 802.11ac 2X2 dual-band routers.

BSS Coloring Boosts Connection Efficiency
WiFi 6 includes a new feature called BSS Coloring that improves WiFi connection efficiency even in crowded environments. When two neighboring routers send traffic on the same channel, your router has to wait until the channel is free. With BSS Coloring, your WiFi 6 router identifies its data with a unique channel tag ('color') that's different from neighboring networks. Your WiFi 6 router can then ignore other-colored signals on the channel and send data immediately. This greatly reduces router waiting times and boosts network efficiency.

*A BSS Coloring-compatible client is needed to enjoy the benefit.

The Latest WPA3 Network Security
The next generation of WiFi security, bringing new capabilities to enhance WiFi protections in personal networks. Building on the widespread adoption of WPA2 over more than a decade, WPA3 adds new features to simplify WiFi security, enable more robust authentication, and deliver increased cryptographic strength for highly sensitive data markets.

More Privacy, Anywhere
Free public WiFi is rarely secure. Thanks to Instant Guard VPN technology, you can surf on public WiFi network safely through RT-AX52 with one-click setup. In addition, it's free!

Flexible and Scalable Wireless Networking
If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!

The Way You Want, Easy Control
Download the latest ASUS Router App. With graphic icons and clear instructions, You can easily start RT-AX52 and setup dedicated functions as you want.

Specifications:

Product Code	ASUS RT-AX52
Item	RT-AX52
Network Standard	IEEE 802.11a
	IEEE 802.11b
	IEEE 802.11g
	WiFi 4 (802.11n)
	WiFi 5 (802.11ac)
	WiFi 6 (802.11ax)
	IPv4
	IPv6
Product Segment	AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
WiFi Data Rate	802.11a : up to 54 Mbps
	802.11b : up to 11 Mbps
	802.11g : up to 54 Mbps
	WiFi 4 (802.11n) : up to 300 Mbps
	WiFi 5 (802.11ac) : up to 867 Mbps
	WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
	WiFi 6 (802.11ax) (5GHz) : up to 1201 Mbps
Antenna	External antenna x 4
Transmit / Receive	2.4GHz 2x2
	5GHz 2x2
Processor	1.3GHz dual-core processor
Memory	128 MB Flash
	256 MB RAM
Boosts Speed	OFDMA (Orthogonal Frequency Division Multiple Access)
	Beamforming: standard-based and universal
	1024-QAM high data rate
	20/40/80 MHz bandwidth
Operating Frequency	2.4GHz / 5GHz
Operating Mode	Access Point, AiMesh Node, Repeater, Router

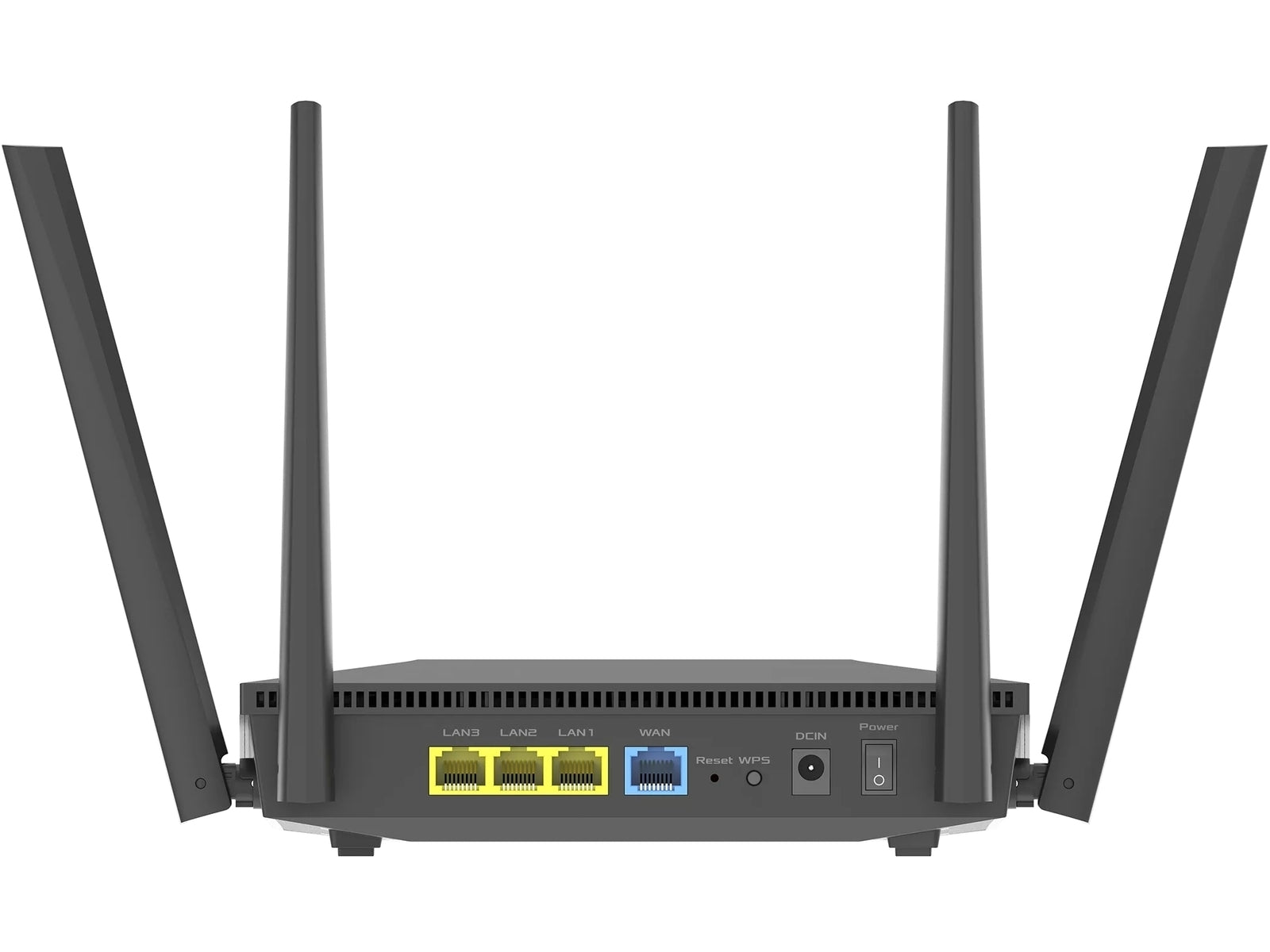

I/O Ports	RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
Buttons	WPS Button, Reset Button, Power Switch
LED Indicator	Power x 1
	WAN x 1
	LAN x 3
	2.4G x 1
	5G x 1
	WPS x 1
Power Supply	AC Input : 110V~240V(50~60Hz)
	DC Output : 12 V with max. 1 A current
Package Content	.RT-AX52
	.RJ45 Ethernet Cable
	.Power Adapter
	.Quick Start Guide
	.Warranty Card
Product Weight (g)	298g
Product Dimensions	192 x 126.3 x 47.5 mm (WxDxH)
AiMesh	AiMesh
	Primary AiMesh Router
	AiMesh Node
Parental Control	"Allow you to block access to unwanted websites and apps."
	Customized Internet Schedule
Guest Network	"The Guest Network provides Internet connection for guests but restricts access to your local network."
Security	Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
	WPS
	SSH
	Firewall
VPN	Instant Guard
	VPN Client L2TP
	VPN Client Open VPN
	VPN Client PPTP
	VPN Server IPSec
	VPN Server Open VPN
	VPN Server PPTP
Traffic Control	Bandwidth Limiter
	Traditional QoS
	Traffic Monitor
	Real-time Traffic Monitor
	Wired Traffic Monitor
	Wireless Traffic Monitor
WAN	Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
	Dual WAN
	Port triggering
	DMZ
	DDNS
LAN	DHCP Server
	IGMP Snooping
	IPTV
	Manually Assign IP Address
	Wake on LAN (WOL)
Wireless	UTF-8 SSID
	WiFi MAC Address Filter
	Wireless Scheduler
	Airtime Fairness
	RADIUS Client
	Universal Beamforming
	Explicit Beamforming
Administration	Configuration Backup and Restore
	Diagnosis tools
	Feedback System
	System Log
