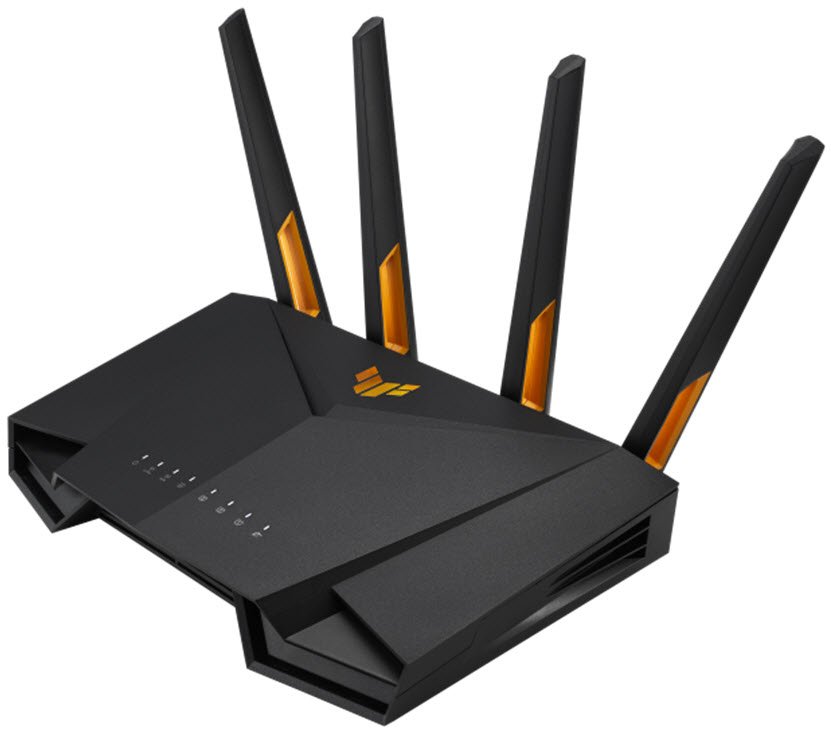

ASUS TUF Gaming AX3000 V2 Dual Band WiFi 6 Gaming Router with Mobile Game Mode

Overview:

TUF Gaming AX3000 V2 is designed to give you stable and fast wireless and wired connections in device-dense environments. It's a router that benefits all your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.

Features:

• Ultrafast WiFi 6 - Enjoy speeds up to 3000 Mbps and 4X network efficiency with OFDMA and 160 MHz channels.
• True Multi-Gigabit wired speeds - Aggregated 2 Gigabit LAN connections, wired 2.5Gbps port and WiFi 6.
• Easy Port Forwarding in 3 Steps - Open NAT makes port forwarding simple, eliminating frustrating and complicated manual configuration.
• ASUS AiMesh Support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers.
• Tested Durability and Stable Operation - TUF Gaming AX3000 V2 is built to be durable and undergoes verified testing to ensure reliable, stable operation.

4X Capacity. 2.5X Faster.*
WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.

True Multi-Gigabit wired speeds
TUF Gaming AX3000 V2 can unlock up to 2Gbps of internet bandwidth by 2.5Gbps port, and aggregating two separate 1Gbps internet services using the LAN1 and LAN2 ports.*

WiFi that Goes Further
We've designed TUF Gaming AX3000 V2 to give you the widest possible WiFi coverage. It uses OFDMA, a new technology in WiFi 6 that allows signals to travel further than they can in WiFi 5. With a 2x2 MIMO configuration, along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX3000 V2 reaches every corner.

Flexible and Scalable Wireless Mesh Networking
If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!

Stable and Durable
TUF Gaming AX3000 V2 is engineered to deliver maximum WiFi performance. The vent location and heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.

One Router. All Game Types.
TUF Gaming AX3000 V2 provides gamers with different features for different game types.

Switch Modes for an Easy Life
Optimize whatever you're doing with different modes, and boost the task at hand!

Simultaneous Gaming and VPN
VPN Fusion lets you run both a VPN and an ordinary internet connection - simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.

Commercial-Grade Security for Your Home
Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices. TUF Gaming AX3000 V2 includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with TUF Gaming AX3000 V2, and you can keep an eye on everything that's happening on your network via the handy mobile app.

More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via TUF Gaming AX3000 V2 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With TUF Gaming AX3000 V2, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!

Specifications:

Product Code	TUF-AX3000_V2
Model Name	TUF-AX3000 V2
Network Standard	IEEE 802.11a
	IEEE 802.11b
	IEEE 802.11g
	WiFi 4 (802.11n)
	WiFi 5 (802.11ac)
	WiFi 6 (802.11ax)
	IPv4
	IPv6
Product Segment	AX3000 ultimate AX performance : 2402 Mbps 574 Mbps
AX technology	Yes
Data Rate	802.11a : up to 54 Mbps
	802.11b : up to 11 Mbps
	802.11g : up to 54 Mbps
	WiFi 5 (802.11ac) (1024QAM) : up to 867 Mbps
	WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
	WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna	External antenna x 4
Transmit/Receive	2.4GHz 2x2
	5GHz 2x2
Processor	1.7GHz quad-core processor
Memory	256 MB Flash
	512 MB RAM
Boosts speed	OFDMA (Orthogonal Frequency Division Multiple Access)
	Beamforming: standard-based and universal
	1024-QAM high data rate
	20/40/80/160 MHz bandwidth
Operating Frequency	2.4GHz / 5GHz
Ports	RJ45 for 2.5 Gigabits BaseT for WAN x 1,
	RJ45 for Gigabits BaseT for LAN x 4,
	USB 3.2 Gen 1 x 1,
Button	WPS Button, Reset Button, Power Button
LED Indicator	Power x 1
	2.4G x 1
	5G x 1
	LAN x 4
	WAN x 1
Power Supply	AC Input : 100V~240V (50~60Hz)
	DC Output : 12 V with max. 1.5 A current
Package content	TUF Gaming AX3000 V2 Dual Band WiFi 6 router
	RJ-45 cable
	Power adapter
	Quick Start Guide
	Warranty card
Product Weight (g)	547 g
AiMesh	AiMesh
	Primary AiMesh router
	AiMesh node
Router APP	ASUS Router APP
Game	Game Boost / Acceleration
Alexa	Support Alexa skill
AiProtection	AiProtection Pro
	AiProtection
	Malicious site blocking
	Two-Way IPS
	Infected Device Prevention and Blocking
Parental Control	Parental Control
	Parental Control Customized Internet schedule
Traffic Control	Adaptive QoS
	Bandwidth Monitor
	Bandwidth limiter
	Maximum Bandwidth limiter rule : 32
	Traditional QoS
	Maximum Traditional QoS rule : 32
	Traffic Monitor
	Real-time traffic monitor
	Wired Traffic Monitor
	Wireless Traffic Monitor
	Traffic Analyzer
	Traffic analysis period : Daily, Weekly, Monthly
	Website history
Wireless	IPv6
	Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
	UTF-8 SSID
	Guest Network
	Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
	Guest Network Connection time limit
	WPS
	WiFi MAC address filter
	Maximum MAC filters : 64
	Wireless scheduler
	Airtime fairness
	RADIUS Client
	Universal beamforming
	Explicit beamforming
WAN	Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
	3G/4G LTE dongle
	Android tethering
	Port forwarding
	Maximum port forwarding rule : 64
	Port triggering
	Maximum port triggering rule : 32
	DMZ
	DDNS
	NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
	Safe browsing
	DNS-over-TLS
LAN	DHCP Server
	IPTV
	LAN Link Aggregation
	Manually assign IP address
	Maximum manually assign IP address rule : 64
VPN	VPN Client L2TP
	VPN Client OVPN
	VPN Client PPTP
	VPN Client WireGuard
	VPN Server IPSec
	VPN Server OVPN
	VPN Server PPTP
	VPN Server WireGuard
	VPN Fusion
USB application	File System : HFS , NTFS, vFAT, ext2, ext3, ext4
	3G/4G LTE dongle
	HDD hibernation
	Safely Remove disk
	AiCloud
	Download master
	AiDisk
	Media Server
	Time Machine
	Samba Server
	FTP Server
	Shared Folder privileges
Administration	Operating mode : Wireless router mode
	Access point mode
	Media bridge mode
	Repeater mode
	AiMesh node mode
	Operating system : ASUSWRT
	Free OS upgrade
	Firewall
	Maximum Firewall keyword filter : 64
	Maximum Firewall network service filter : 32
	Maximum Firewall URL filter : 64
	SSH
	Wake on LAN (WOL)
	Configuration backup and restore
	Diagnosis tools
	Feedback system
	System log
	New Device Connect Notification
	Login Captcha
	Connection Diagnosis
	Security Scan
	Auto Firmware Update
