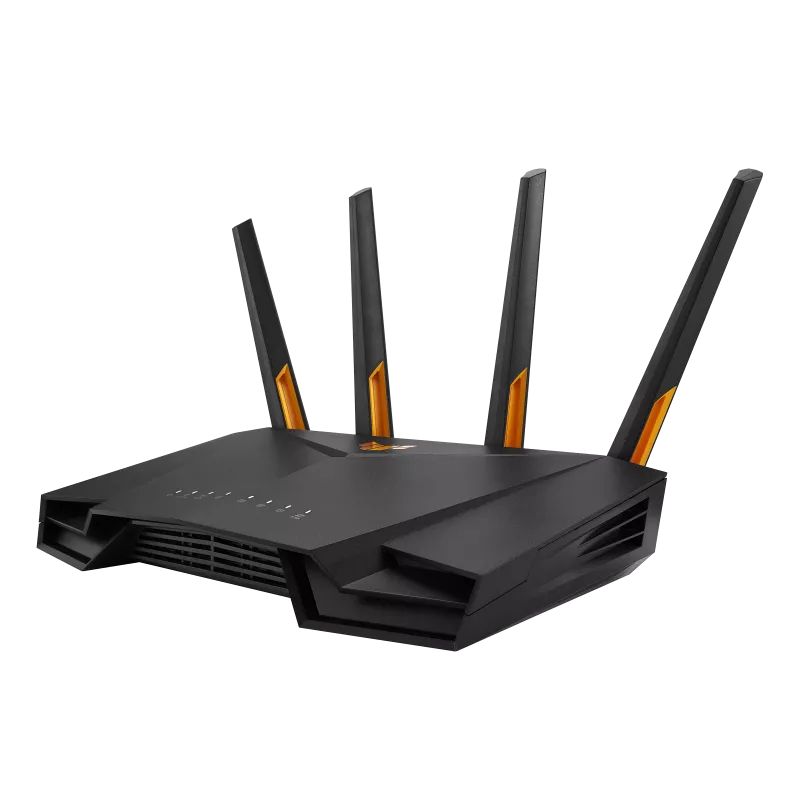

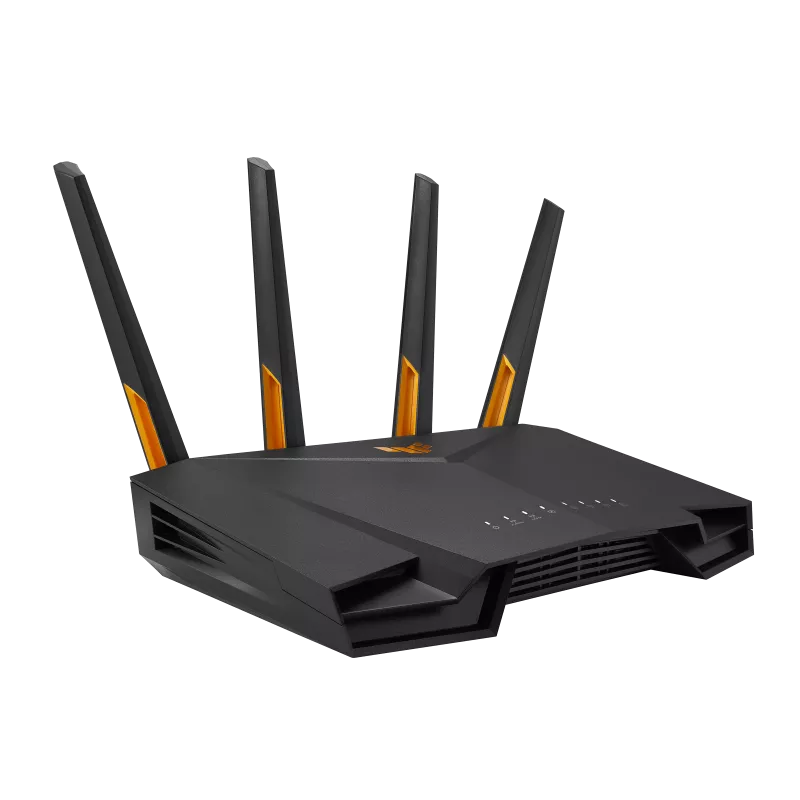

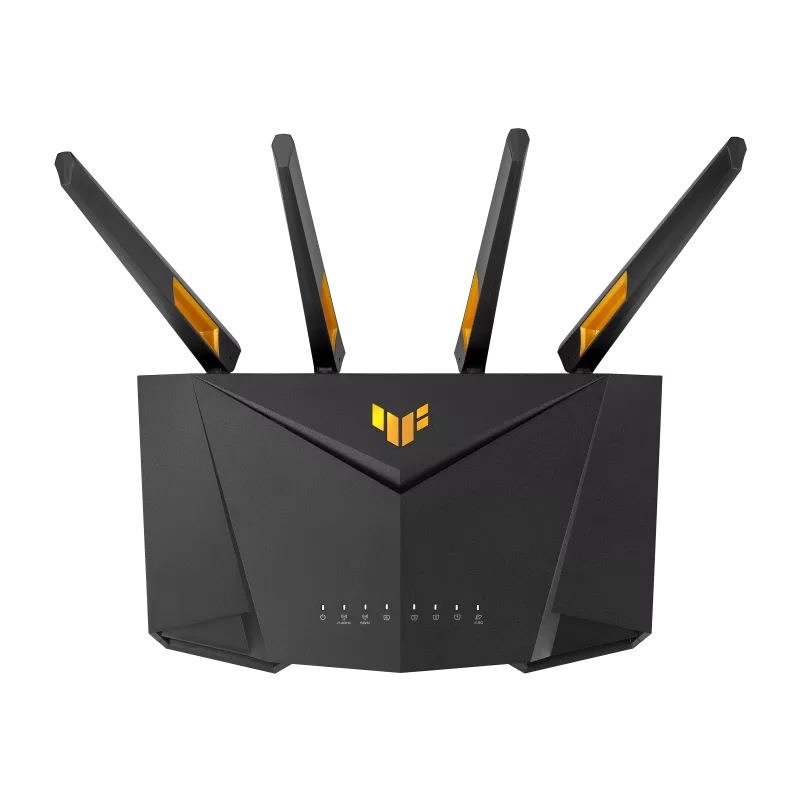

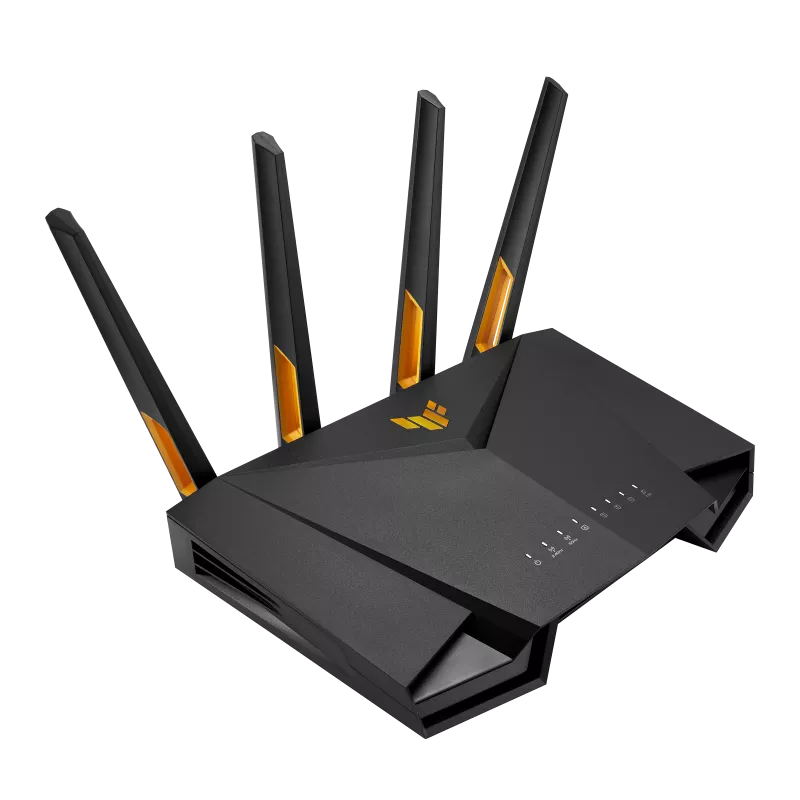

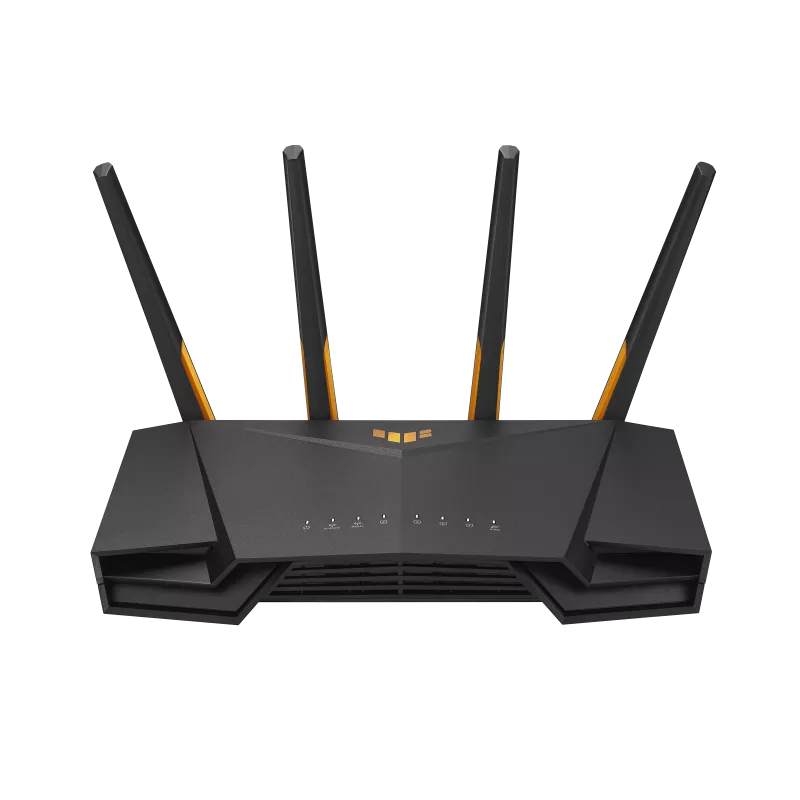

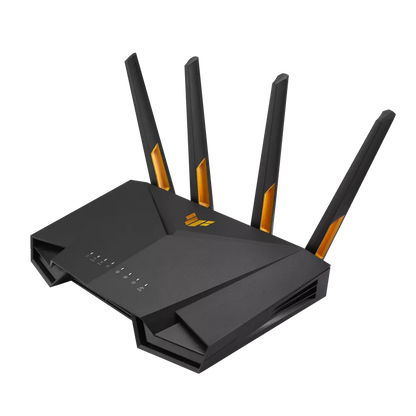

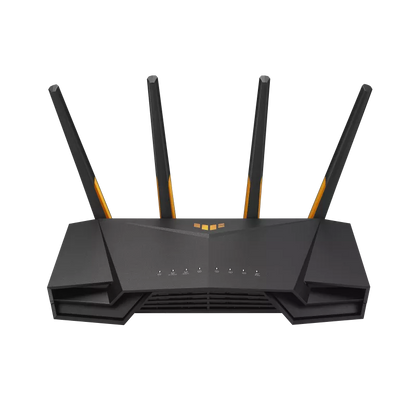

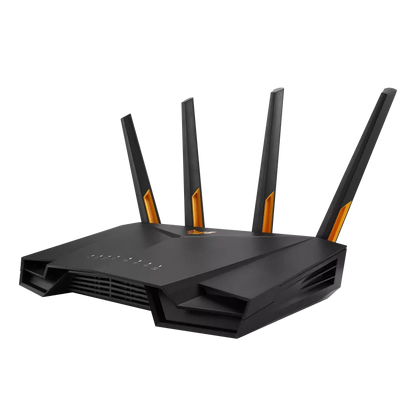

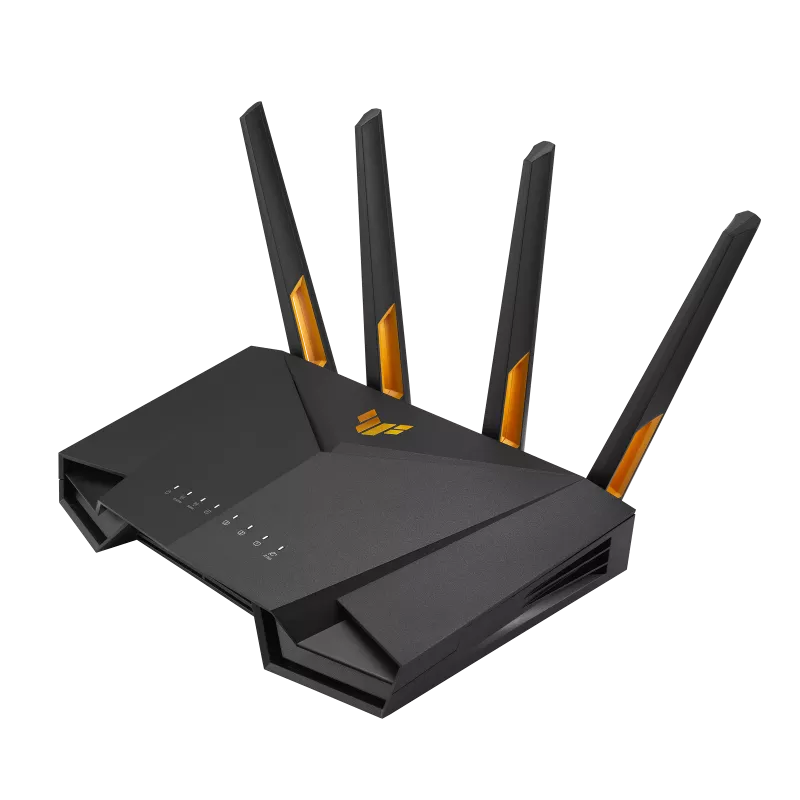

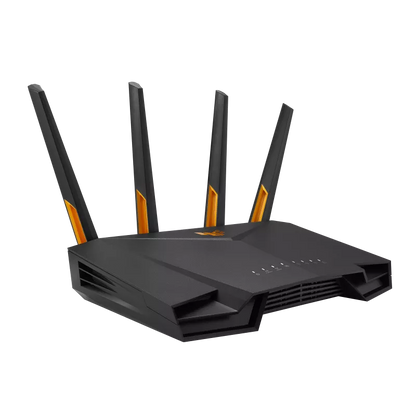

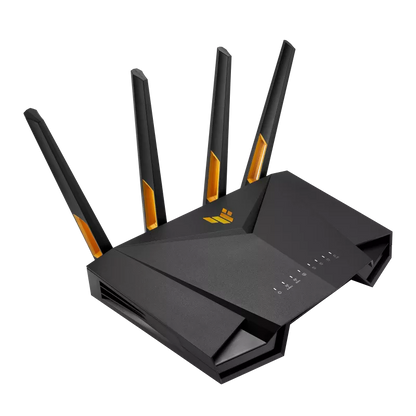

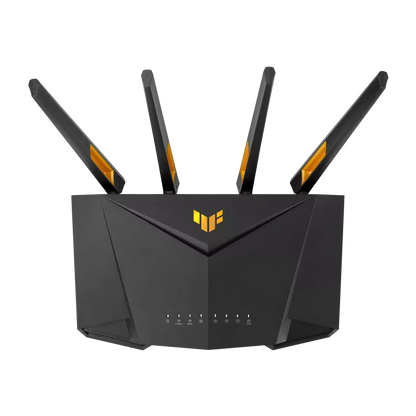

Asus TUF-AX4200 Wireless Router - Dual-band 2.4 GHz and 5GHz Gigabit Ethernet Black 90IG07Q0-MO3100
TUF Gaming AX4200 is designed to give you stable and fast wireless and wired connections in device-dense environments. It's a router that benefits all your devices, from laptops, smartphones, and game consoles right down to all the IoT devices in your home.
4X Capacity. 2X Faster.*
WiFi 6 provides faster wireless speeds with OFDMA, BSS coloring and MU-MIMO technologies, and it also boosts network efficiency, so all your devices get their fair share of WiFi bandwidth. It's perfect for busy networks with lots of different WiFi devices, such as laptops, smartphones and smart home devices.
*The data compares speed of 4X4 WiFi 6 solution on 5GHz band 160MHz channel to speed of 4X4 WiFi 5 solution on 5GHz band 80MHz channel
True Multi-Gigabit Wired Speeds
TUF Gaming AX4200 can unlock up to 2Gbps of internet bandwidth by 2.5Gbps port, and aggregating two separate 1Gbps internet services using the LAN1 and LAN2 ports.*
*Link Aggregation (802.3ad) refers to the combining throughput of multiple devices.
WiFi that Goes Further
We've designed TUF Gaming AX4200 to give you the widest possible WiFi coverage. It uses OFDMA, a new technology in WiFi 6 that allows signals to travel further than they can in WiFi 5. Along with other enhancements like beamforming, which focuses the signal towards each device, TUF Gaming AX4200 reaches every corner.
Flexible and Scalable Wireless Mesh Networking
If you need more coverage or new functions, you can simply add another compatible router to your AiMesh network at any time!
Stable and Durable
TUF Gaming AX4200 is engineered to deliver maximum WiFi performance. The vent location and heatsink design improve cooling for increased stability, and the fixed antennas and metal port protectors increase physical durability.
One Router.
All Game Types.
TUF Gaming AX4200 provides gamers with different features for different game types.
Switch Modes for an Easy Life
Optimize whatever you're doing with different modes, and boost the task at hand!
Simultaneous Gaming and VPN
VPN Fusion lets you run both a VPN and an ordinary internet connection - simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.
Commercial-Grade
Security for Your Home
Home network security is crucial when you have multiple connected devices, and even more so when there are devices without anti-virus capabilities such as IoT devices. TUF Gaming AX4200 includes lifetime free AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. Every device is protected with TUF Gaming AX4200, and you can keep an eye on everything that's happening on your network via the handy mobile app.
More Privacy, Anywhere
Instant Guard gives you one-click secure internet access via TUF Gaming AX4200 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With TUF Gaming AX4200, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!
Specifications
Model | TUF Gaming AX4200 |
Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
Product Segment | AX4200 ultimate AX performance: 574+3603 Mbps |
WiFi Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps |
Antenna | External antenna x 4 |
Transmit / Receive | 2.4GHz 2x2 5GHz 3x3 |
Processor | 2.0 GHz quad-core processor |
Memory | 256 MB Flash 512 MB RAM |
Boosts Speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
Operating Frequency | 2.4GHz / 5GHz |
Operating Mode | Wireless router mode Access point mode Media bridge mode |

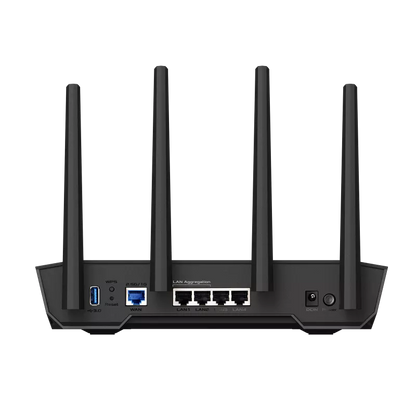

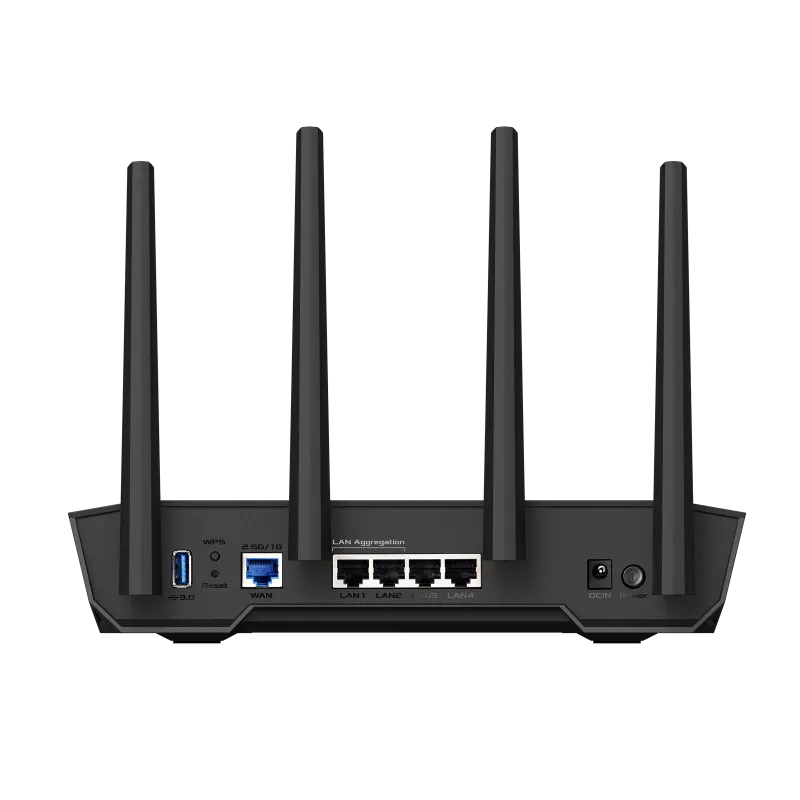

I/O Ports | RJ45 for 2.5 Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, |
Buttons | WPS Button, Reset Button, Power Button |
LED Indicator | Power x 1 2.4G x 1 5G x 1 LAN x 4 WAN x 1 |
Power Supply | AC Input : 100V~240V (50~60Hz) DC Output : 12 V with max. 2.5 A current |
Package Content | TUF Gaming AX4200 Dual Band WiFi 6 router RJ-45 cable Power adapter Quick Start Guide Warranty card |
Product Weight (g) | 547.4 g |
Product Dimensions | 256 x 178 x 186 mm |
AiMesh | AiMesh • Primary AiMesh Router • AiMesh Node |
Game | Game Boost / Acceleration Mobile Game Mode OpenNAT (Game Profile) |
Parental Control | "Allow you to block access to unwanted websites and apps." Safe Browsing Customized Internet Schedule |
Guest Network | "The Guest Network provides Internet connection for guests but restricts access to your local network." • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 Guest Network Connection Time Limit |
Security | AiProtection WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS DNS-over-TLS SSH Security Scan Firewall • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
AiProtection | • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
VPN | VPN Client L2TP VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion |
Traffic Control | Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter -- Maximum Bandwidth Limiter Rule : 32 Traditional QoS -- Maximum Traditional QoS Rule : 32 Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Traffic Analysis Period : Daily, Weekly, Monthly • Website History |
WAN | Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP Dual WAN WAN Aggregation 3G / 4G LTE dongle Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
LAN | DHCP Server IGMP Snooping IPTV LAN Link Aggregation Manually Assign IP Address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
Wireless | UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming |
USB application | File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 Safely Remove Disk AiCloud Download Master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder Privileges |
Administration | Configuration Backup and Restore Diagnosis tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
