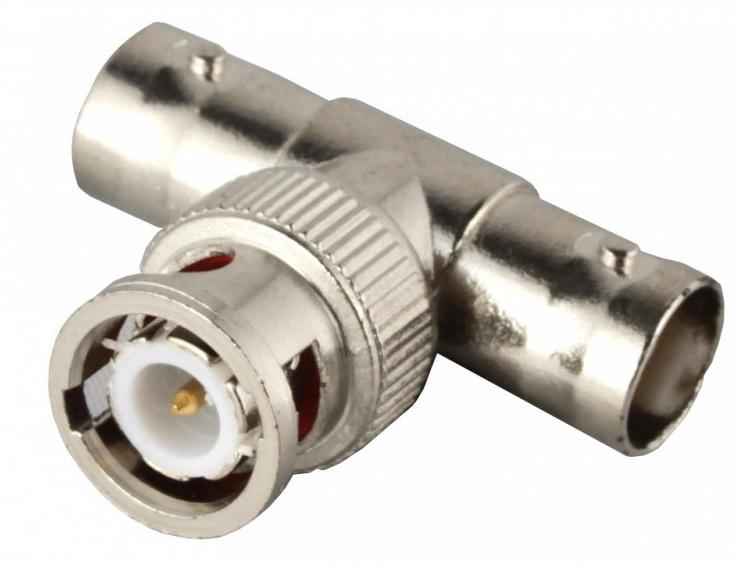

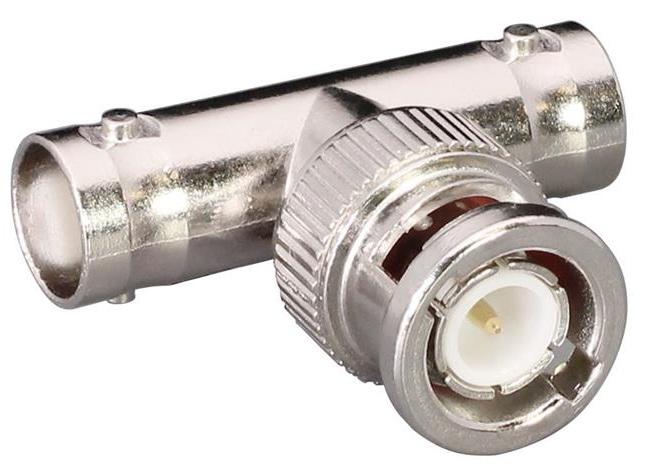

BNC T SHAPED CONNECTOR - BNCT

A BNC T-Shaped Connector (Often Referred To As A T-Piece Or Tee Adapter

Model BNCT) Is A 3-Port, T-Shaped Coaxial Adapter Used To Split Or Combine BNC Signals

The Most Common Configuration Is 1 x BNC Plug (Male) to 2 x BNC Jacks (Female)

Allowing a Single BNC Signal to be Split into two Paths

Specifications

Connector Configuration: 1 x BNC Male (Plug), 2x BNC Female (Jack)

Impedance: Available In Both 50 Ohm (Common For RF / Data) And 75 Ohm (Common For Video / CCTV)

Maximum Frequency: Up To 4 GHz

Voltage Rating: 500 /50 Hz

Coupling Type: Bayonet (Twist-Lock) for quick connection / disconnection

Material

Body: Nickel-Plated

Contacts: Gold-plated Brass

Dielectric: PTFE (Teflon)

Operating Temperature: -40°C to +85°C (Some Rated Up To -65°C - +165°C)

Durability: = 500 Mating Cycles

Key Features and Applications

Versatility: Used To Split A Single Signal Path Into Two, Or To Combine Two Signals

Applications: Ideal For CCTV Security Cameras, DVRs, Ethernet Networks

(Token Ring), RF / Radio Equipment, And Laboratory Test Equipment

Construction: High-Quality, Durable Design

With Some Models Offering Low-Loss Signal Transmission

Orientation: 3-Way, Right-Angled Configuration, Sometimes Labelled As T-Piece
