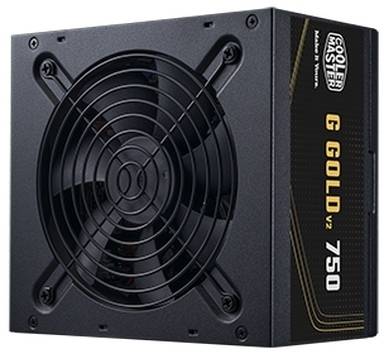

Cooler Master MWE Gold - 750W v2 80 Plus Gold ATX Power Supply unit

Cooler Master MWE Gold - 750W v2 80 Plus Gold ATX Power Supply unit, ATX 12V ver. 3.1, 120mm fan, HDB fan bearing, 1x ATX 24 pin connectors, 2x EPS 8 pin / 4+4 pin connectors, 6x SATA connectors, 3 Peripheral 4 pin connectors, 4x PCI-e 6+2 pin connectors

Overview:

Power Evolved G Gold 750 V2

• ATX 3.1 Support
• High Temperature Resilience
• Quiet HDB Fan
• 80 Plus Gold Certified Efficiency
• Embossed Cable

Features:

ATX 3.1 Support
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, the 750W unit is specially equipped with a 12V-2x6 cable, optimized for ideal compatibility with 40 series GPUs.

Embossed Cable
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.

Quiet HDB Fan
A hydrodynamic bearing fan delivers long-lasting quiet and effective cooling.

Exceptional Efficiency
The G Gold V2 is certified to achieve more than 90% efficiency at typical loads.

High Temperature Resilience
A 40° C operating temperature allows for pushing your machine to the limits.

Specifications:

Product Code	MPE-7502-ACAAG-EU
Model	MPE-7502-ACAAG
ATX Version	ATX 12V Ver. 3.1
PFC	Active PFC
Input Voltage	100-240V
Input Current	10-6A
Input Frequency	50-60Hz
Dimensions (L x W x H)	140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
Fan Size	120mm
Fan Bearing	HDB
Efficiency	=90% @ Typical Load
80 PLUS Rating	80 PLUS Gold
ErP 2014 Lot 3	Yes
Operating Temperature	0-40°C
Power Good Signal	100 - 150 ms
Hold Up Time	>16ms
MTBF	>100,000 Hours
Protections	UVP / OVP / OPP / OTP / SCP
Regulatory	cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)
ATX 24 Pin Connectors	1
EPS 8 Pin / 4+4 Pin Connectors	2
SATA Connectors	6
Peripheral 4 Pin Connectors	3
PCI-e 6+2 Pin Connectors	4
Series	G Series
80 Plus Efficiency	Gold
Modular	Non Modular
Category	500 to 750W
Form Factor	ATX
Watts	750W
