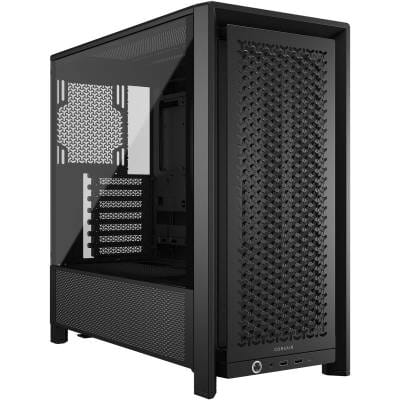

Corsair Frame 4000D Mid-Tower E-ATX PC Case - Black, No fans, 3D-Y Airflow Steel, 430mm Maximum GPU length, 170mm Maximum CPU Cooler height, 220mm Maximum PSU length, 7 horizontal or 3 Vertical Case Expansion slots, Case front IO - 1x USB 3.2 Gen 2 Type-C / 2x USB 3.2 Gen 1 Type-A / 1x Audio In/Out, Tempered Glass Case Window, 2 internal 3.5" Drive bays, 2 internal 2.5" Drive bays, Tempered Glass left side panel
Overview:
FRAME 4000D Modular Mid-Tower PC Case
The CORSAIR FRAME 4000D is a fully-modular and spacious mid-tower PC case featuring InfiniRail Fan Mounting System and compatible with reverse connector motherboards.
Features:
FRAME 4000D
MODULAR MID-TOWER PC CASE
50 SERIES GPUs ARE HERE
Pair a next-gen GPU with quality CORSAIR components for top-shelf performance and no hassles, right out of the box.
ENDLESS MODULAR POSSIBILITIES
The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.
This case evolves with your needs, offering near limitless options for upgrades and changes.
INFINIRAIL FAN MOUNTING SYSTEM
This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.
UP TO 12% MORE AIRFLOW
Engineered for maximum airflow and minimal resistance, the new 3D Y-pattern steel front panel ensures a smooth, unobstructed path for cool air, enhancing overall cooling.
DUAL 360mm RADIATOR SUPPORT
Boost your cooling with three dedicated mounting locations for 360mm radiators - front, roof, and side. You can mount up to 10x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.
GET IN THE FRAME
Ensure your build has excellent airflow with careful cable routing and support for the latest motherboards and graphics cards.
NO VISIBLE CABLES
Fully compatible with reverse-connector motherboards from Asus, MSI, and Gigabyte, allowing for unobstructed airflow and a super-clean build.
SAG-FREE GRAPHICS CARDS
Every CORSAIR FRAME 4000D includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.
CABLE SHROUD
Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.
WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 12x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators.
The FRAME 4000D has more than enough space to accommodate and cool your most ambitious build.
MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
- Power Button
- Headphone / Mic Combo Jack
- 2x USB 3.2 Gen 1 Type-A Ports
- USB 3.2 Gen 2 Type-C Port
Specifications:
| Product Code | CC-9011290-WW
|
| Case Height | 486 |
| Case Length | 490 |
| Case Width | 239 |
| Material | Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm) |
| Color | BLACK |
| Weight | 10.03 |
| Radiator Compatibility | 120mm, 140mm, 240mm, 280mm, 360mm |
| Maximum GPU Length | 430mm |
| Maximum CPU Cooler Height | 170mm |
| Maximum PSU Length | 220mm |
| Compatible Liquid Coolers | H60, H100, H115, H150, NAUTILUS, TITAN |
| Case Size | Mid-Tower |
| Case Power Supply | ATX |
| Case Expansion Slots | 7 Horizontal or 3 Vertical |
| Case Front IO | (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out |
| Case Window | Tempered Glass |
| 2 Year | |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 2 |
| Radiator Support - Top | 360mm, 280mm, 240mm |
| Radiator Support - Front | 360mm, 280mm, 240mm |
| Radiator Support - Bottom | None |
| Radiator Support - Side | 360mm, 280mm, 240mm |
| Radiator Support - Rear | 140mm, 120mm |
| Fan Support - Top | 3x 120mm, 2x 140mm |
| Fan Support - Front | 3x 120mm, 2x 140mm, 2x 200mm |
| Fan Support - Bottom | 2x 120mm |
| Fan Support - Side | 3x 120mm, 2x 140mm |
| Fan Support - Rear | 1x 120mm, 1x 140mm |
| Front IO Motherboard Connections | 1x HD Audio , 1x USB 3.2 Gen1 , 1x USB-3.2 Gen2 Type-E , 1x F_PANEL |
| Reverse Connector Motherboard Support | Yes |
| Included Fans | No Fans Included |
| Dust Filtration | Yes |
| Cable Routing Space | 37mm |
| RapidRoute Included | No |
| Left Side Panel | Tempered Glass |
| Right Side Panel | Steel |
| Vertical Mount Support | Supported (Riser Card Sold Separately) |
