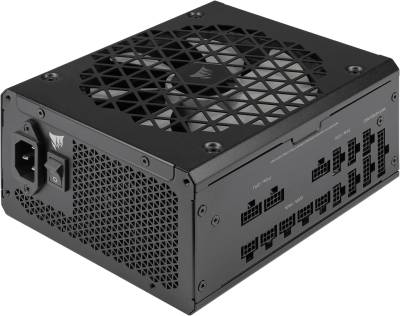

Corsair RM Series RM1000x Shift 80 Plus Gold Fully Modular ATX Power Supply - Side cable Interface

Corsair RM Series RM1000x Shift 80 Plus Gold Fully Modular ATX Power Supply, Side cable Interface, 1x ATX connector, ATX12V version 3, 2x EPS connector, FDB fan bearing technology, 140mm fan size, 7x PCI-e connector, 16x SATA connector, 8x PATA connector

Overview:

RM1000x SHIFT 80 PLUS Gold Fully Modular ATX Power Supply (WW)
CORSAIR RMx SHIFT Series fully modular power supplies boast a revolutionary patent-pending side cable interface to keep all your connections within easy reach, for exceptionally convenient 80 PLUS Gold efficient power.

Features:

RM1000 x POWER SUPPLY
SIDE CONNECTOR INTERFACE FOR EASIER BUILDING

SIDE MOUNTED CONNECTIONS
An innovative patent-pending side PSU panel with modular connections lets you comfortably plug cables into the side face of the PSU, making it easier to connect and manage your cables than ever before.

ATX 3.0 CERTIFIED
The ATX 3.0 standard demands a high level of reliability and power efficiency. While many CORSAIR PSUs meet these requirements, RMx SHIFT Series PSUs are formally certified for ATX 3.0 compliance.

PCIe 5.0 12VHPWR GPU cables included for use with modern graphics cards such as the NVIDIA GeForce RTX 40 Series.

CORSAIR TYPE 5 MICRO-FIT CONNECTORS
Fully modular, CORSAIR Type 5 Gen 1 micro-fit PSU cables, so you only connect the cables your system needs while taking up less space.

140mm FAN WITH ZERO RPM MODE SUPPORT
A low-friction, fluid dynamic bearing 140mm fan with Zero RPM mode support ensures your PSU runs cool while staying virtually silent when not under high load.

80 PLUS GOLD CERTIFIED
Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.

105°C-RATED CAPACITORS
Built with 100% Industrial-grade, 105°C-rated Japanese electrolytic capacitors for unwavering power and reliability.

CASE COMPATIBILITY
The PSU and cables will fit in any PC case that supports ATX PSU format and is at least 210mm (8.3") wide. The PSU must also be accessible from the side when mounted in the case.

Specifications:

Product Code	CP-9020253-WW
ATX Connector	1
ATX12V Version	3
Cable Type	Type 5
Continuous Power W	1000 Watts
EPS Connector	2
Fan Bearing Technology	FDB
Fan Size MM	140mm
MTBF Hours	100,000 hours
PCI E Connector	7
SATA Connector	16
PATA Connector	8
Eighty PLUS Efficiency	Gold
Modern Standby	Yes
Weight	3.9
