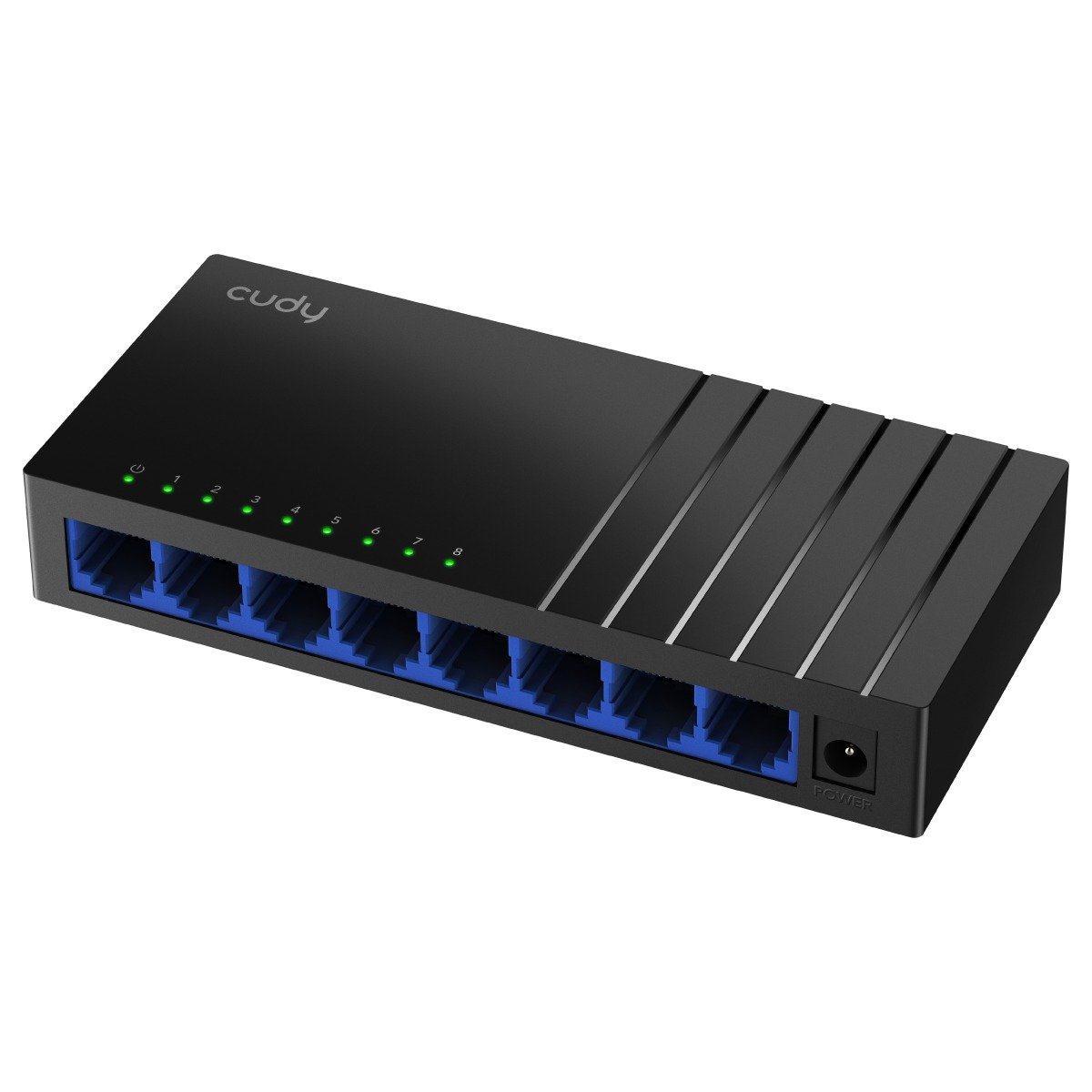

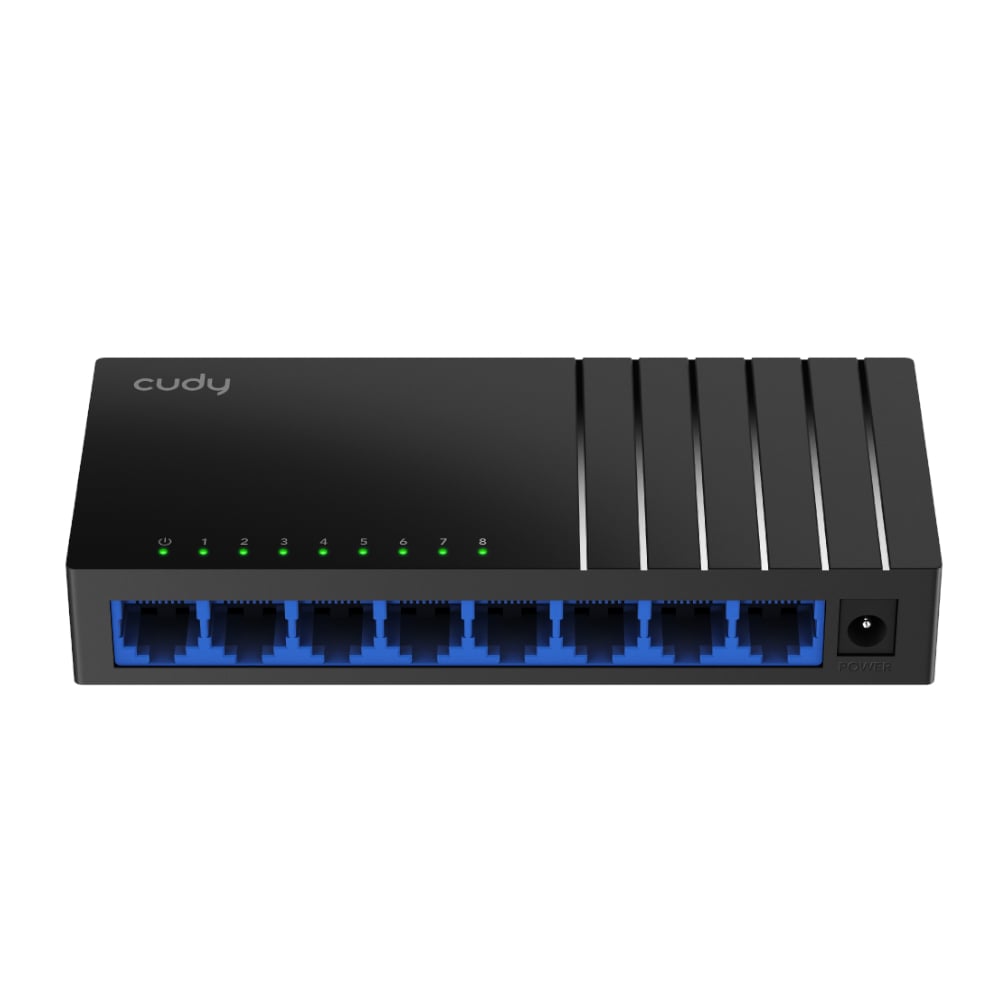

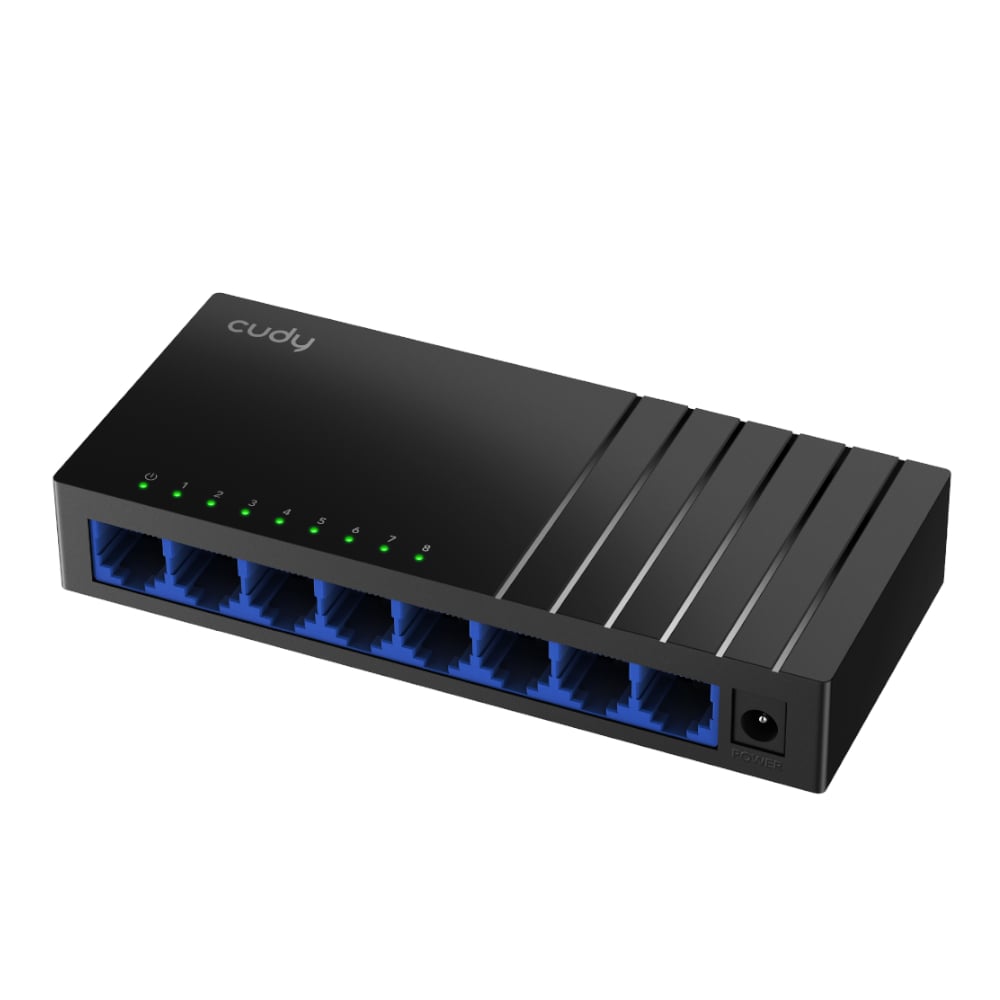

Cudy 8-Port Gigabit Desktop Switch

Features:

• 8× 10/100/1000 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
• Max 170 m transmission distance with Cat 5e or higher standard cables
• IEEE 802.3x flow control and 4 Mbit packet buffer prevents packet loss
• Power saving strategy saves power consumption when ports are idle
• IGMP for high-efficienct multi-cast transmitting
• Loop detection blocks loop automatically, improving reliability
• Desktop and wall-mounting

Super-Fast Gigabit
Eight 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.

Extra Transmission Distance
170 meters of Gigabit transmission adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises.

Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.

Specifications:

Product Code	GS108D
Model	GS108D 4.0
Standards	802.3i 10 Mbps over Twisted Pair
	802.3u 100 Mbps over Twisted Pair
	802.3ab 1 Gbps over Twisted Pair
	802.3x Flow Control
Network Media	10BASE-T: UTP Cat 3,4,5 cable (max 100 m)
	100BASE-Tx: UTP Cat 5, 5e cable (max 100 m)
	1000BASE-T: UTP Cat 5e, 6 or higher standard cable (max 170 m)
Ethernet Ports	8x 10/100/1000 Mbps Ethernet Ports
MAC Address Table	8K
Packet Buffer	4 Mbit
Switching Capacity	16 Gbps
Jumbo Frame	15 KB
Max Forwarding Rate	11.904 Mpps
Power Saving	Saves Power when Ports are Idle
Efficiency and Reliability	IGMP, Loop Detection
LED Indication	Power, Link/Act LEDs
Transfer Method	Store-and-Forward
Installation	Desktop, Wall-Mounting
Casing	ABS Plastic
Power	DC 5 V / 0.55 A
Max Power Consumption	2.75 W
Max Heat Dissipation	9.3775 BTU/h
Dimensions W*D*H	138x61.5x24 mm
	5.43x2.42x0.94 inches
Weight	TBD
Environment	Operating Temperature: 0 °C ~ 40 °C (32 °F ~104 °F)
	Storage Temperature: -40 °C ~ 75 °C (-40 °F ~ 167 °F)
	Operating Humidity: 0% ~ 100% non-condensing
	Storage Humidity: 5% ~ 90% non-condensing

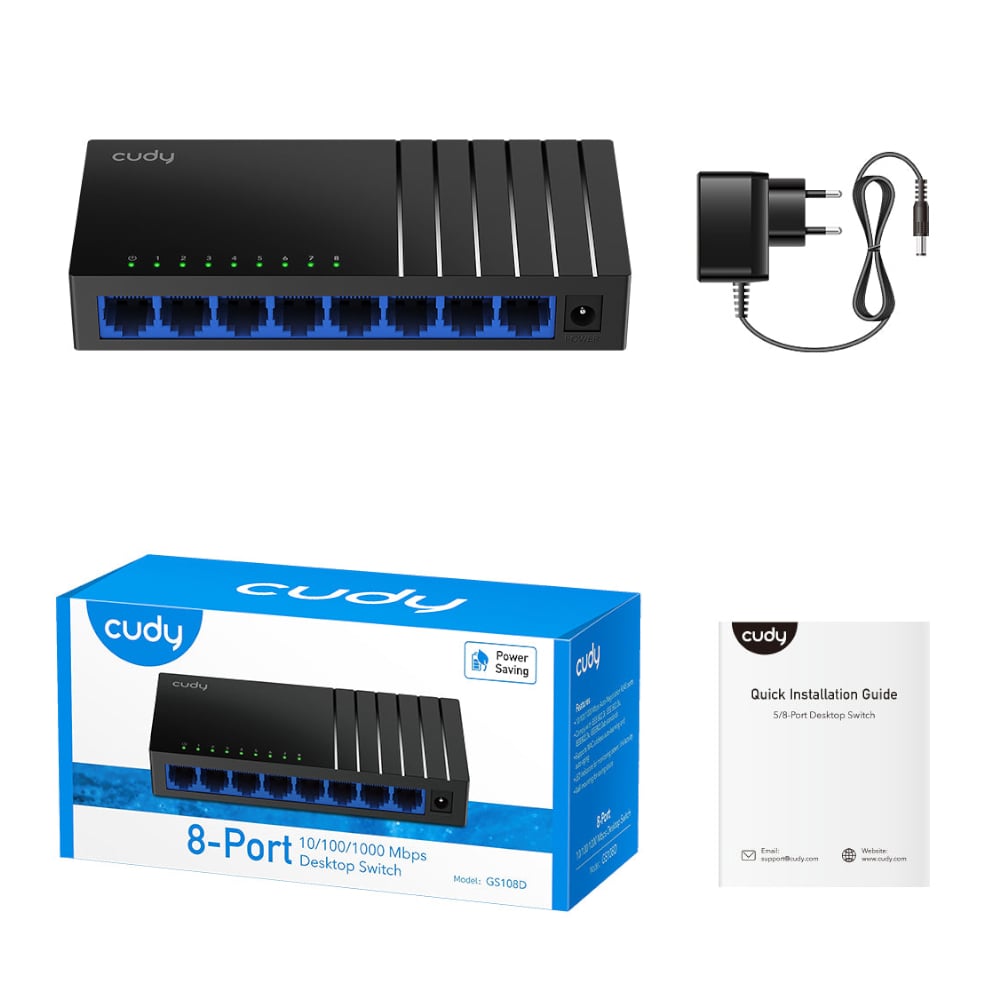

Package Content	1x Switch
	1x Power Adapter
	1x User Manual
