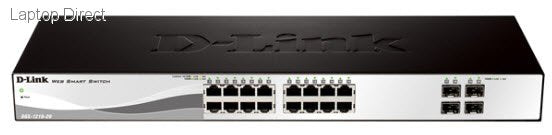

D-Link 16 Port 10/100/1000Mbps Layer 2 Managed Ethernet Switch and 4 x Combo T/SFP Smart Switch - SNMP, Web Management, SmartConsole Utility.

Overview:

The D-Link DGS-1210-20 is the latest Web Smart switch to feature D-Link Green technology. Equipped with sixteen 10/100/1000Mbps ports with four combo 10/100/1000BASE-T/SFP ports, the DGS-1210-20 integrates advanced management and security functions that provide performance and scalability. Management options for the DGS-1210-24 include SNMP, Web Management, SmartConsole Utility, and Compact Command Lines, while also supporting ACL filtering and the D-Link Safeguard Engine. The DGS-1210-20 uses Auto Voice VLAN, ensuring higher priority for voice traffic. The DGS-1210-20 comes in a fanless design with a 19-inch metal case, allowing for quieter operation and guarantees an extended lifetime.

Features:

D-Link Green
D-Link is continuously striving to take the lead in developing innovative technology that allows for power saving without sacrificing operational performance or functionality. The DGS-1210-20 automatically detects the length of connected cables and can adjust power usage by saving energy on shorter cable connections of up to 20 meters. Power saving by link status helps to further save energy by automatically switching ports without a link to sleep mode and thus drastically reducing power consumption. The DGS-1210-20 takes the approach to green IT and power saving one step further by incorporating a special chipset with advanced silicon technology.

Seamless Integration
The DGS-1210-20 comes with Ethernet and Gigabit copper ports capable of connecting to existing Cat.5 twisted-pair cables. Additionally, the last four ports of the DGS-1210-20 combine SFP and copper connectivity into one port and therefore provide a more flexible solution for upstream or downstream server connections via fiber interface. Using the default presets, the administrator can quickly set up without worrying about reconfiguring any settings and providing easy access for the user.

Extensive Layer 2 Features
Equipped with a complete lineup of L2 features, this switch includes IGMP Snooping, Port Mirroring, Spanning Tree and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. Cable Diagnostics is designed for network administrators to quickly examine the quality of the copper cables and determine the type of cable error.

QoS, Bandwidth Control
The DGS-1210-20 is perfect for deployment in a VoIP environment, as they support Auto Voice VLAN and Differentiated Services Code Point (DSCP) QoS for VoIP application. Auto Voice VLAN will automatically place voice traffic from an IP phone to an assigned VLAN and by doing so enhance the VoIP service. With a higher priority and individual VLAN, this feature guarantees the quality and security of VoIP traffic. DSCP marks parts of an IP packet, enabling different levels of service to be assigned for network traffic. With Bandwidth Control, the network administrator can reserve bandwidth for important functions that require a larger bandwidth or might have higher priority.

Secure your Network
The innovative D-Link Safeguard Engine function protects the switches against traffic flooding caused by virus attacks. The switch can also support 802.1X port-based authentication, allowing the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DGS-1210-20 includes ARP Spoofing Prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames on a LAN, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. To prevent ARP Spoofing attacks, the switch uses Packet Control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

Versatile Management
The DGS-1210-20 provides a SmartConsole Utility and a web-based management interface that enable administrators to remotely control their network down to the port level. The SmartConsole easily allows customers to discover multiple D-Link Web Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC and it also provides an easy initial setting of the Smart Switches within the same L2 network segment that are connected to the user’s PC are displayed on screen for instant access. This allows extensive switch configuration settings and basic configuration of discovered devices such as password changes and firmware upgrades. The DGS-1210-20 also supports D-View 6.0 and Compact Command Line Interface (CLI) through Telnet. D-View 6.0 is a Network Management System that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security in a consistent way. CLI management through Telnet makes the adjustment of basic settings such as password changes or firmware and configuration file uploads possible.

Specifications:

Product Code	DGS-1210-20E
Specifications
Number of Ports	16 10/100/1000Mbps
	4 Combo 10/100/1000Base-T/SFP
Network Cables	UTP Cat.5, Cat.5e (100m max)
	EIA/TIA-568 100-ohm STP (100m max)
Full/Half Duplex	Full/half duplex for 10/100Mbps speeds
	Full duplex for Gigabit speed
Media Interface Exchange	Auto MDI/MDI-X adjustment for all twisted-pair ports
Port Standards & Functions	IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
	IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
	IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
	Auto-negotiation
	IEEE 802.3x Flow Control
Performance
Switching Capacity	48Gbps
Maximum 64 bytes packet forwarding rate	35.7Mpps
RAM Buffer	512KB per device
Transmission Method	Store-and-forward
MAC Address Table	8K entries per device
MAC Address Update	Up to 256 static MAC entries
	Enable/disable auto-learning of MAC addresses
Physical and Environmental
Maximum Power Consumption	24.1W
Standby Power Consumption	6W/110V, 6.2W/240V
Fan Quantity	0
Acoustics	0dBA
Heat Dissipation	82.23 BTU/hr
Dimensions	17.3in x 8.3in x 1.7in (440mm x 210mm x 44mm)
	19-inch standard rack mounting width, 1U height
Weight	6.5 lbs (2.9kg)
MTBF	410, 948 hours
AC Input	100 to 240 VAC 50/60Hz internal universal power supply
Operating Temperature	32° to 104 °F (0 ° to 40 °C)
Storage Temperature	14° to 158° F (-10° to 70° C)
Operating Humidity	10% to 95% non-condensing
Storage Humidity	5% to 95% non-condensing
Emission (EMI)	FCC Class A, CE Class A, IC Class A, VCCI Class A, C-Tick
Diagnostic LEDs	Power (per device)
	Fan Error (per device, optional)
	Link/Activity/Speed (per 10/100/1000Mbps port, per SFP port)
Safety	cUL, LVD
L2 Features
MAC Address Table	8K
Flow Control	802.3x Flow Control
	HOL Blocking Prevention
Spanning Tree Protocol	802.1D STP
	802.1w RSTP
IGMP Snooping	IGMP v1/v2 Snooping
	Supports at least 64 static multicast addresses
	Supports IGMP Snooping Querier
	Support 256 IGMP groups
	IGMP per VLAN
Loopback Detection	Auto disable port when loop is detected
802.3ad Link Aggregetion	8 groups per device/8 ports per group
Port Mirroring	One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both
Cable Diagnostics	Yes
Configurable Auto MDI/MDI-X	Yes
Multicast Filtering	Forwards all unregistered groups
	Filters all unregistered groups
VLAN
802.1Q	2003 Edition
VLAN Group	Max 256 static VLAN groups, max 4094 VIDs
Management VLAN	Supports 1 Management VLAN
Asymmetric VLAN	Yes
Auto Voice VLAN	Max. 10 user defined OUI, Max. 8 default OUI
Auto Surveillance VLAN	Yes
QoS (Quality of Service)
802.1p Quality of Service	4 Queues per port
Queue Handling	Strict, Weighted Round Robin (WRR)
CoS based on	802.1p Priority Queues, DSCP
Bandwidth Control	Port-based (Ingress/Egress, min. granularity 64 Kb/s)
Access Control List
Maximum profiles	50
Maximum rules shared by profiles	240
ACL based on	MAC Address, IPv4 Address (ICMP/IGMP/TCP/UDP), VLAN ID, 802.1p Priority, DSCP
ACL Actions	Permit, Deny
Security
802.1X Port-based Access Control	Default 802.1X forwarding
Port Security	Supports up to 64 MAC addresses per port
Traffic Control	Broadcast/Multicast/Unicast Storm Control
Static MAC	Supports 256 Static MAC entries
D-Link Safeguard Engine	Yes
DHCP Server Screening	Yes
ARP Spoofing Prevention	Max 64 entries
SSL	Supports v1/v2/v3
	Support IPv4
MIB	1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB
RFC	RFC 768 UDP, RFC 791 IP, RFC 792 ICMP, RFC 793 TCP, RFC 826 ARP, RFC 854 Telnet Server, RFC 855 Telnet Server, RFC856 Telnet Binary Transmission, RFC 858 Telnet Server, RFC 896 Congestion Control in TCP/IP Network, RFC 903 Reverse Address Resolution Protocol, RFC 951 BootP Client, RFC 1155 MIB, RFC 1157 SNMP v1, RFC 1191 Path MTU Discovery, RFC 1212 Concise MIB Definition, RFC 1213 MIB II, IF MIB, RFC 1215 Traps for use with the SNMP, RFC 1239 Standard MIB, RFC 1350 TFTP, RFC 1493 Bridge MIB, RFC 1519 CIDR, RFC 1945 HTTP/1.0, RFC 2131 DHCP, RFC 2132 DHCP Options and BOOTP Vendor Extensions, RFC 2138 Radius Authentication, RFC 2233 Interface MIB, RFC 2578 Structure of Management Information Version 2 (SMIv2), RFC 2647 802.1p, RFC 3416 SNMP, RFC 3417 SNMP, RFC 3621 Power Ethernet
Management
Web-based GUI	Supports IPv4
Compact CLI through Telnet	Yes
Telnet Server	Maximum connection is 4, Supports IPv4
TFTP Client	Supports IPv4
SNMP	v1/v2/v3
SNMP Trap	Yes
Trap for SmartConsole Utility	Yes
System Log	Max. 500 log entries, supports 5 IPv4 log server
BootP/DHCP Client	Yes
Time Setting	SNTP
