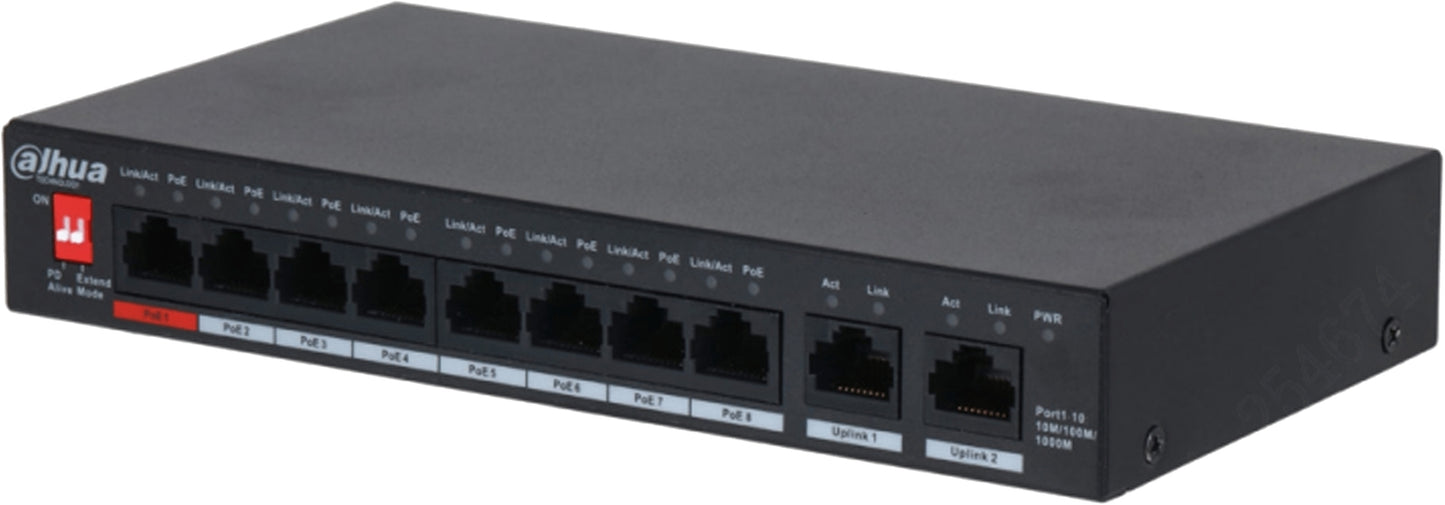

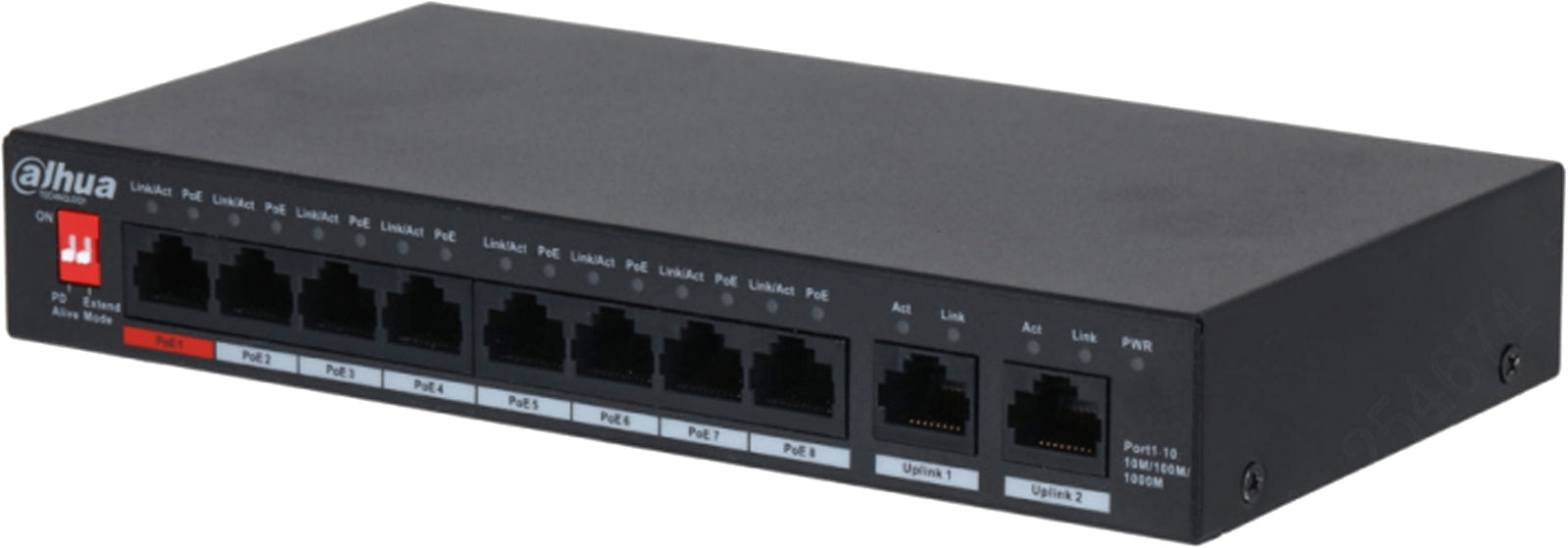

Dahua 10 Port Gigabit Unmanaged Desktop Switch with 8 Port PoE, 8x 10/100/1000 Mbps Base-TX PoE Ethernet Ports, 2x 10/100/1000 Mbps Base-TX Ethernet Ports, 96W whole PoE budget, Port 1 60W PoE budget, Port 2-8 30W PoE budget, 20 Gbps switching capacity

Overview:

PFS3010-8GT-96
10-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE

• Intelligent PoE
• 8-pin assignment PoE power supply
• Long distance PoE
• PoE watchdog
• BT 90W
• All-giga ports
• Wide working temperature

Specifications:

Product Code	DH-PFS3010-8GT-96-V2
Service Port	Eight 10/100/1000Mbps Base-TX PoE Ethernet ports
	Two 10/100/1000Mbps Base-TX Ethernet ports
Power Supply	48V DC-57V DC
Operating Temperature	-10°C to + 55°C (-14°F to 131°F)
Operating Humidity	10%-90%
Power Consumption	Idling: 5W
	Full load: 96W
PoE Budget	Port 1 ≤ 60W, Port 2-8 ≤ 30W, whole PoE budget ≤ 96W
PoE Standard	IEEE802.3af, IEEE802.3at, Hi-PoE
PoE Pin Assignment	PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
MAC Table Size	4K
Jumbo Frame	9216 bytes
Communication Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
ESD	Air discharge: 8kV
	Contact discharge: 6kV
Thunderproof	Common mode: 6kV
	Differential mode: 4kV
Net Weight	0.50 kg (1.1 lb)
Gross Weight	1.32 kg (2.91 lb)
Product Dimensions	190 mm x 100 mm x 30 mm (7.48" x 3.94" x 1.18")(W x L x H)
Packaging Dimensions	Packing box: 303 mm x 262 mm x 72 mm (11.92"" x 10.31"" x 2.83"")
	Protective box: 549 mm x 325 mm x 397 mm (21.61"" x 12.80"" x 15.63"")(W x L x H)
Package	10 devices in one package
Certifications	CE: EN60950
	FCC
