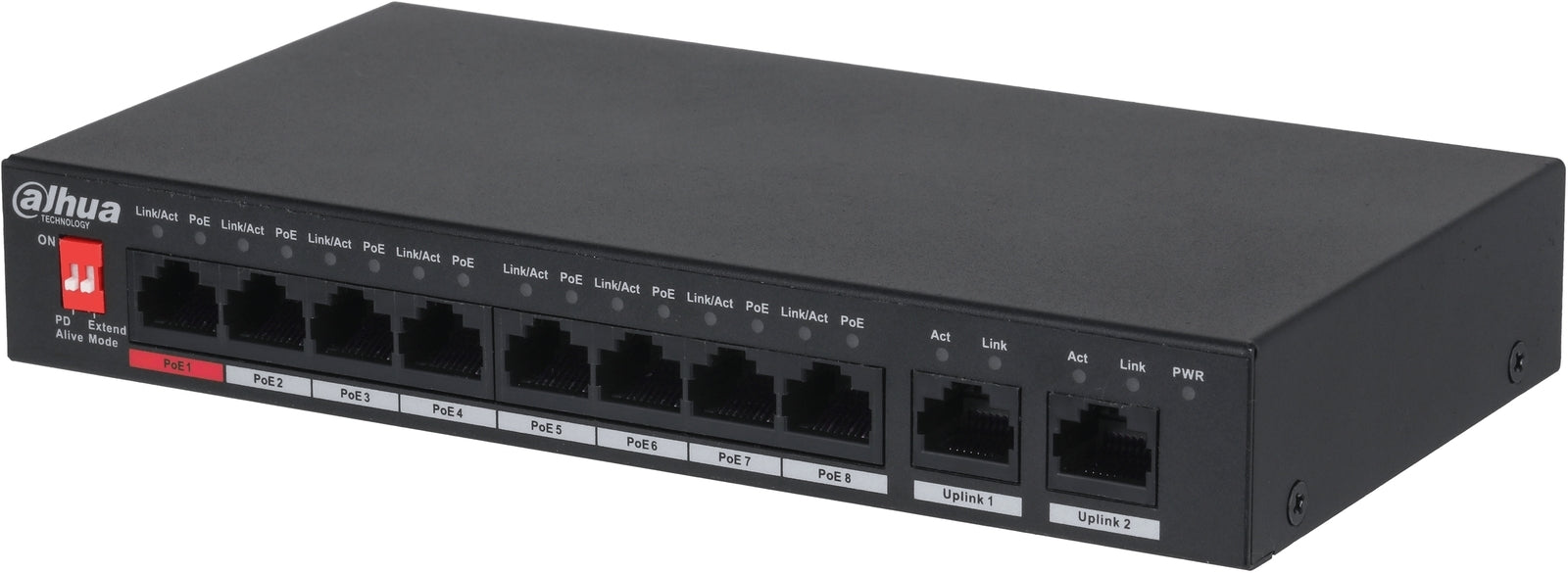

Dahua 10 Port Unmanaged Desktop Switch with 8 Port PoE, 8x RJ-45 10/100 Mbps (PoE), 2x RJ-45 10/100/1000 Mbps (Uplink), 96 W PoE Power, Long distance PoE

Overview:

PFS3010-8ET-96
10-Port Unmanaged Desktop Switch with 8-Port PoE

• * The parameters and datasheets below can only be applied to V2.0 (version 2.0)
• Intelligent PoE
• 8-pin assignment PoE power supply
• Long distance PoE
• PoE watchdog
• Wide working temperature

Specifications:

Product Code	DH-PFS3010-8ET-96-V2
Hardware
Data Transmission Port	Port 1-8: 8 x RJ-45 10/100 Mbps (PoE)
	Port 9-10: 2 x RJ-45 10/100/1000 Mbps (Uplink)
Power Supply	48 V - 57 V DC
Operaing Temperature	-10 °C to +55 °C (+14°F to +131°F)
Operating Humidity	5% - 95% (RH)
Storage Temperature	-20 °C to +70 °C (-4°F to +158°F)
Storage Humidity	5% - 95% (RH)
Power Consumption	Idling: 3 W
	Full load: 96 W
Performance
Capacity	5.60 Gbps
Packet Forwarding Rate	4.17 Mpps
Packet Buffer Memory	4 Mbit
MAC Table Size	8K
Communication Standard	IEEE802.3/IEEE802.3u/IEEE 802.3ab/IEEE802.3x
PoE
PoE Standard	IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
PoE Power	96 W
Power Consumption Management	Yes
PoE Pin Assignment	1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE	250 m long distance PoE transmission
PoE Watchdog	Yes
General
Statics Protection	Air discharge: 8 kV
	Contact discharge: 6 kV
Thunder-proof	Common mode: 4 kV
	Differential mode: 2 kV
Net Weight	0.50 kg (1.10 lb)
Gross Weight	1.32 kg (2.91 lb)
Product Dimensions	190 mm x 100 mm x 30 mm (7.48" x 3.94" x 1.18")
