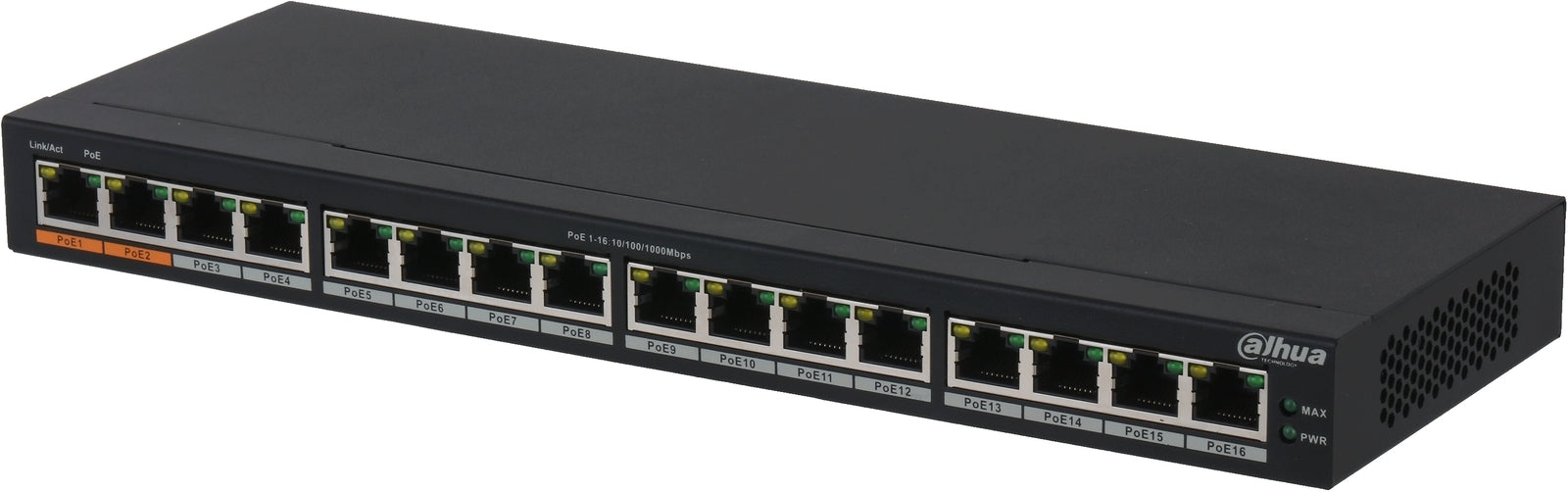

Dahua 16 port Gigabit PoE Unmanaged Switch, PoE budget total 190W, 16x RJ-45 10M/100M/1000M (PoE)

Overview:

PFS3016-16GT-190
16-Port Unmanaged Gigabit PoE Switch

• Organge port supports 60W Hi-PoE standard
• Intelligent PoE
• Plug-and-play
• Ethernet port supports eight-pin PoE
• Wide range of working temperature: -10 to +55°C (14°F to +131°F)
• Full gigabit port design

Specifications:

Product Code	DH-PFS3016-16GT-190
Performance
Layer	Layer 2
Switching Capacity	32 Gbps
Packet Forwarding Rate	23.808 Mpps
Packet Buffer Memory	4.1 Mb
MAC Table Size	8K
Hardware Feature
Standard Power Supply	Yes
PoE	Yes
Ethernet Port	16
Ethernet Port Rate	1 Gbps
Number of Business Card Slots	Port 1-port 16: 16 x RJ-45 10M/100M/1000M (PoE)
Power Supply	100V AC -240V AC
Operating Temperature	-10°C to +55°C (14°F to +131°F)
Operating Humidity	10%-90%
Storage Humidity	5%-95%
Power Consumption	Idling: 18W
	Full load: 190W
PoE
PoE Standard	IEEE802.3af, IEEE802.3at, Hi-PoE
PoE Budget	Port 1-port 2 ≤ 60W, port 3-port 16 ≤ 30W, total ≤ 190W
PoE Pin Assignment	PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
General
ESD	Air discharge: 8kV
	Contact discharge: 6kV
Thunderproof	Common mode: 4kV
	Differential mode: 2kV
Product Dimensions	285 mm x 104.6 mm x 28 mm (11.22" x 4.12" x 1.10")
Packaging Dimensions	455 mm x 270 mm x 92 mm (17.91" x 10.63" x 3.62")
