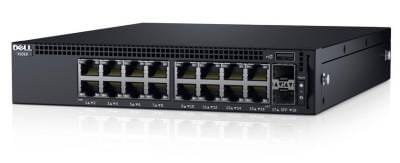

Dell Networking X1018 Smart Web Managed Switch with 16x 1GbE and 2x 1GbE SFP ports

Dell 210-AEIK Networking X1018 Smart Web Managed Switch with 16x 1GbE and 2x 1GbE SFP ports, Silent fanless operation, 16x 10/100/1000Base-T auto-sensing Gigabit Ethernet switching ports, 2x SFP fiber ports

Overview:

Dell Networking X1018/X1018P
18-port smart managed switch with easy GUI-based management and optional PoE.

• 16 GbE ports
• 2 x 1Gb SFP ports
• Silent, fanless operation ( X1018 model)
• PoE with X1018P model (16 PoE ports)
• Optional X-Series 1RU Tandem Switch Tray supports two X1018 switches mounted side-by-side

Features:

Elegant interface, effortless management
The intuitive graphical user interface (GUI) of Dell Networking X-Series switches makes setup and management simple for network administrators. Based on extensive usability testing, the design of everything from navigation to menu structures and help tips is inspired by the way IT professionals think and work, making the interface a pleasure to use regularly or occasionally.

Save time with smart features
Streamlined tools, step-by-step wizards and a customizable dashboard help you manage faster.

• Rapidly configure and tune network performance with purpose-built tools and wizards.
• Optimize traffic with automation - use point-and-click batch routines for specific applications such as unified communications.
• Gain visibility with a detailed dashboard providing a single, customizable view into common tasks, alerts, port status and network visualization.
• Skip the learning curve and use familiar commands and alerts similar to PCs and servers.

Minimize risk with enhanced visibility and control
Enhanced network traffic visibility and troubleshooting reduces risk of network downtime.

• Monitor and resolve issues with "actionable monitoring," a guided continuous workflow from issue identification to resolution.
• Reduce configuration errors and eliminate extra steps with help from multi-port batch routines and port profiles for common devices.
• Optimize cloud services and onsite network applications with security and traffic-priority features.

Easy integration with your network
Pick the right switch for your network. Choose from a broad selection of models with rich feature sets and a variety of port counts. Power over Ethernet (PoE) and PoE+ models provide additional deployment flexibility, allowing you to connect, auto-configure and power phones, cameras, compact switches and other network devices.

Specifications:

Product Code	210-AEIK
Link Aggregation	Industry-standard link aggregation adhering to IEEE 802.3ad standards (static and dynamic, LACP)
	Supports 12 link aggregation groups and up to 4 ports per group
Internal DHCP Server	DHCP client support allows for simplified IP address assignment when used with a DHCP server.
	Switch software can be easily uploaded to the switch through the web-management interface.
	Configurations can be easily uploaded to and from the switch through the intuitive web-management interface.
	Port statistics available through industry-standard RMON. Switch is factory-configured as an unmanaged switch, but can be easily configured as a web-managed switch with the push of a button.
	Jumbo frame support for packets up to 9,000 bytes. Broadcast storm control to help eliminate network traffic storm.
Port Attributes	Supports Virtual Cable Diagnostics by Marvell and fiber transceiver diagnostics to provide advanced troubleshooting capabilities for your cable infrastructure Integrated LEDs for improved visual monitoring and analysis.
	10/100/1000Base-T auto-sensing Gigabit Ethernet switching ports: 16
	SFP/SFP + fiber ports: 2 SFP
	Power over Ethernet (PoE) ports: not available
	PoE powered: not available
	Power reduction for short cables or inactive connections: standard
	Autonegotiation for speed, duplex mode and flow control: standard
	Auto-MDI/MDIX mode and flow control: standard
Performance	MAC addresses: 16K
	Packet buffer memory: 1 Mb
	Switch fabric capacity: Up to 36 Gbps
	Forwarding rate: 26.8 Mpps
	Forwarding rate: 178.6 Mpps
VLAN	Supports up to 4096 port-based VLANs. Honors all 4096 VLAN tags.
Quality of Service	Honor 802.1p values and honor IP DSCP values
	Supports strict priority and configurable weighted round robin (WRR) scheduling across queues
	Priority queues per port:
	X1018: 4
Management	Local password and restricted IP addresses for secure access to the switch Port mirroring provides the capability of mirroring 8 source ports and VLAN mirroring to improve network traffic monitoring and troubleshooting.
Chassis	Dimensions (H x W x D):
	1.62 in x 8.23 in x 9.84 in
	(41.25 mm x 209.0 mm x 250.0 mm)
	Rack mount: 1RU, half width
	Unit weight: 1.76 Kg
	Fans: Fanless Design
Standards Supported	IEEE 802.3ac - VLAN tagging
	IEEE 802.3ad - Link aggregation with static LAG support
	IEEE 802.1W - Rapid Spanning Tree (1)
	IEEE 802.1D - Spanning Tree (1)
	IEEE 802.1Q - Port-based VLANs
	IEEE 802.1v - Protocol-based VLANs
	IEEE 802.1p - Ethernet priority with user provisioning and mapping
	IEEE 802.1X - Port authentication
	IEEE 802.3x - Flow control
	RFC 826 - ARP
	RFC 854 - Telnet
	RFC 855 - Telnet option
	RFC 1155 - SMIv1
	RFC 1157 - SNMP
	RFC 1213 - MIB II - Updated by RFC's 2011, 2012 and 2013
	RFC 2579 - Textual conventions for SMI v2
	RFC 2580 - Conformance statements for SMI v2
	RFC 2819 - RMON
	RFC 3164 - BSD Syslog Protocol
	RFC 3416 - Management Information Base (MIB) for the Simple Network Management Protocol (SNMP) (December 2002)
	RFC 768 - UDP
	RFC 783 - TFTP
	RFC 791 - IP
	RFC 792 - ICMP
	RFC 793 - TCP
	RFC 951 - BOOTP
	RFC 1533 - Including 1534, Interoperation between BOOTP and DHCP
	DHCP server
	RFC 2131 - Dynamic Host Configuration Protocol
	RFC 2132 - DHCP options and BOOTP vendor extensions
	RFC 950 - Internet Standard Subnetting Procedure
	RFC 1123 - Requirements for internet hosts
	RFC 1042 - A standards for transmission of IP datagrams over IEEE 802 networks
	RFC 1071 - Computing the internet checksum
Power	Power supply: 40W
	Power (max): 14.7W
	Power BTU/hr: 50.2
Additional Features	IGMPv2 snooping
	MLD snooping
	GARP
	GMP snooping
	Jumbo frames
	IPv6 support
	IPv4 and IPv6 Static routing
	USB support for update of firmware/configuration
	Auto-update of firmware and configuration, from TFTP server/USB
	Console port
	Authentication via TACACS+ server
	Port security
	Dynamic ARP Inspection
	DHCP Snooping
	SHCP Relay
	ACL
	Voice VLAN
	Unidirectional Link Detection (UDLD)
	Multiple Spanning Tree (MSTP)
	LLDP and LLDP-MED
	sFlow V5
	Port Profile (built-in scripts)
