Elgato WAVE DX Dynamic microphone

Elgato WAVE DX - Dynamic microphone, Frequence Response 50 - 15000 Hz, 3-pin XLR

Overview:

A dynamic mic that captures detail like a condenser without the noise, Wave DX is a remarkable feat of audio engineering. Connect any XLR audio interface. No booster necessary.

Features:

Incredible Sound right out of the box
Don’t just take our word for it. Grab your headphones and let Wave DX do the talking.

Warm, true-to-life character
For pro audio production

Brilliant detail and clarity
Without unwanted background noise

Forgiving cardioid polar pattern
Speak off-axis and still be heard

Works with any XLR audio interface
No booster necessary

Best with the tech you love
Compatibility is at the heart of every Elgato device. You can feel it in the way hardware and software work as one. It sets the standard for how creating content should feel — natural, empowering, and fun.

Broadcast Ready
The finely tuned frequency response range reproduces precise vocals without coloration — perfect for sculpting your signature sound with effects and EQ.

A Capsule Of Magic
Selected in close cooperation with Lewitt Audio, the dynamic capsule inside Wave DX is a remarkable feat of audio engineering. Just take a listen.

True Performer
An optimized proximity effect lets you shape your voice naturally. The closer you get, the bigger the bass.

Smooth Talker
Crafted with acoustically engineered nylon fiber sandwiched between two layers of foam, the internal pop shield reduces plosive breath sounds.

Radically Clear
A dynamic microphone that picks up detail like a condenser? That's right. Wave DX captures lifelike lows and luscious highs while rejecting room noise. It’s hard to find a mic that can do both.

Removable logo
Mount on either side and rotate the logo to look right on camera.

Hardened steel chassis

• Extra durable
• Reduces internal noise artifacts

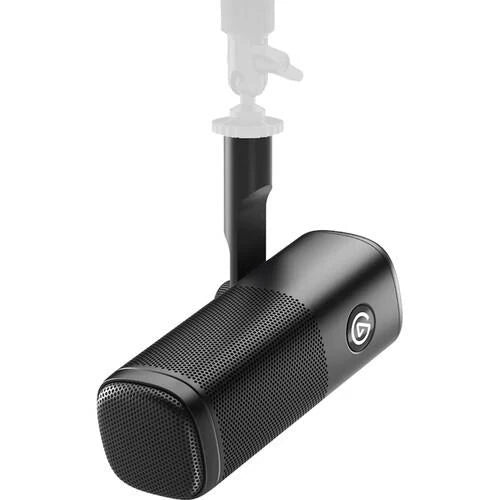

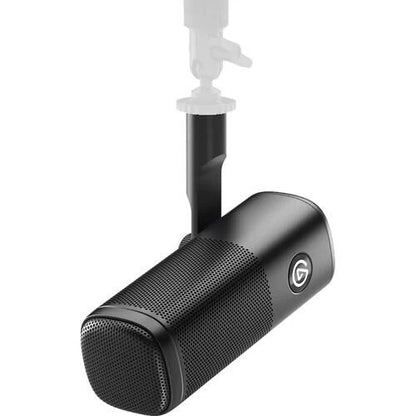

Mono swivel mount

• Adjust without jamming your cable
• Compatible with all mic arms
• 5/8" mount with 3/8" and 1/4" thread adapters included

XLR output
Connect your interface

Works with any XLR interface. Even better with Wave XLR.
Wave DX works seamlessly with Wave XLR, a compact USB interface packing features you won't find in conventional audio interfaces. Like proprietary anti-distortion technology, a capacitive mute button, direct integration with Wave Link mixing software, and an interchangeable faceplate.

Thousands of Effects
Add audio effects from Marketplace or third-party VST plugins directly to your Wave Link mixer, no manual install needed. Apply them to any input channel — like your microphone, game, or voice chat — then customize settings to create a sound all your own.

System Requirements:

REQUIREMENTS:

• XLR Audio Interface
• XLR Cable (3-pin)
• Mic Stand, Boom Arm, or Similar

WORKS GREAT WITH

• Elgato Wave XLR
• Elgato Wave Mic Arm / LP

Specifications:

Product Code	Elgato Wave DX 10MAH9901
CAPSULE	Dynamic
POLAR PATTERN	Cardioid
FREQUENCY RESPONSE	50 - 15000 Hz
SENSITIVITY	2.5 mV/Pa, -52 dbV/Pa
IMPEDANCE	600 Ohm
CONNECTOR	3-pin XLR
DIMENSIONS	53 x 53 x 146 mm, 2.1 x 2.1 x 5.7 in
WEIGHT	440 g, 1 lb
MOUNTING	5/8" mount with 3/8" and 1/4" thread adapters included
In The Box	Wave DX, Swivel Mount, 3/8" and 1/4" Thread Adapters, Quick Start Guide
	SKU: 10MAH9901
