EZVIZ 4K WIFI PT CAM - H80X

H80X Dual

4K Pan & Tilt Wi-Fi Camera

Specifications

Model: CS-H80x-R100-8G82WKFL

Camera

Image Sensor: 1/2.7 + 1/2.9 Progressive Scan CMOS

Shutter Speed: Self-Adaptive Shutter

Lens: 4mm @ F1.0, Viewing Angle: 46° (Vertical), 87° (Horizontal)

103° (Diagonal) (1080p) 4mm @ F1.6, viewing angle: 46° (Vertical), 87° (Horizontal), 103° (Diagonal) (4K)

PT Angle: Pan: 340°, Tilt: 70°

Minimum Illumination: 0.01 Lux @ (F1.0, AGC ON), 0 Lux with IR (*Data is obtained from EZVIZ Laboratories)

Lens Mount: M12

Day / Night Switch: IR-Cut Filter with Auto Switch

DNR: 3D DNR

WDR: Digital WDR

BLC: Supports

Black & White Night: 30m / 98ft

Video & Audio

Max Resolution: 3840 × 2160

Frame Rate: Self-Adaptive during Network Transmission

Video Compression: H.265 / H.264

H.265 Type: Main Profile

Video Bit Rate: Ultra HD; Quad HD; Full HD; HD. Adaptive bit rate.

Audio Bit Rate: Self-Adaptive

Network

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz - 2.4835 GHz

Channel Bandwidth: Supports 20MHz

Security: 64 / 128 - Bit WEP, WPA / WPA2, WPA-PSK / WPA2 - PSK

Transmission Rate: 11b : 11 Mbps, 11g : 54 Mbps, 11n : 150 Mbps

Wi-Fi Pairing: AP Paring

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions

Smart Alarm: AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection

Customized Alert Area: Supports

Two-Way Talk: Supports

Auto Tracking: Supports

General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

Local Storage: Supports microSD Card (Up to 512 GB)

Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription Required)

General

Operating Conditions: 30ºC - 50ºC Humidity 95% Or Less (Non-Condensing)

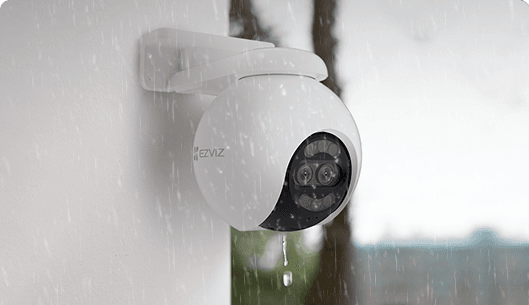

IP Grade: IP65

Power Supply: DC 12V/1A

Power Consumption: MAX. 12W

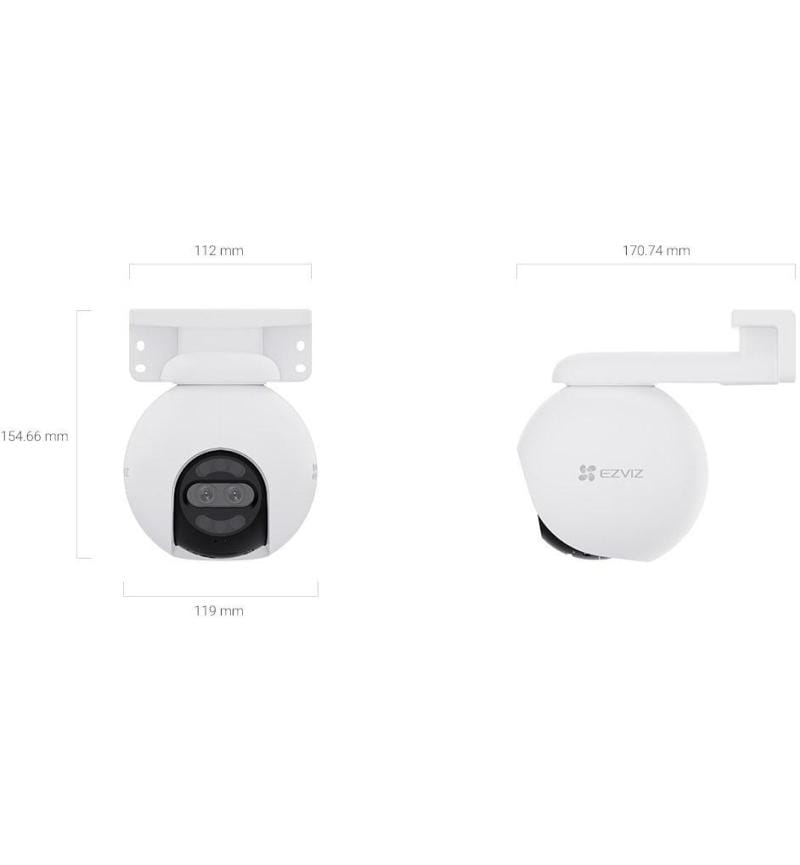

Dimensions: 170 × 112 × 154 mm (6.69 × 4.41 × 6.06 inch)

Packaging Dimensions: 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch)

Weight Product: 630 g (22.22 oz) Weight With Package: 1035 g (36.5 oz)

In the box

H80x Dual 4K Camera

Drill Template

Waterproof Kit

Screw Kit

Power Adapter

Regulatory Information × 2

Quick Start Guide

Certifications

Certifications: CE / UL / WEEE / RoHS / REACH
