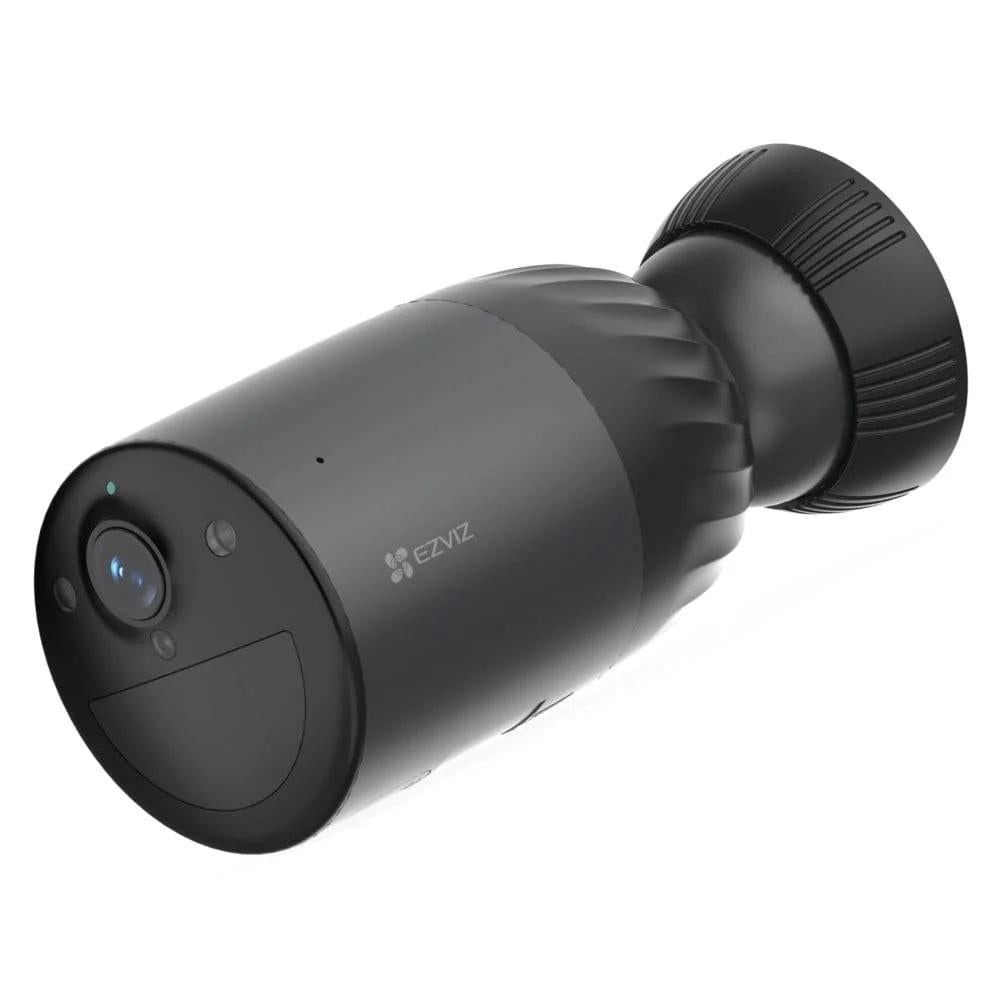

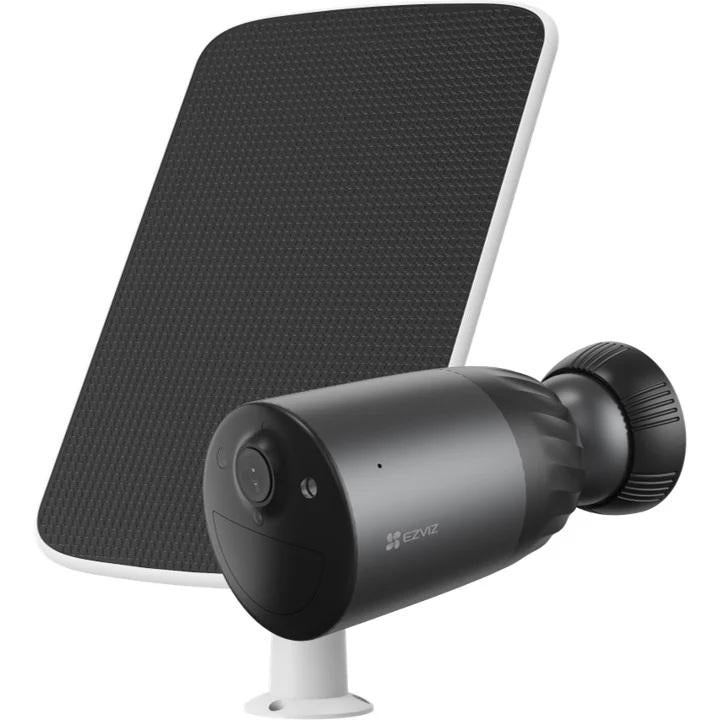

EZVIZ BC1C 4K WIFI KIT INCL SOLAR PANEL - E-BC1CSP4

BC1c 4K + Solar Charging Panel-F

Smart Home Battery Camera Kit

All-Day Recording with Always-On Video Mode

Specifications

Model: CS-BC1c-R100-2F8WFL

Camera

Image Sensor: 1/2.7” 8-Megapixel Progressive Scan CMOS Sensor

Minimum Illumination: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR

Shutter Speed: Self-adaptive Shutter

Lens: 2.8mm@ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical)

Day & Night: IR-Cut Filter With Auto-Switching

DNR: 3D DNR

Night Vision: IR Distance:15m

Color Night Vision Distance:15m

Video & Audio

Max. Resolution: 3840 x 2160/4K/8MP

Frame Rate: 15fps. Self-Adaptive During Network Transmission

Video Compression: H.265 / H.264

Video Bit Rate: Ultra HD; Quad HD; Full HD; Hi-Def Adaptive Bit Rate

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 4 Mbps

Network

Bluetooth: Supports

Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11ax

Frequency Range: 2.4 GHz - 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: WPA-PSK/WPA2-PSK, WPA3-Personal

Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Minimum Network Requirement: 8Mbps

Function

Smart Alarm: AI-Powered Human Shape Detection, AI-Powered Vehicle Detection

Two-Way Talk: Supports

General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark

General

Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F ), Humidity 95% Or Less (Non-Condensing)

IP Grade: IP65

Power Supply: DC 5V/2A (Compatible Power Adapter Needs To Be Purchased Separately)

Battery Capacity: 10400 mAh

Power Consumption: Max. 10W

Product Dimensions: 149.33 x 62.95 x 62.95 mm

Packaging Dimensions: 103 x 103 x 186 mm

Weight

Net Weight: 348g

With Package: 671g

Specifications

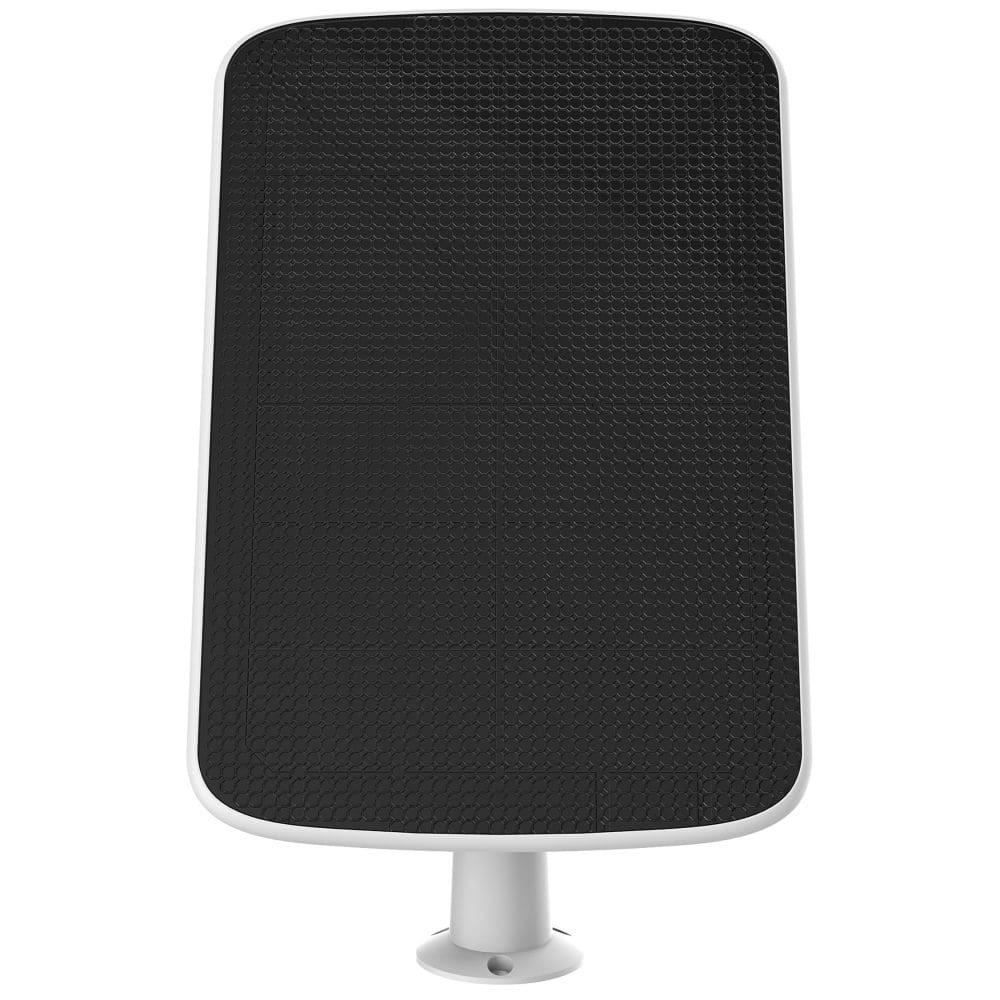

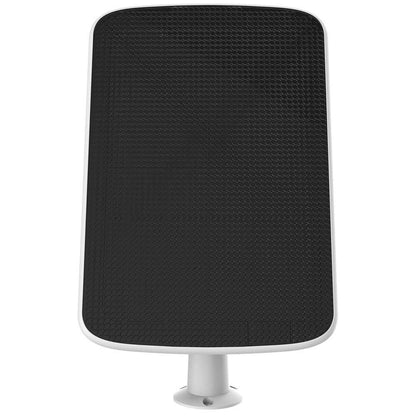

Model: CS-CMT-Solar Panel-F

Performance Parameter

Power Voltage: 6.36V±5%

Max. Power Current: 660mA±5%

Max. Power: 4.2W

Solar Cell Efficiency: 21.6%

Operation Temperature

-20~60 (-4~140),Humidity 90% Or Less (Non-Condensing)

(The Working Environment Temperature Range For Battery Camera Charging Should Be Maintained At 0-45°C )

IP Grade: IP65

Mechanical Data

Solar Cell Type: Monocrystalline Solar Cells

Product Dimensions: 216.25 × 149.58 × 2.4 mm (8.51 × 5.89 × 0.09 inch)

Packaging Dimensions: 230 × 161 × 78 mm (9.06 × 6.34 × 3.07 inch)

Weight With Package: 611 g (21.5 oz) Panel body without bracket: 334 g (11.78 oz)

In The Box

 EZVIZ Solar Panel-F

EZVIZ BC1c Camera

Magnetic Base

Adjustable Mounting Bracket

Screw Base

USB Cable

Screw Kit x

Drill Template x 2

Regulatory Information

Quick Start Guide

Pin

Certifications: CE / WEEE / ROHS / REACH
