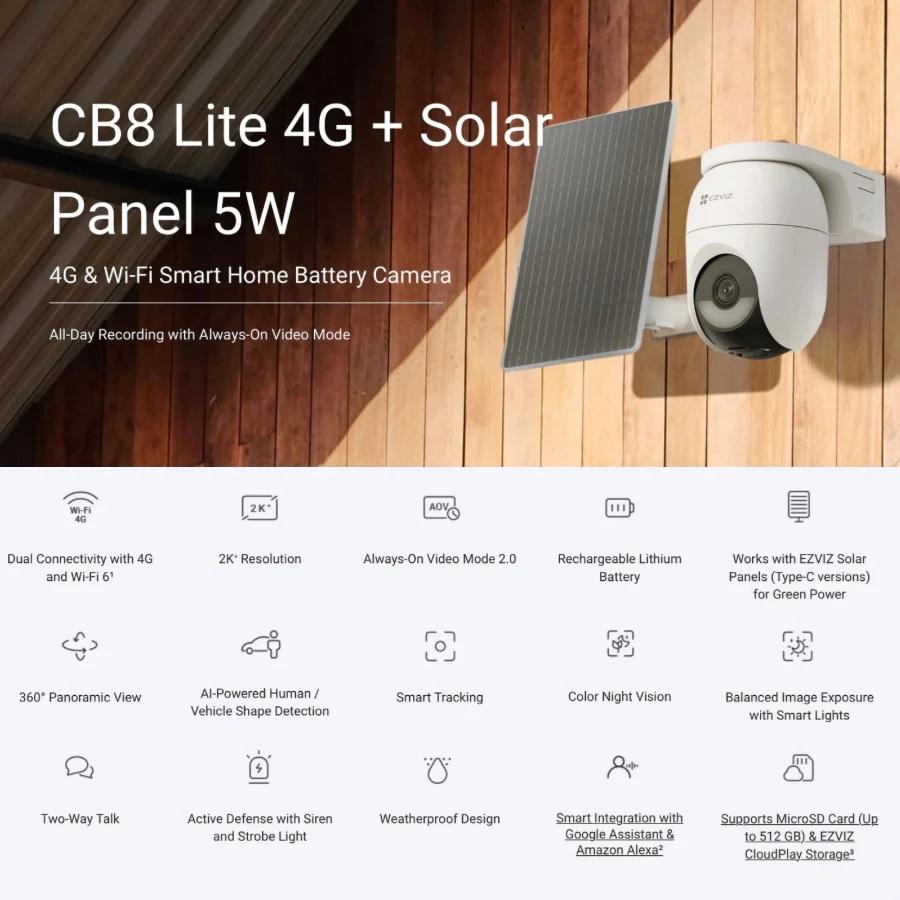

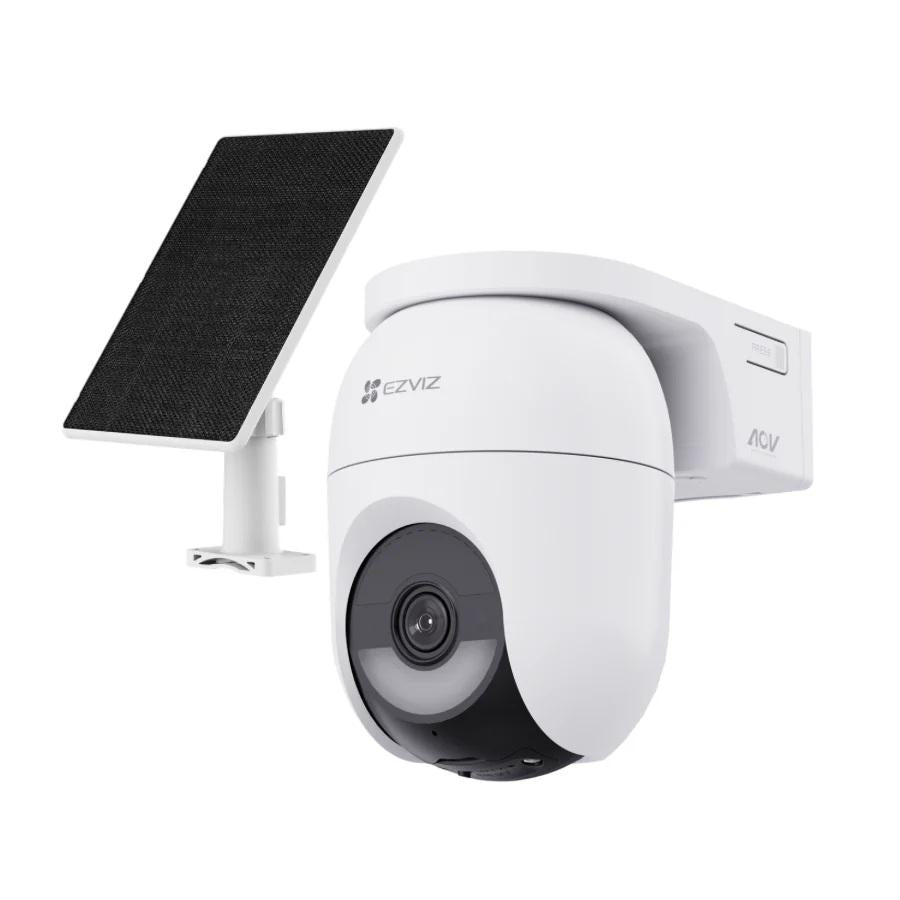

EZVIZ CB8 4G + WI-FI BATTERY CAMERA KIT - E-CB8C4G

CS-CB8c-R100-1N4WL4GA, CS-CB8c/SP (4MP,W4GA)

Camera

Image Sensor: 1/3 4-Megapixel Progressive Scan CMOS Sensor

Minimum Illumination:   0.01 Lux @(F1.6, AGC ON), 0 Lux with IR

Shutter Speed: Self-Adaptive Shutter

Lens

4mm@ F1.6 Diagonal Angle: 90

Horizontal Angle: 75° Vertical Angle:40

PT Angle: Pan: 340°, Tilt: 80°

Day & Night: IR-Cut Filter With Auto Switch

DNR: 3D DNR

Night Vision: 15 m

Video & Audio

Max Resolution: 4MP

Frame Rate: 15fps; Self-Adaptive during Network Transmission

Video Compression: H.265 / H.264

Video Bit Rate: Ultra-HD; Full HD; Hi-Def; Adaptive Bit Rate

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 4 Mbps

Network

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n, 802.11 ax

Frequency Range: 2.4 GHz - 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b: 11Mbps,11g :54Mbps,11n :72Mbps, 11ax:114Mbps

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Minimum Network Requirement: 4 Mbps

Frequency Bands

IN LTE-FDD: B1/B3/B5/B8

IN LTE-TDD: B34/B38/B39/B40/B41

EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28

EU LTE-TDD: B38/B40/B41

LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66

LA LTE-TDD: B38/B40/B41

Function

Smart Alarm

AI-Powered Human Shape Detection

AI-Powered Vehicle Shape Detection

Two-Way Talk: Supports

General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark

Storage

Local Storage: Supports MicroSD Card (Max. 512 GB)

Cloud Storage: Supports EZVIZ CloudPlay Storage (Subscription Required)

General

Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F)

Humidity 95% Or Less (Non-c=Condensing)

IP Grade: IP65

Power Supply: DC 5 V / 2 A (Adapter Needs To Be Purchased Separately)

Battery Capacity: 5,200 mAh

Power Consumption: Max.10 W

Product Dimensions: 157 × 102 × 148 mm (6.18 × 4.02 × 5.83 inch)

Packaging Dimensions: 205 × 145 × 194 mm (8.07 × 5.71 × 7.64 inch)

Product Weight:640 g (22.58 oz)

Weight With Package: 1,090 g (38.48 oz)

In The Box

 CB8 Lite 4G Camera

Solar Panel 5W

Drilling Template

Adjustable Mounting Bracket

Screw Kit × 2

Power Cable

Regulatory Information × 3

Quick Start Guide × 2

Certifications: CE / REACH / WEEE / RoHS
