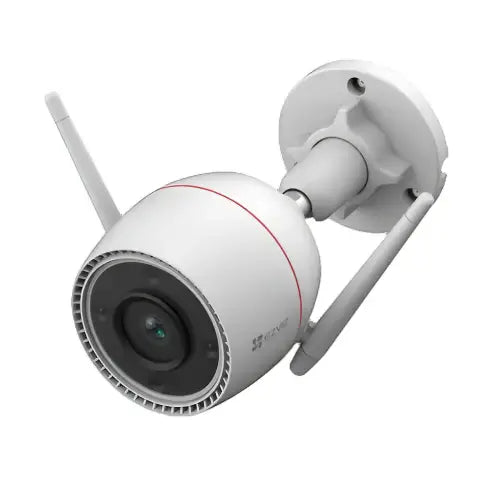

EZVIZ H3C 2K 3MP WIFI CAM - E-H3C3

H3c 2K

Wi-Fi Smart Home Camera

Specifications

Model: CS-H3c-R100-1K3WKFL

Camera

Image Sensor: 1/2.7 Progressive Scan CMOS

Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

IR Night Vision Distance: Up To 98 ft / 30 m

Shutter Speed: Self-Adaptive Shutter

Lens: 4mm @ F2.0, View Angle 82 (Horizontal), 98 (Diagonal)

Lens Mount: M12

DNR: 3D DNR

WDR: Digital WDR

Day / Night Switch: IR-Cut Filter With Auto-Switching

Video & Audio

Max. Resolution: 3MP, 2304 × 1296

Frame Rate: Max: 30fps; Self-Adaptive During Network Transmission

Video Compression: H.265 / H.264

Video Bit Rate: Quad HD; Hi-Def; Full HD; Standard. Adaptive Bit Rate

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 1.5 Mbps

Network

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz - 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Wired Network

RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Function

Detection: Human Shape Detection, Motion Detection

Customized Alert Area: Supports

Integration: Works with Alexa, Google Assistant, IFTTT

General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Storage

Local Storage: Supports MicroSD Card (Up To 512 GB)

Cloud Storage: Supports EZVIZ CloudPlay Storage (Subscription Required)

General

Operating Conditions: -30 °C to 50°C ( -22 °F to 122 °F ), Humidity 95% Or Less (Non-Condensing)

IP Grade: IP67

Power Supply: DC 12V / 1A

Power Consumption: MAX. 9W

Dimensions: 72 × 72 × 157 mm (2.83 × 2.83 × 5.98 Inch)

Packaging Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 Inch)

Weight (With Package): 539 g (19.01 oz)

Net Weight: 330 g (11.64 oz)

In The Box

H3c 2K Camera

Drill Template

Screw Kit

Waterproof Kit

Power Adapter

Regulatory Information

Quick Start Guide

Certifications: CE / FCC / UKCA / UL / WEEE / RoHS / REACH
