Network

Wi-Fi Pairing: AP Pairing
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
General Function: Anti-Flicker, Dual-Stream, Heartbeat, Password Protection, Watermark
Max. Bitrate: 2 Mbps

Interface

Storage: Micro SD card slot (Max. 256 GB)
Wired Network: RJ45 × 1 (10M/100M Adaptive Ethernet Port)

Wi-Fi

Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4GHz ~ 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps

General

Operating Conditions: -20°C to 50°C (-4°F to 122°F); Humidity 95% or less (non-condensing)
Power Supply: DC 12V/1A
Power Consumption: Max. 6W
IP Grade: IP67
Night Vision Distance (Black/White Night Vision Mode): Max. 30 meters (98 feet)
Dimensions: 72 × 72 × 152 mm (2.83 × 2.83 × 5.98 inches)
Packaging Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inches)
Net Weight: 253 g (8.9 oz)

In the Box

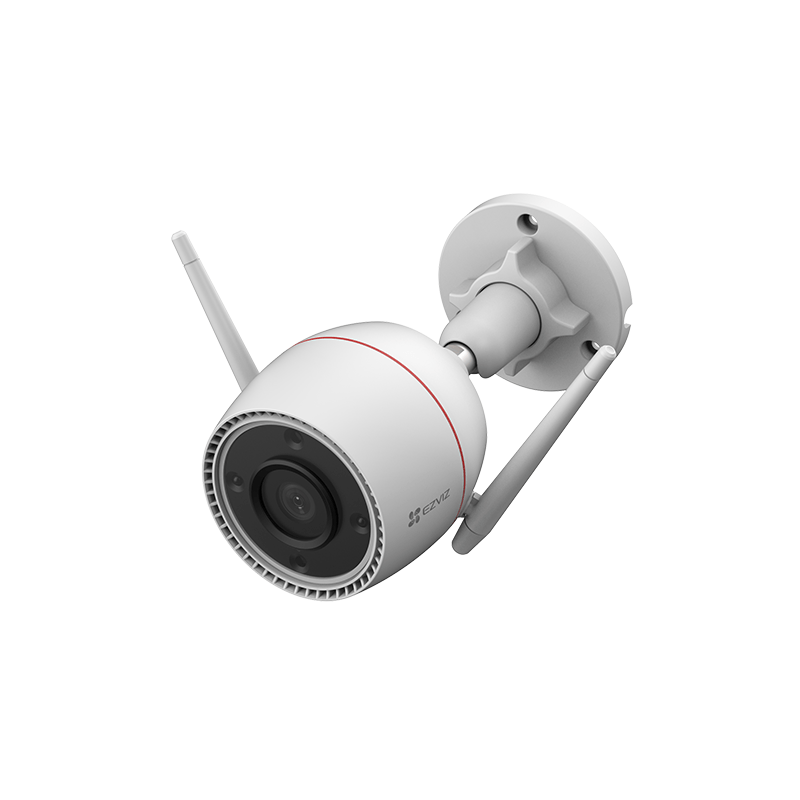

C3TN Camera
Drill Template
Screw Kit
Waterproof Kit
Power Adapter
Regulatory Information
Quick Start Guide
