The EZVIZ Solar Panel E (CS-CMT-Solar Panel-E) is a reliable and eco-friendly solution to keep your EZVIZ battery-powered cameras charged around the clock. Designed with monocrystalline solar cells and a PET laminated finish, it delivers a high conversion efficiency of 21.6% for maximum energy output even in moderate sunlight.

With a maximum power of 6.18W and a stable 6V ± 5% output voltage, the panel ensures consistent and efficient charging. Built to withstand the outdoors, it features an IP65 weatherproof rating, protecting it from dust, rain, and harsh environmental conditions.

The panel operates effectively in temperatures ranging from -20°C to 60°C (-4°F to 140°F) and is equipped with an adjustable mounting bracket for flexible installation. Each package includes a screw kit, drill template, and quick start guide, making setup fast and simple.

Certified by CE, FCC, UKCA, WEEE, REACH, and RoHS, the EZVIZ Solar Panel E is a trusted choice for extending the lifespan and performance of your EZVIZ battery cameras.

🔧 Technical Specifications

Performance Parameters

• Model: CS-CMT-Solar Panel-E

• Max Power: 6.18W

• Power Voltage: 6V ± 5%

• Max Power Current: 1030mA ± 5%

• Transformation Efficiency: 21.6%

• Operating Temperature: -20°C to 60°C (-4°F to 140°F)

• Charging Environment: 0°C to 45°C recommended

Mechanical Data

• Solar Cells: Monocrystalline, PET laminated

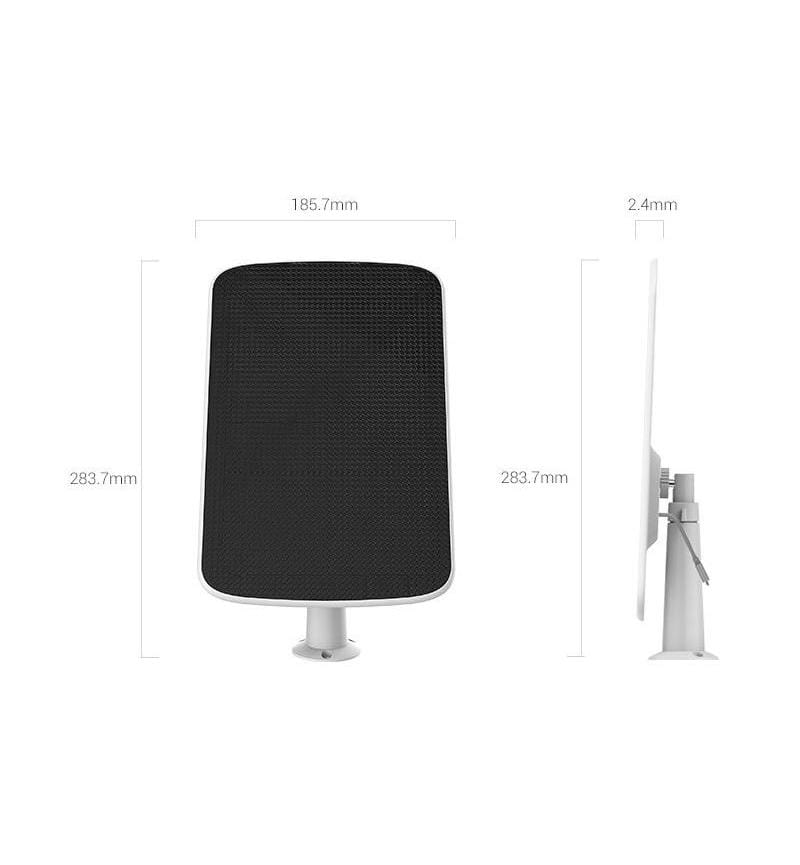

• Product Dimensions: 283.7 × 185.7 × 2.4 mm

• Packaging Dimensions: 300 × 202.5 × 78 mm

• Net Weight: 484g

• Package Weight: 854g

• IP Grade: IP65

In the Box

• 1 × EZVIZ Solar Panel-E

• Adjustable mounting bracket

• Screw kit & drill template

• Quick start guide

Certifications

• CE / FCC / UKCA / WEEE / REACH / RoHS
