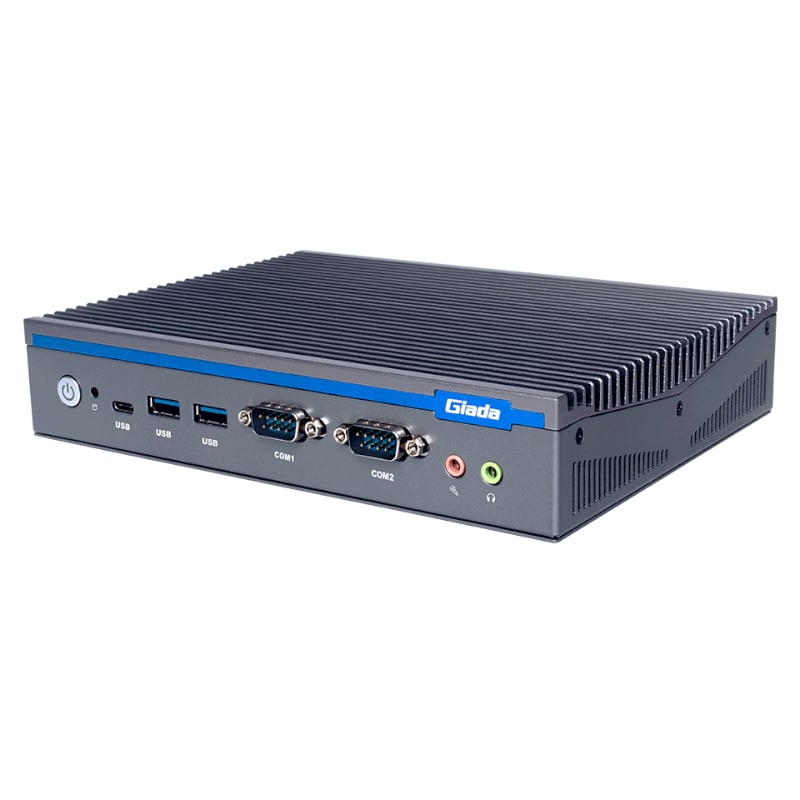

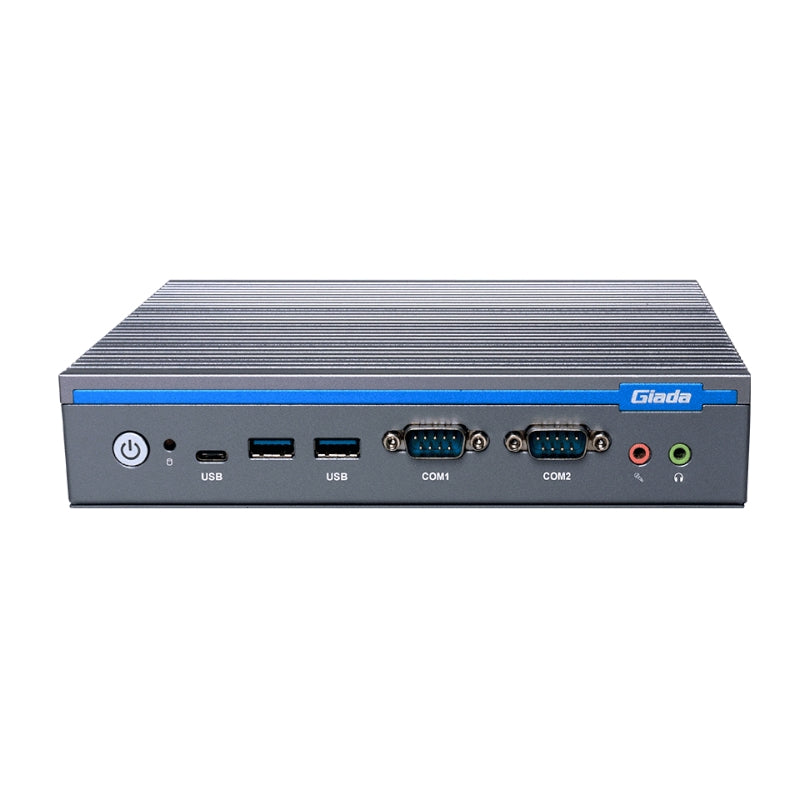

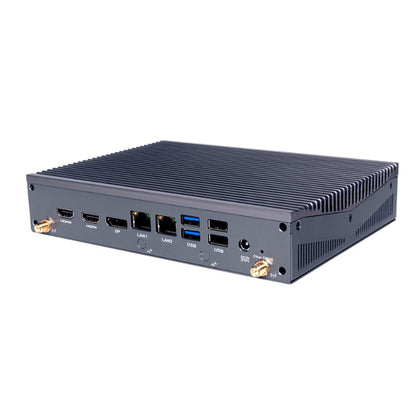

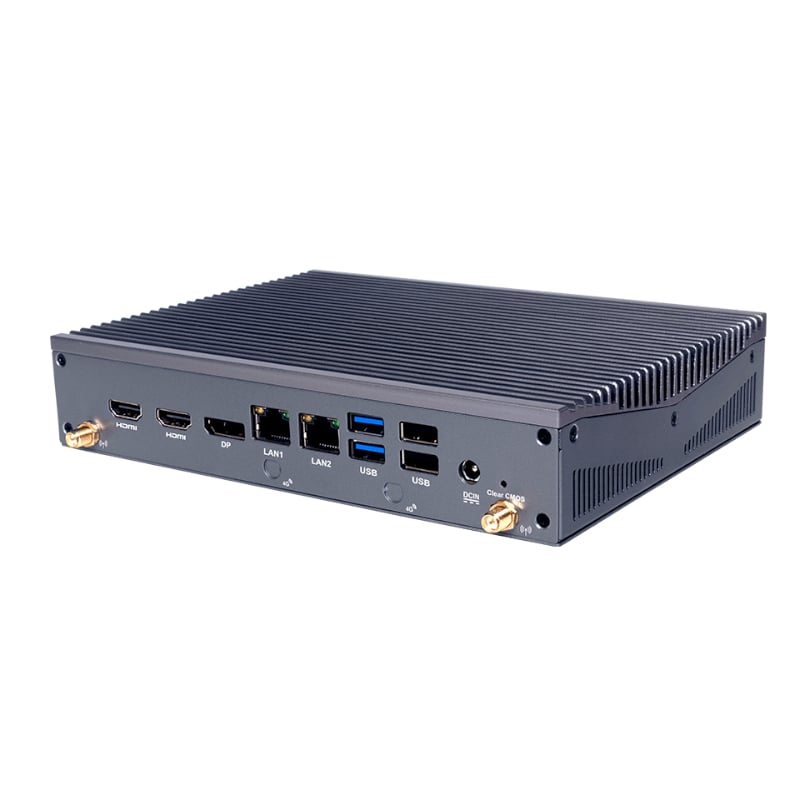

Giada DF612 Mini PC, i3-1215U 4.4GHz, No RAM, So SSD, Intel HD Graphics, No OS

Overview:

GIADA DF612 I3-1215U 2XDDR4 M.2 2XHDMI
The Giada DF612 Intel Core i3 is a high-end digital signage player that is ideal for work in hospitality, retail, commercial, service, and advertising. Its small and powerful design gives businesses the performance and efficiency of the IntelCoreTM i3-1215U CPU, as well as two HDMI connectors that enable up to 4K resolution and one DisplayPort connection that supports up to 8K resolution. It is incredibly customizable because of its HDMI, USB ports, gigabit Ethernet, WiFi 6, and support for M.2 SSDs and mini-PCIe 3G, 4G, and 5G cards. Because of its VESA mount flexibility, it may also be mounted in a variety of ways and simply hidden behind a monitor or large format panel.

Features:

• IntelCore i3-1215U processor
• 1 x DisplayPort, Supporting 8K, 2 x HDMI, Supporting 4K Display
• 2 x SO-DIMM DDR4 Memory, Up to 64GB
• 1 x M-Key M.2 (2242/2280 ) for PCIe SSD
• Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access

WHATS IN THE BOX:

• Giada DF612 Intel Core i3 High-end Digital Signage Player - Black x1
• WiFi Antenna x2
• User Manual x1

Specifications:

Product Code	DF612-1215U40N0G-GIA
Processor
CPU	Intel Core i3-1215U processor
Frequency	3.30 GHz (Up to 4.40 GHz )
Cores	6
BIOS	AMI EFI 64 Mbit
Memory
Type	DDR4-3200MHz
Socket	2 x SO-DIMM
Max Size	64GB
Graphics
GPU	Intel UHD Graphics
Graphic Engine	DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
HDMI	2 x HDMI (Max.4096 x 2304 @60 Hz)
DisplayPort	1 x DP (Max.7680 x 4320 @60 Hz)
Network
Controller	1 x Intel i219LM Gigabit Ethernet, 1 x Realtek RTL8111H Gigabit Ethernet
Interface	2 x RJ45
Mobile Network	1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
I/O
USB	4 x USB3.2 Gen2 (10 Gbps), 2 x USB2.0
USB Type-C	1 x USB Type-C3.2 Gen2 (10 Gbps)
Serial Port	1 x RS232, 1 x RS232/422/485
Audio	1 x MIC-IN, 1 x AUDIO-OUT
Button	1 x Power on, 1 x CLR-CMOS
Antenna	2 x Connector for Wi-Fi/BT, 2 x Connector for 3G/4G (Reserved)
Storage
M.2	1 x M-Key M.2 (2242/2280) for PCIe SSD
JAHC Tech
WatchDog Timer	0~255 Second Time Out Support
Auto Power On	Power Activated Automatically Start
Operation System
Windows	Windows 11 (64bit)
Linux	Linux Ubuntu (64bit)
Power
Power Type	DC-IN
Input Voltage	12V/19V
Environment
Operating Temperature	0°C ~ 40°C ( 32 °F ~ 104 °F ) at 0.7m/s Air Flow
Relative Humidity	95%@40°C (non-condensing)
Certification	CE, FCC Class B, CCC
Mounting	Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Construction	Metal
Colour	Black
Dimensions	20 x 15 x 4 cm
