Giada F110D fanless Mini PC, Celeron J1900 2.0GHz, No RAM, No HDD, Intel HD graphics, No OS

Overview:

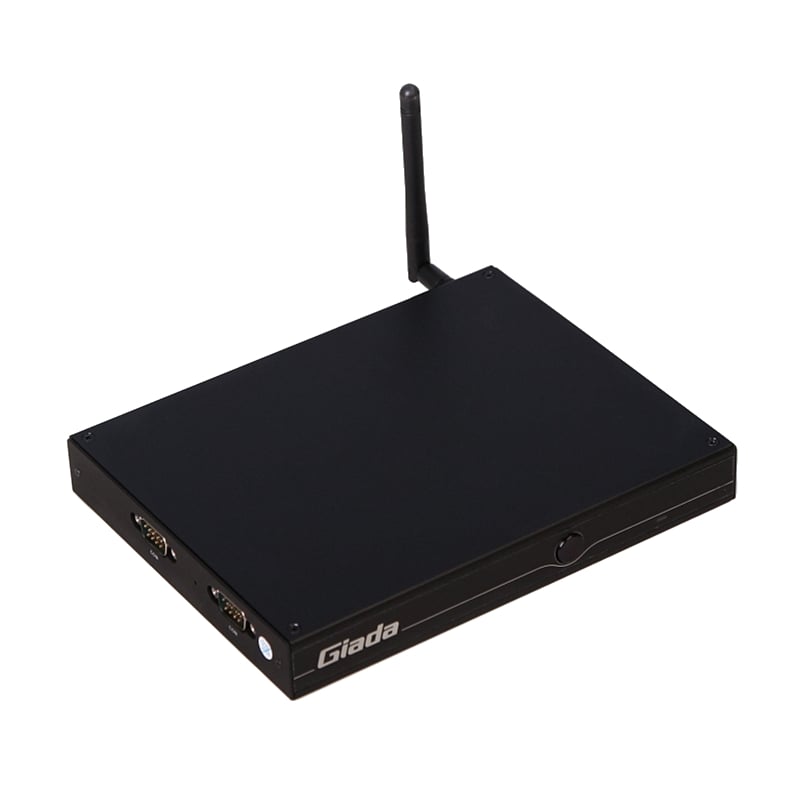

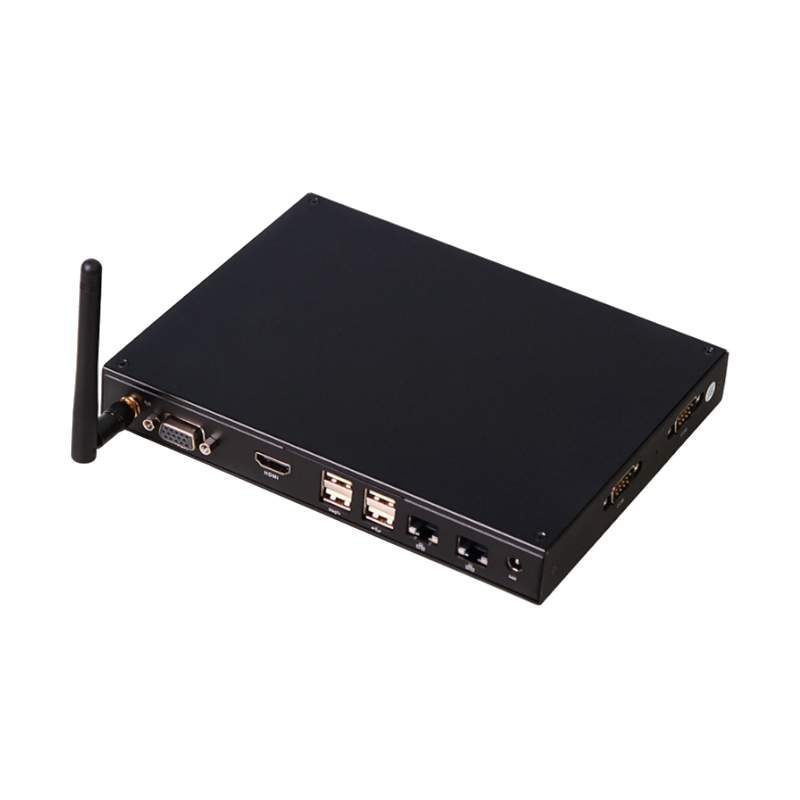

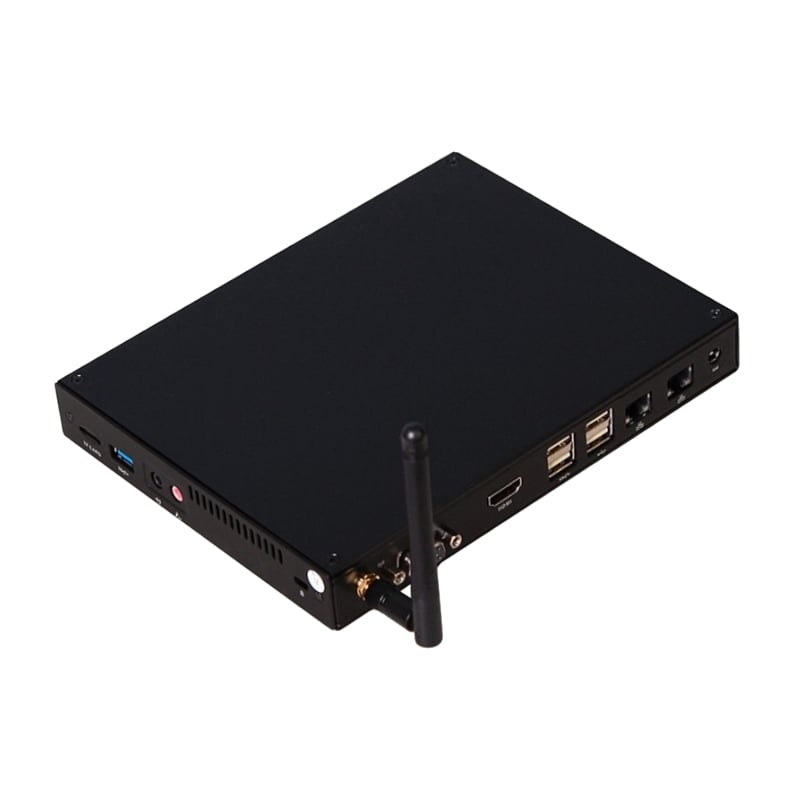

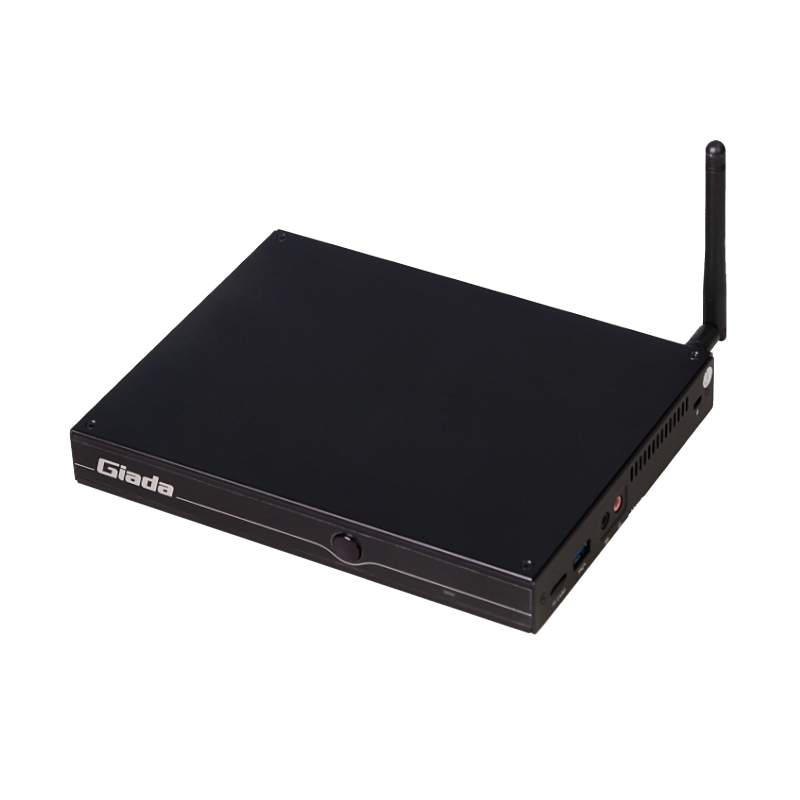

Giada F110D Fanless Celeron J1900 2xRJ45
The Giada F110D Fanless Digital Signage Player is an entry-level embedded computer and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. Its compact and powerful design brings organizations all the performance and efficiency of the Intel Celeron J1900 CPU, plus a VGA and HDMI output with up to 1080p resolution support. Its VGA, HDMI, USB ports, dual gigabit LAN, Windows and Linus OS support, and support for mSATA SSDs and mini-PCIe 4G cards make it very versatile. It can also be mounted in various ways thanks to its VESA mount support and can easily be hidden behind a monitor or large format display.

Features:

• Intel Celeron J1900 Processor
• 1 x DP, 1 x HDMI, Supporting 4K Display
• Onboard LPDDR4 4GB, 2 Channels (Optional: 8GB)
• 1 x RJ45 1 x M-key M.2 (2242/2280 ) for SSD
• 1 x Full-size Mini-PCIe for MSATA or 3G/4G

WHATS IN THE BOX:

• Giada F110D Intel Celeron Fanless Digital Signage Player - Black x1
• Power Cable x1
• User Manual x1

Specifications:

Product Code	F110D-J190030M0G-GIA
Processor
CPU	Intel Celeron J1900 Processor
Frequency	2.00GHz (Up to 2.42GHz)
BIOS	AMI Source Code
Chipset	SOC
Memory
Type	DDR3L-1333MHz
Socket	1 x SO-DIMM
Max Size	8GB
Graphics
GPU	Intel HD Graphics
Graphic Engine	DirectX 11.1, OpenGL 3.0, OCL 1.1, OpenGL ES 2.0
HDMI	1 x HDMI (Max.1920x1080@60Hz)
VGA	1 x VGA (Max. 2048 x 1280@60Hz)
Network
Controller	2 x Realtek 8111H Gigabit Ethernet
Interface	2 x RJ45
I/O
USB	1 x USB 3.0, 4 x USB 2.0
Serial Port	2 x RS232
Audio	1 x MIC-IN, 1 x AUDIO-OUT & SPDIF
Mini-PCIe1#	1 x Full-size Mini-PCIe for mSATA/3G/4G
Mini-PCIe2#	1 x Half-size Mini-PCIe for WiFi/BT
SIM	1 x SIM Slot
Storage
SATA	1 x 2.5" SATA
mSATA	1 x Full-size mSATA
Card Reader	1 x TF Card Reader
JAHC Tech
WatchDog Timer	0~255 Second Time Out Support
Auto Power On	Power Activated Automatically Start
RTC	Set Up Independently Every day, A Week as a Cycle
Remote Control	By IR Controller for Power On
Wake On Lan	Yes
Operation System
Windows	Windows 7/8.1/10(64-bit)
Linux	Support
Power
Power Type	DC-IN
Input Voltage	19V/2.1A
Environment
Operating Temperature	0°C ~ 40°C ( 32 °F ~ 104 °F ) at 0.7m/s Air Flow
Relative Humidity	95%@40°C (non-condensing)
Certification	CE, FCC Class B, CCC
Fanless	Yes
Mounting	Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Construction	Metal
Colour	Black
Dimensions	18.9 x 14.8 x 2.6 cm
