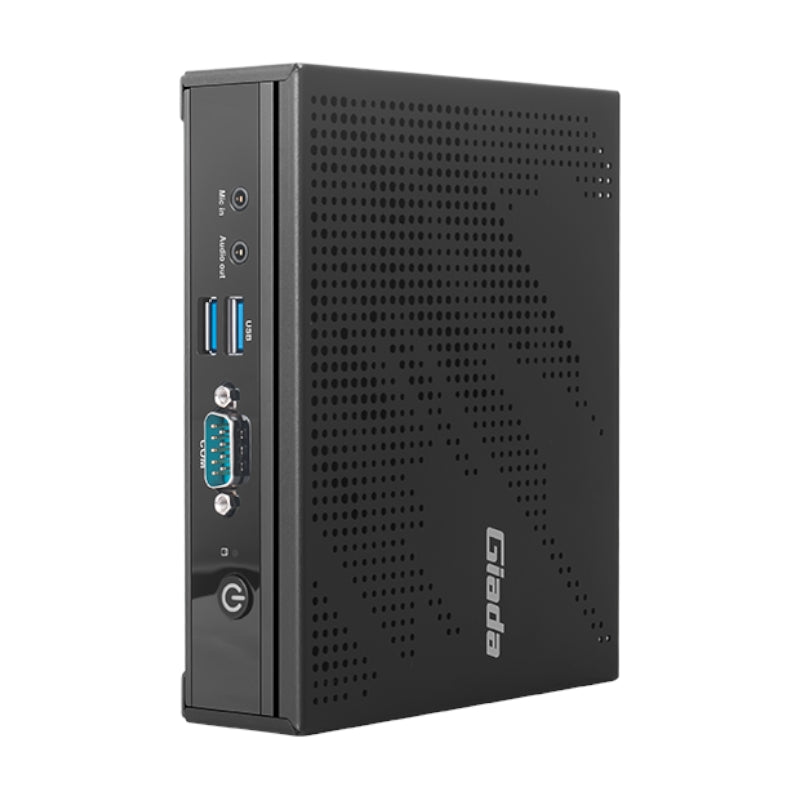

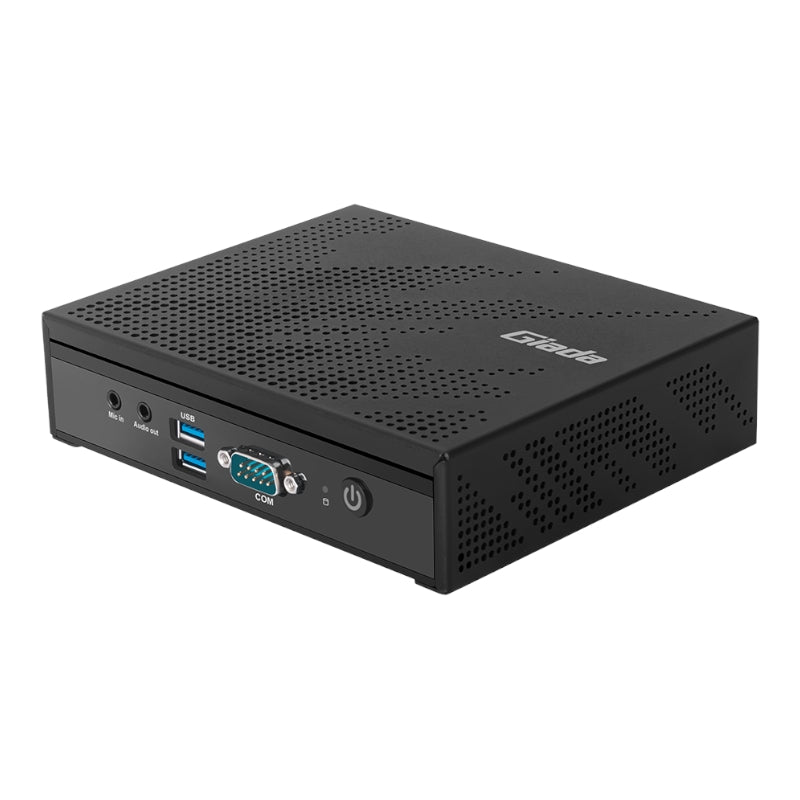

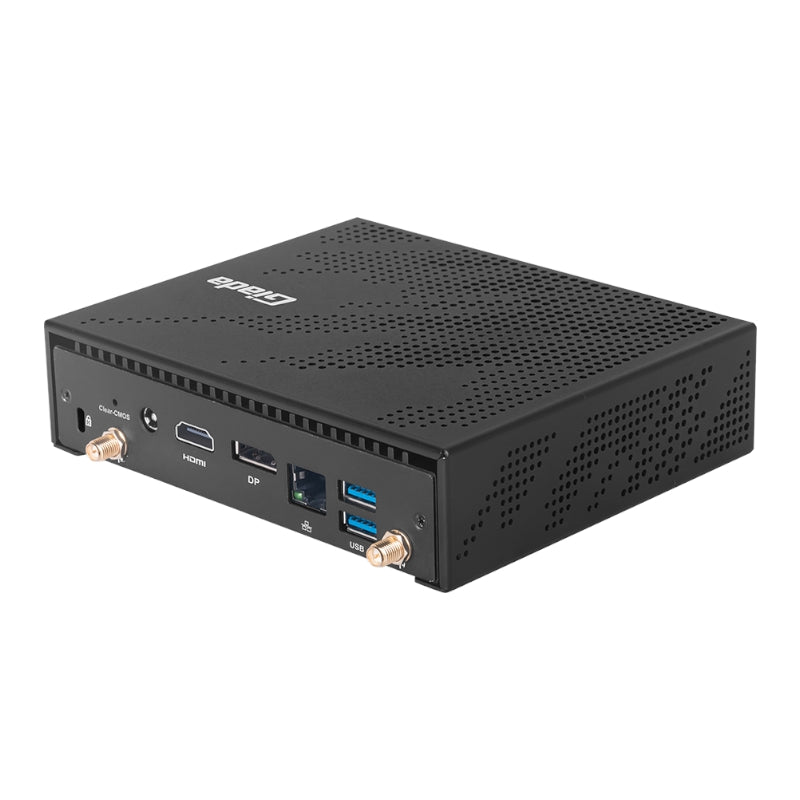

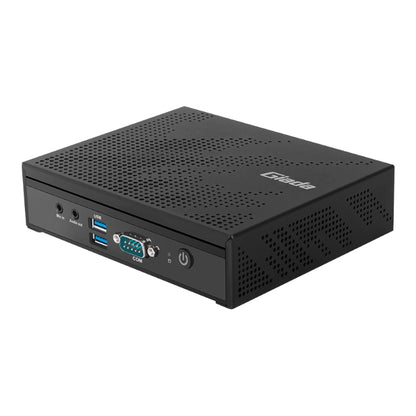

Giada VM27 Mini PC, Celeron N6210 2.6GHz, 4GB RAM, 64GB eMMC, Intet HD Graphics, No OS

Overview:

VM27

• Long Life Cycle and Fanless
• Intel Elkhart Lake Inside
• Support 4K Display

Features:

Intel Elkhart Lake Processors Long Life Cycle Product
VM27 is based on Intel IOTG roadmap with 7+ years lifespan. It supports Pentium quad-core N6415 and Celeron dual-core N6210 processors. The onboard dual-channel LPDDR4 and eMMC5.1 storage ensure its stable operating in harsh environments.

Supporting 4K Video Playback" style="margin: 0px; padding: 0px; box-sizing: border-box; max-width: 100%; border: none; width: 957.5px; transition: transform 3s ease 0s;">

Dual Display Outputs Supporting 4K Video Playback
The player adopts Intel UHD Graphics for 10th Gen Intel Processors and it has up to 2x performance improvement in graphics over previous generation. It supports vivid dual 1080p video or one 4K video decoding. Its HDMI 2.0a and DisplayPort 1.2 ports can also support resolutions up to 4096 x2160@60Hz.

Fanless Design
With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada device applicable in mission critical applications.

Specifications:

Product Code	VM27-N621042E6G-GIA
CPU
CPU	Intel Celeron N6210 processor
	Intel Pentium N6415 processor
Frequency	2.60 GHz/3.00 GHz
Chipset	Soc
Processing Units	2 Cores/4 Cores
TDP	6.5 W/6.5 W
System
System Memory	4 GB, Onboard LPDDR4-2666 MHz (Optional: 8 GB)
Storage	64 GB, Onboard eMMC5.1 (Optional: 32 GB)
	1 x Full-size Mini-PCIe for MSATA
TPM	FTPM
Watchdog Timer	Yes
Auto Power On	Yes
RTC	Set up independently every day, a week as a cycle
Remo on	Yes
Power Requirement	DC-IN, 19 V/2.37 A
Dimensions	154mm x 125.5 mm x 40mm (6.06" x 4.94" x 1.57")
Construction	Metal, Black
Operating System	Windows 10 (64bit) /Windows 11 (64bit)
	Linux Ubuntu (64bit)
Operating Temperature	0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
Humidity	95% @ 45°C (non-condensing)
Certifications	CE, FCC Class B
Network
Network Controller	1 x Realtek RTL 8111H Gigabit Ethernet
Ethernet Interface	1 x RJ45
Wi-Fi/BT	1 x E-Key M.2 (2230) for Wi-Fi/BT
	Support Wi-Fi 5, Wi-Fi 6
Mobile Network	NA
Display
GPU	Intel UHD Graphics
Graphic Engine	DirectX 12.1, OpenGL 3.0, OpenCL 1.1
	Intel Quick Sync Video
Display Interface	1 x DP (Max.4096 x 2160 @60 Hz)
	1 x HDMI (Max.4096 x 2160 @60 Hz)
I/O interface
USB	4 x USB3.2 Gen2 (10 Gbps)
Serial Port	1 x RS232
Audio	1 x MIC-IN, 1 x AUDIO-OUT
Button	1 x Power on, 1 x CLR-CMOS
Antenna	2 x Connector for Wi-Fi/BT
