Gigabyte B650M DS3H AMD Ryzen 7000 Series Socket AM5 mATX Motherboard

Overview:

B650M DS3H (rev. 1.0)
AMD B650 Chipset

• AMD Socket AM5:Supports AMD Ryzen 7000 Series Processors
• Unparalleled Performance:Direct 6+2+1 Phases Digital VRM Solution
• Dual Channel DDR5:4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
• SuperSpeed Storage:2*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
• PCIe x16 EZ-Latch with Quick Release & Screwless Design
• Fast Networks:2.5GbE LAN
• Extended Connectivity:2*DP, HDMI, 2*USB-C 10Gb/s
• Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

Features:

UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

Thermal Design
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.

CONNECTIVITY

• 2.5GbE LAN
• Front & Rear USB-C 10Gb/s
• Hi-Fi Audio

CONNECTIVITY
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.

PERSONALIZATION

• RGB FUSION
• UEFI BIOS
• GIGABYTE Control Center
• Multi-Key

PERSONALIZATION
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.

ULTRA DURABLE

• DIY Friendly
• Q-Flash Plus

ULTRA DURABLE
GIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.

Specifications:

Product Code	GA-B650M-DS3H
CPU	1. AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors
Chipset	1. AMD B650
Memory	1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT / s memory modules
	2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	3. Dual channel memory architecture
	4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO ) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor:
	1. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
	* Support for DisplayPort 1.4 version and HDR.
	2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version and HDCP 2.3.
	** Support native HDMI 2.1 TMDS compatible ports.
	(Graphics specifications may vary depending on CPU support.)
	Support for up to 3 displays at the same time
Audio	1. Realtek Audio CODEC
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN	1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	CPU:
	1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
	Chipset:
	1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface	CPU:
	1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
	Chipset:
	1. 4 x SATA 6Gb/s connectors
	RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
	RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU:
	1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
	2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	CPU + USB 2.0 Hub:
	1. 4 x USB 2.0/1.1 ports on the back panel
	Chipset:
	1. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
	2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	3. 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 8-pin ATX 12V power connector
	3. 1 x CPU fan header
	4. 3 x system fan headers
	5. 1 x addressable LED strip header
	6. 1 x RGB LED strip header
	7. 2 x M.2 Socket 3 connectors
	8. 4 x SATA 6Gb/s connectors
	9. 1 x front panel header
	10. 1 x front panel audio header
	11. 1 x USB Type-C header, with USB 3.2 Gen 2 support
	12. 1 x USB 3.2 Gen 1 header
	13. 2 x USB 2.0/1.1 headers
	14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	15. 1 x serial port header
	16. 1 x reset button
	17. 1 x reset jumper
	18. 1 x Clear CMOS jumper

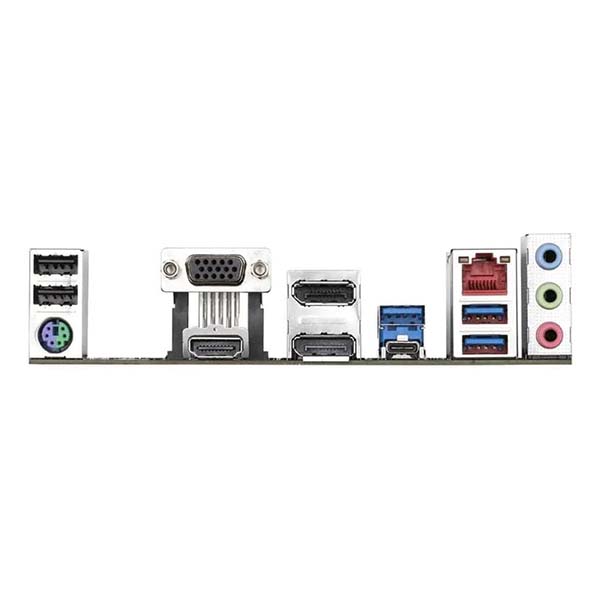

Back Panel Connectors	1. 4 x USB 2.0/1.1 ports
	2. 1 x PS/2 keyboard/mouse port
	3. 2 x DisplayPorts
	4. 1 x HDMI port
	5. 1 x USB 3.2 Gen 2 Type-A port (red)
	6. 1 x USB Type-C port, with USB 3.2 Gen 2 support
	7. 1 x Q-Flash Plus button
	8. 1 x RJ-45 port
	9. 2 x USB 3.2 Gen 1 ports
	10. 3 x audio jacks
I/O Controller	1. iTE I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Fan fail warning
	5. Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1. 1 x 256 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for GIGABYTE Control Center (GCC)
	* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	2. Support for Q-Flash
	3. Support for Q-Flash Plus
Bundled Software	1. Norton Internet Security (OEM version)
	2. LAN bandwidth management software
Operating System	1. Support for Windows 11 64-bit
	2. Support for Windows 10 64-bit
Form Factor	1. Micro ATX Form Factor, 24.4cm x 24.4cm
