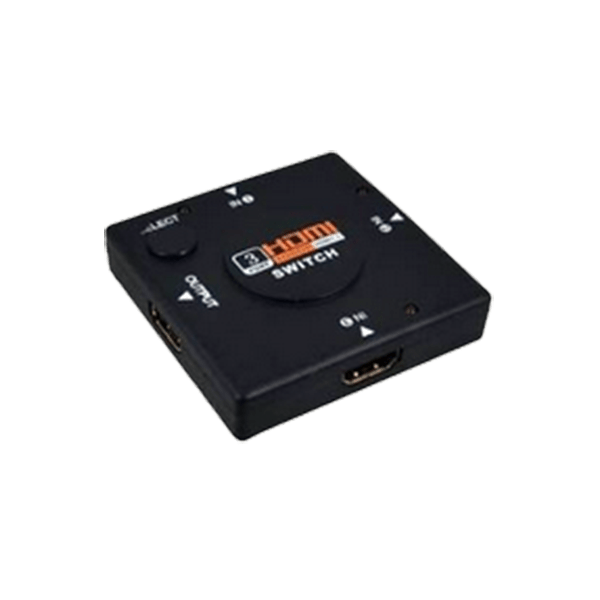

HDMI Switch 3X Input & 1X Output

These 3 HDMI input to 1 HDMI output switch supports resolutions up to 4K*2K@60Hz. The switch is built to conveniently switch by use of the press button, IR remote controller, and this 3 port HDMI switch supports the auto-detect input signal function. If the signal of the selected port is currently displaying cut off this HDMI switch will auto-switch to the next input signal. It is backed with a bandwidth capability of up to 18Gbs and supports HDR. The switch consists of a 5V power supply port and uses high-performance chips to ensure a stable output of high-definition picture quality

Features

• 3 in 1 out HDMI switch
• Support resolution up to 4K*2K@60Hz
• Port select: press button, IR remote controller, auto-detection input signal.
• Bandwidth: 18Gbps
• Support HDR.
• LED indicators for each of the 3 HDMI input signals.
• Power LED indicator
• Power Supply Port
• Infrared Interface
• Built-in ITE chip function: The 3 in 1 out HDMI4K high-definition automatic switcher has a built-in ITE high-quality chip, which makes the transmission stable, without flashing the screen or smearing, to avoid bad phenomena.
• Plug-resistant: Gold plating process, support multiple hot-swap, plug and play.
• The longest distance: HDMI2.0 transmission distance is 3 meters, HDMI1.4 transmission distance is 15 meters

Auto-detection input signal

• If the signal of the selected port is cut off, it will auto-switching to the next port.
• When the user inserts an HDMI signal into an unused port, the output signal will jump to the priority display.
• It cannot switch to the unused port.

Interface

• 3 x Female HDMI input ports
• 1 x Female HDMI output port
• 1 x 5V DC power port

Specifications

• Operation humidity range: 5 to 90% RH
• Operation temperature range: -10? to 60 ?
• Specifications: HDMI 2.0 (3D, colour depth); HDCP 2.2
• HDMI version: 2.0 (backward compatible)
• Power: DC5V 1A

Product applicable occasions

• Large-screen projection display projectors, television shopping malls, computer studios, lecture halls, command and control centers, hotels, multimedia conference rooms, audio-visual exhibition halls, securities market, and other occasions.

What's in the box

1 x 3x1 MT-HD301 HDMI Switch
1 x USB Power Cable
1 x IR Remote
1 x User Manual
