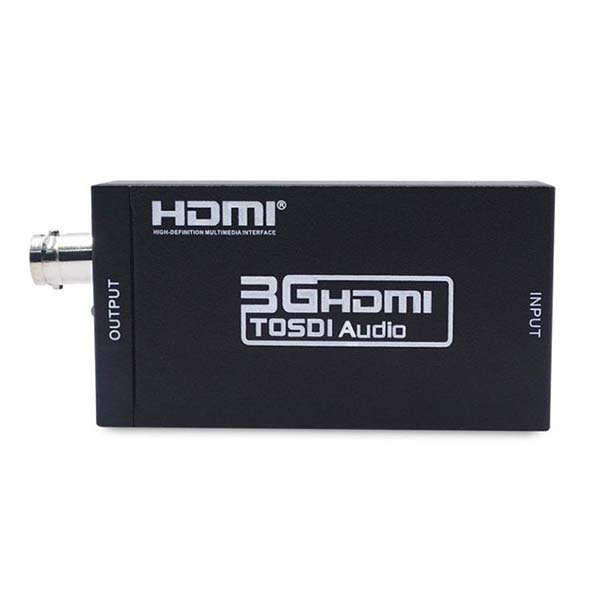

HDMI TO SDI CONVERTER

SDI to HDMI Converter Uses a Unique Technology

Delivering Clear and Vivid Pictures on Your HDMI Displays

Supports Auto Resolution Detection of HD-SDI, SD-SDI and 3G-SDI

Embedded SDI/HD-SDI Audio is Supported in the HDMI Output Allowing a Convenient Single Cable Audio/Video Connection

Supports Resolutions up to 1080P Gives this Unit a Superior Quality while Maintaining its High Performance

Date rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s

SD-SDI Signal is as Far as 460 Meters Away HD-SDI is as Far as 230 Meters Away

Plug and play:

Supports Resolutions: SD 525i, 625i, HD720P@24HZ, 720P@25HZ, 720P@30H

720P@50HZ, 720P@60HZ, HD 1080i@50HZ; 1080i@60HZ; HD 1080P@24HZ, 1080P@25HZ, 1080P@30HZ, 1080P@50HZ,1080P@60HZ

Specification

Number of SDI In :1

Number of HDMI Out :1

Support :HDCP 1.2 Compliant, Deep Color 36bit, 1080p, 3D Display

DTV/HDTV :1080i, 720p, 720i, 576p, 576i, 480p, 480i, 1080p

VGA :1920x1080, 1600x1200, 1360x768, 1280x1024, 1280x800, 1280x768, 1280x720, 1024x768, 800x600, 640x480

Video Input Signal :SD HD 3G SDI

Other Ports :DC Port

Dimensions /:95x43x23

Net Weight (g) :125

Power :5V DC Power Supply

HDMI TO SDI CONVERTER: HDMI-SDI
