Hikvision 16x 10/100 Mbps RJ45 PoE Ports & 2 Gigabit combo Port L2 Smart Managed Switch, IEEE 802.3at/af standard for PoE ports, AF/at camera Can reach up to 300 m in extend mode, Ports 1 to 8 high priority Ports, 7.2 Gbps switching capacity, 230 W PoE Power budget, 30 W Maximum Port Power, Fan-free design, 16x 10/100 Mbps PoE Port, 2x 1Gbps combo Ports

Overview:

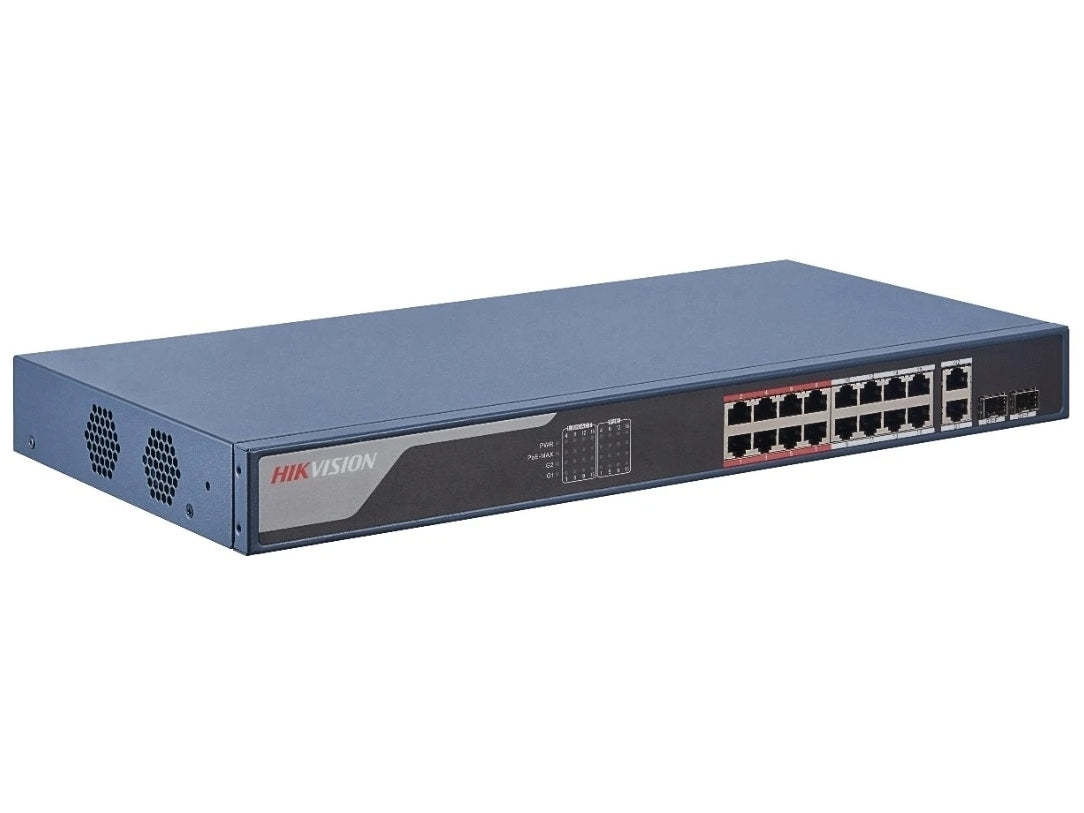

DS-3E1318P-EI - 16 Port Fast Ethernet Smart POE Switch

• 16 x 100 Mbps PoE RJ45 ports, 2 x gigabit combos.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode.

Specifications:

Product Code	DS-3E1318P-EI
Network Parameters
Ports	16 x 10/100 Mbps PoE port,2 x 1 Gbps combo
Port Type	RJ45 port, full duplex, MDIMDI-X adaptive
Standard	IEEE 802.3,IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
High Priority Ports	Ports 1 to 8
Forwarding Mode	Store-and-forward switching
Working Mode	Standard mode (default), Extend mode
MAC Address Table	16 K
Switching Capacity	7.2 Gbps
Packet Forwarding Rate	5.3568 Mpps
Internal Cache	4 Mbits
PoE Power Supply
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+)
	Mid-span: 4/5(+), 7/8(-)
	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port	PoE: Ports 1 to 16
Max. Port Power	30 W
PoE Power Budget	230 W
Software Function
Device Maintenance	Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
General
Shell	Metal material, fan-free design
Net Weight	2.59 kg (5.71 lb)
Gross Weight	3.680 kg (8.11 lb)
Dimensions (W x H x D)	440.00 mm x 44.00 mm x 220.80 mm (17.32'' x 1.73'' x 8.69'')
Operating Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	100-240 VAC, 50/60 Hz, Max. 2.5 A
Max. Power Consumption	250 W
Approval
EMC	FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015), RCM (AS/NZS CISPR 32: 2015), IC (ICES-003: Issue 6, 2016)
Safety	UL (UL 60950-1), CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013), CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry	CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
