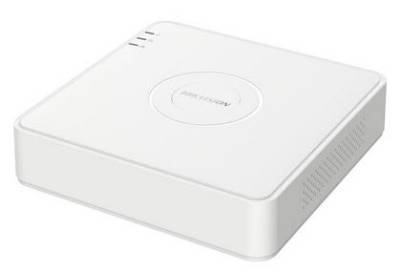

Hikvision 4-ch 720p Mini 1U H.265 DVR - supports AcuSense

Hikvision 4-ch 720p Mini 1U H.265 DVR - supports AcuSense, H.265 Pro+ / H.265 Pro / H.265 Video Compression, HDTVI / AHD / CVI / CVBS / IP Video inputs, Audio via Coaxial Cable, Human/vehicle analysis, 1-ch (Up to 5-ch) IP Video Input, Up to 1080p Resolution, 4-ch Analog Video Input, BNC Interface, 1-ch HDMI Output, 1-ch VGA Output, HDMI / VGA simultaneous Output, 1-ch RCA audio Input, 1-ch audio Output, 4-ch synchronous playback, 1x RJ45 10/100 Mbps Self-Adaptive Ethernet Interface, Up to 4 TB capacity SATA Drive, 2x USB 2.0

Features:

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video inputs
• Audio via coaxial cable
• Up to 5-ch IP camera inputs (up to 2 MP)
• Up to 1080p Lite@30 fps encoding capability
• Max. 1200 m for 720p HDTVI signal

Specifications:

Specifications
Product Code	DS-7104HGHI-M1
Motion Detection 2.0
Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
	Quick search by object or event type is supported;
Video and Audio
IP Video Input	1-ch (up to 5-ch)
	Up to 1080p resolution
	Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input	4-ch
	BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input	1080p25, 1080p30, 720p25, 720p30
AHD Input	1080p25, 1080p30, 720p25, 720p30
HDCVI Input	1080p25, 1080p30, 720p25, 720p30
CVBS Input	Support
HDMI Output	1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
VGA Output	1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Video Output Mode	HDMI/VGA simultaneous output
Audio Input	1-ch RCA (2.0 Vp-p, 1 KΩ)
	4-ch via coaxial cable
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	Reuse the first audio input
Synchronous playback	4-ch
Recording
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution	For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
	For 720p stream access: 720p/WD1/4CIF/VGA/CIF
	For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate	Main stream:
	For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
	For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
	For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
	Sub-stream:
	4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate	32 Kbps to 4 Mbps
Stream Type	Video, Video & Audio
Audio Compression	G.711u
Audio Bitrate	64 Kbps
Network
Total Bandwidth	64 Mbps
Network Protocol	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS
Remote Connection	32
Network Interface	1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA	1 SATA interface
Capacity	Up to 4 TB capacity for each disk
USB Interface	Rear panel: 2 x USB 2.0
Alarm In/Out	N/A
General
Power Supply	12 VDC, 1.5 A
Consumption	≤ 16 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity	10% to 90%
Dimension (W x D x H)	200 x 200 x 48 mm (7.9 x 7.9 x 1.9 inch)
Weight	≤ 0.8 kg (without HDD, 1.8 lb.)
