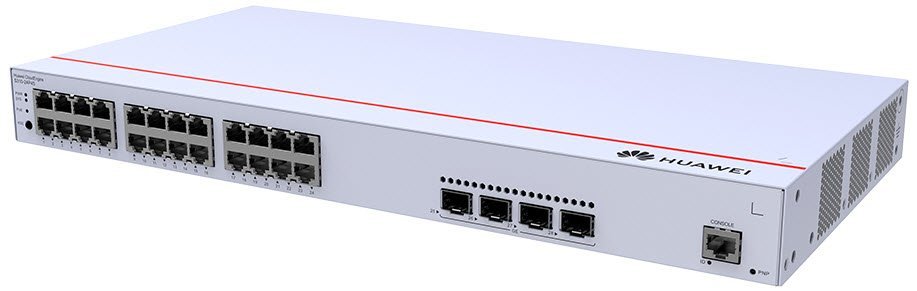

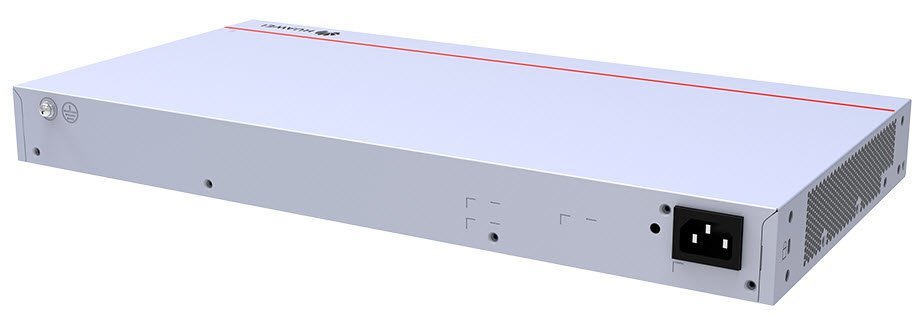

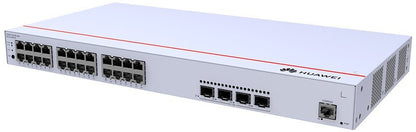

Huawei S310-24P4S CloudEngine Switch, L2+ (static router), 24x10/100/1000BASE-T ports, 4xGE SFP ports, POE+(370W),

Overview:

Based on the next-generation high-performance hardware and software platform, Huawei CloudEngine S310 series switches stand out with features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. In addition, CloudEngine S310 series switches support multiple Layer 3 routing protocols, delivering higher performance and more powerful service processing capabilities. These make them ideal for various application scenarios, such as enterprise campus access and gigabit to the desktop.

Features:

• 24 x 10/100/1000BASE-T ports, 4 x GE SFP ports
• AC power supply
• PoE+
• Packet forwarding rate: 42 Mpps
• Switching capacity: 260 Gbit/s

Flexible Ethernet Networking:

• In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), CloudEngine S310 series switches support Huawei-developed Smart Ethernet Protection (SEP) technology and the latest Ethernet Ring Protection Switching (ERPS) standard in the industry. ERPS is defined in ITU-T G.8032. It provides millisecond-level protection switching based on traditional Ethernet MAC and bridging functions.
• CloudEngine S310 series switches support the Smart Link function, which implements backup of uplinks. One switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices.

Diversified Security Control:

• CloudEngine S310 series switches support MAC address authentication and 802.1X authentication and can dynamically deliver policies (VLAN, QoS, and ACL) for users. CloudEngine S310 series switches support port-based 802.1X authentication, MAC address authentication, and multi-mode authentication.
• CloudEngine S310 series switches provide a series of mechanisms to defend against DoS attacks and user-targeted attacks. DoS attacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-targeted attacks include bogus DHCP server attacks, IP/MAC spoofing attacks, DHCP request flood attacks, and attacks with variable DHCP CHADDR values in packets.
• CloudEngine S310 series switches can generate and maintain DHCP snooping binding entries and discard invalid packets that do not match the binding entries. DHCP snooping trusted and untrusted ports can be specified to ensure that users connect only to the authorized DHCP server.
• CloudEngine S310 series switches support strict ARP entry learning, which prevents ARP spoofing from exhausting ARP entries and ensures Internet access of authorized users.

Easy Operations and Maintenance:

• CloudEngine S310 series switches support Easy Operation, a solution that provides zero-touch deployment, replacement of faulty devices without additional configuration, USB-based deployment, batch configuration, and batch remote upgrade. The Easy Operation solution facilitates device deployment, upgrade, service provisioning, and other management and maintenance operations, and also greatly reduces O&M costs. CloudEngine S310 series switches can be managed and maintained using SNMPv1, SNMPv2c, SNMPv3, CLI, web system, or SSHv2.0. Additionally, they support remote network monitoring (RMON), multiple log hosts, port traffic statistics collection, and network quality analysis, facilitating network optimization and reconstruction.
• CloudEngine S310 series switches support the MUX VLAN function. MUX VLAN contains a principal VLAN and multiple subordinate VLANs. Subordinate VLANs can be classified into group VLANs and separate VLANs. Subordinate VLANs can communicate with the principal VLAN. Ports on a subordinate group VLAN can communicate with each other, whereas ports on a subordinate separate VLAN cannot communicate with each other. Additionally, CloudEngine S310 series switches support VLAN Central Management Protocol (VCMP) and VLAN-based Spanning Tree (VBST).
• Note: All models that provide USB ports support this function.

PoE Power Supply: PoE models of CloudEngine S310 series switches provide the following capabilities:

• Fast PoE: PoE switches can supply power to PDs within seconds upon power-on, which is different from common switches that supply power to PDs in 1 to 3 minutes after power modules are installed. When a PoE switch restarts due to a power failure, it continues to supply power to PDs immediately after being powered on without waiting until it completes the restart. This greatly shortens the power-off time of PDs.
• Perpetual PoE: When a PoE switch restarts (for example, during software upgrade), it continues to supply power to downstream PDs, ensuring uninterrupted PoE power supply.

Smart Upgrade:

• Based on Huawei Online Upgrade Platform (HOUP), CloudEngine S310 series switches support smart upgrade. They obtain the version upgrade path from the HOUP and download the new system software. The upgrade process is highly automated as it supports oneclick upgrade. In addition, this feature supports system software pre-loading, which greatly shortens the upgrade time and reduces the service interruption time.
• Smart upgrade greatly simplifies device upgrade operations, making it possible for customers to upgrade versions by themselves. This feature helps customers reduce considerable maintenance costs. In addition, the upgrade policy of the HOUP is used to standardize the upgrade path, which greatly reduces the risk of upgrade failure.

Cloud Management:

• CloudEngine S310 series switches support both cloud management and on-premises management modes. These two management modes can be flexibly switched as required to achieve smooth evolution while maximizing return on investment (ROI).
• The Huawei cloud management platform allows users to configure, monitor, and inspect switches on the cloud, reducing onsite deployment and O&M manpower costs and decreasing network OPEX.

OPS:

• The Open Programmability System (OPS) is an open programmable system based on the Python language. IT administrators can program the O&M functions of a switch through Python scripts to quickly innovate functions and implement intelligent O&M.

Specifications:

Product Code	98012201
- Basic dimensions (excluding the parts protruding from the body)	43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.)
- Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel)	43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1 U
Weight without packaging [kg(lb)]	2.92 kg (6.44 lb)
Weight with packaging [kg(lb)]	3.79 kg (8.36 lb)
Typical power consumption [W]	40.07 W
Typical heat dissipation [BTU/hour]	136.72 BTU/hour
Maximum power consumption [W]	- Without PoE: 47.1 W
	- Full PoE load: 491.66 W (PoE: 400 W)
Maximum heat dissipation [BTU/hour]	- Without PoE: 160.71
	- Full PoE load: 1677.59
Static power consumption [W]	30.82 W
MTBF [year]	60.18 year
MTTR [hour]	2 hour
Noise at normal temperature (acoustic power) [dB(A)]	49.3 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	37.3 dB(A)
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Redundant power supply	Not supported
Long-term operating temperature [ C(F)]	-5 C to +50 C (23 F to 122 F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [ C(F)]	- When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1 C (1.8 F) every time the altitude increases by 220 m (722 ft.).
	- Devices cannot start when the temperature is lower than 0 C (32 F).
Storage temperature [ C(F)]	-40 C to +70 C (-40 F to +158 F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100-240 V AC; 50/60 Hz
Input voltage range [V]	AC input: 90-290 V AC; 45-65 Hz
Maximum input current [A]	6 A
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	Not supported
USB	Not supported
RTC	Not supported
RPS input	Not supported
Service port surge protection [kV]	Common mode: 7 kV
Power supply surge protection [kV]	Differential mode: 6 kV; common mode: 6 kV
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
