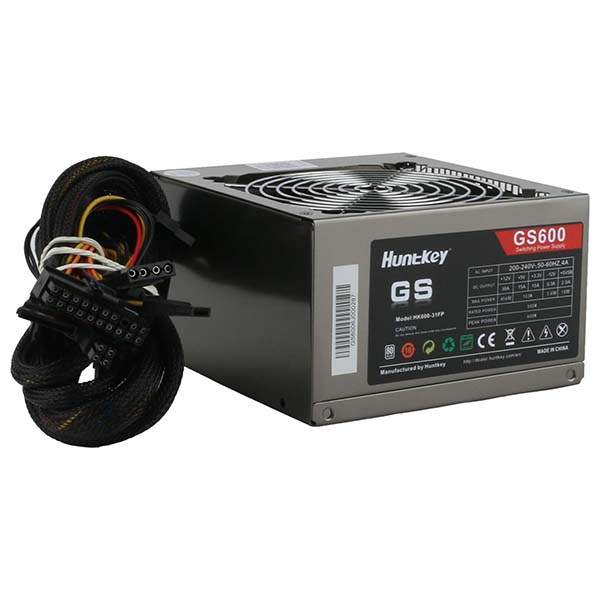

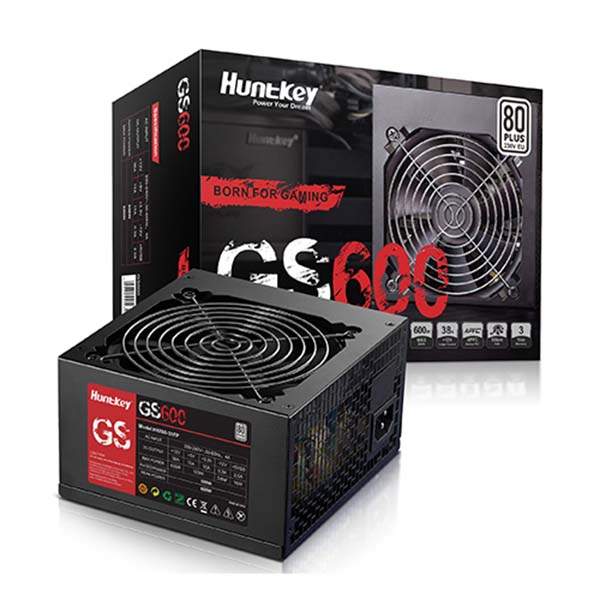

Huntkey GS-600 600W Power Supply

Huntkey GS-600 600W Power Supply - Grey - Certified bt 80 PLUS - Compatible with ATX 12V 2.31 - Haswell/Broadwell/Skylake series CPU ready - Support Intel and AMD multi-core CPU - Efficiency up to 80percent at typical load - High-end VGA card support with 2 × PCI-E 8pin connector - Powerful dual +12V rails offer stability and support high-end graphic cards and PC system Low ripple noise - Intelligent control smart fan design - Multi-protection: OPP/OVP/SCP/OCP.

Rated 500W Power Supply with +12V single-rail
500W stable and continuous power delivers unprecedented gaming experience +12V single-rail to support high-end CPUs and graphic cards

＞85% Energy Efficiency & 80 PLUS Certified
Exceeding 85% energy efficiency at 50% load means less heat generation and lower electricity bills

Reliable Power Supply with Active PFC
Active Power Factor Correction provides cleaner and more reliable power with lower ripple and noise

Excellent Heat Dissipation & Soundless Performance
12cm thermally sensitive fan for optimal heat dissipation and ultra silent performance

Ultra Durable Covering Shell

General

• Brand: Huntkey
• Package Dimensions: 250 x 160 x 100mm (L x W x H)
• Categories: Computers > Components > Power Supplies
• LSN: X2W-R68-4AH-7
• Barcode: 5949958000029
• Colour: Grey
• Model Number: GS-600
• Type: Power Supply

Features

• Certified 80 PLUS
• Compatible with ATX 12V 2.31, Haswell/Broadwell/Skylake series CPU
• Support Intel & AMD multi-core CPUs
• Efficiency up to 80% at typical loads
• High-end VGA card support with 2 × PCI-E 8pin connectors
• Powerful dual +12V rails
• H ventilation design for optimal heat dissipation
• Low ripple noise
• Intelligently controlled smart fan design

Specification

Model
GS600

Power
600 Watts

Type
ATX 12V

PFC
Active PFC

Input Voltage
200-240Vac

Input Current
4A Max at 230Vac/50Hz

Input Frequency
50-60Hz

Dimensions
150mm(L) x 140mm(W) x 96mm(H)

Fan Type
12cm, Thermal Sensitive fan

Topological Structure
Double Forward

Power Good Signal
100-150ms

Power Efficiency
80 PLUS 20% & 100%b Load : ~ 82% 50% Load : ~ 85%

MTBF
_/50,000 Hours

Protection
SVP, OPP, OVP, UVP

Safety Standards
CE, CB
