Keychron V5 Max Wireless Custom Keyboard - RED Switch

Keychron V5 Max Wireless Custom Keyboard - RED Switch

Keychron

V5M-D1

R 2,349.00
R 0.00 R 2,349.00
Taxes included. Shipping calculated at checkout.

Online Only

Complete your setup
Loading recommendations...
Nationwide delivery
Delivery calculated at checkout. Shipping info
Secure checkout
Pay securely with trusted payment providers.
Warranty & returns
Warranty included. Returns policy
Buy now. Pay later.
Pay in 4 interest-free payments of R 587.25 with Payflex.

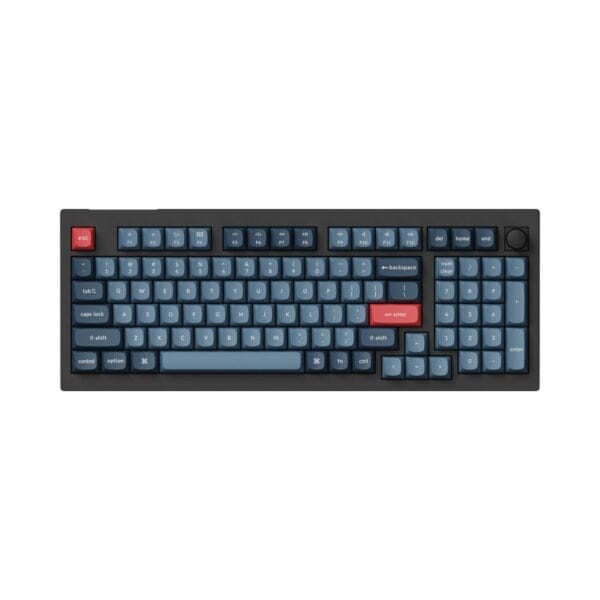

The Keychron V5 Max Wireless Custom Keyboard - RED Switch offers an 1800 compact layout, providing a full set of keys, including a numpad, in a space-efficient design. It features both 2.4 GHz wireless connectivity with a 1000 Hz polling rate and Bluetooth 5.1, allowing seamless multitasking across multiple devices. The gasket mount design, combined with sound-absorbing foam, ensures a comfortable and quiet typing experience.

Double-shot PBT keycaps provide durability and a premium feel. With QMK/VIA support, users can fully customize key functions and macros to suit their preferences. Hot-swappable sockets enable easy switch customization without soldering, and south-facing RGB LEDs offer vibrant backlighting. The V5 Max is compatible with both Mac and Windows systems, featuring a system toggle and additional keycaps for each. Exclusive Gateron Jupiter mechanical switches in the fully assembled version offer a lifespan of up to 80 million keystrokes, ensuring long-lasting performance.

FEATURES:

  • Customisable keyboard
  • 2.4GHz & Bluetooth connection
  • ARM architecture MCU with 256K flash.
  • OSA profile double-shot PBT keycaps
  • Gasket mount design with PC plate

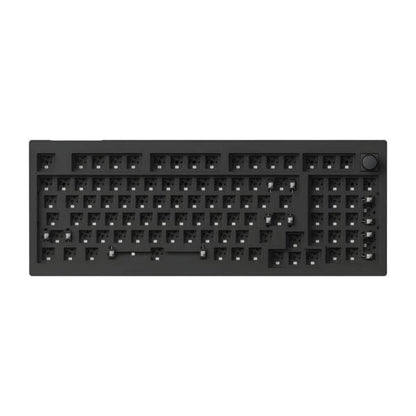

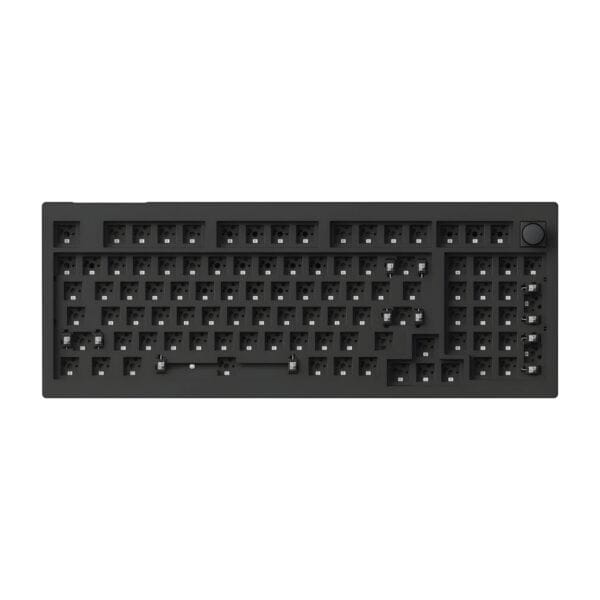

  • Hot-swappable
  • South-facing RGB LED lights
  • Gateron Jupiter RED switches
  • Screw-in PCB stabilisers

SPECIFICATIONS:

  • Colour: Black
  • Material: ABS Plastic
  • Plate Material: PC
  • Mount Style: Gasket Mount Design
  • Battery: 4000mAh rechargeable li-polymer battery
  • Charging Time: ± 5 hours
  • Bluetooth Version: 5.1
  • Compatible System: Windows/macOS/Linux
  • N-Key Rollover (NKRO): Yes for both wireless and wired modes
  • Hot-swappable: Yes.
  • MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
  • Switches: Gateron Jupiter (Fully Assembled Version)
  • Backlight: South-facing RGB LED
  • Stabiliser: Screw-in PCB stabs

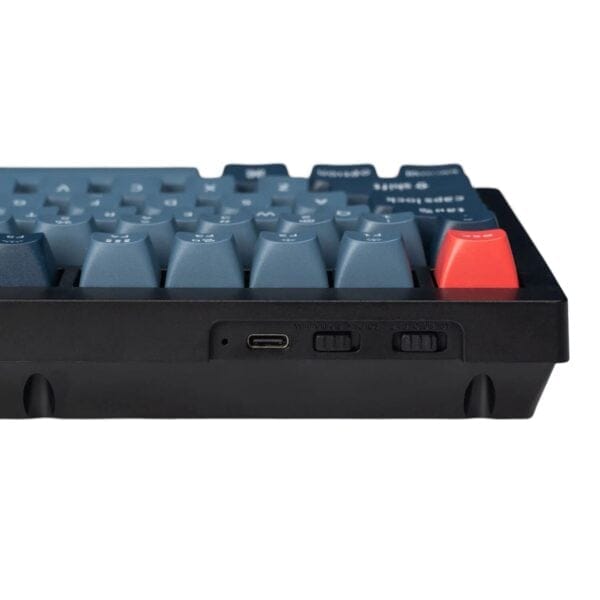

  • Charging Port: USB Type-C
  • Cable: Type-C cable + Type-A to Type-C adapter
  • Operating Environment: -10℃ to 50℃

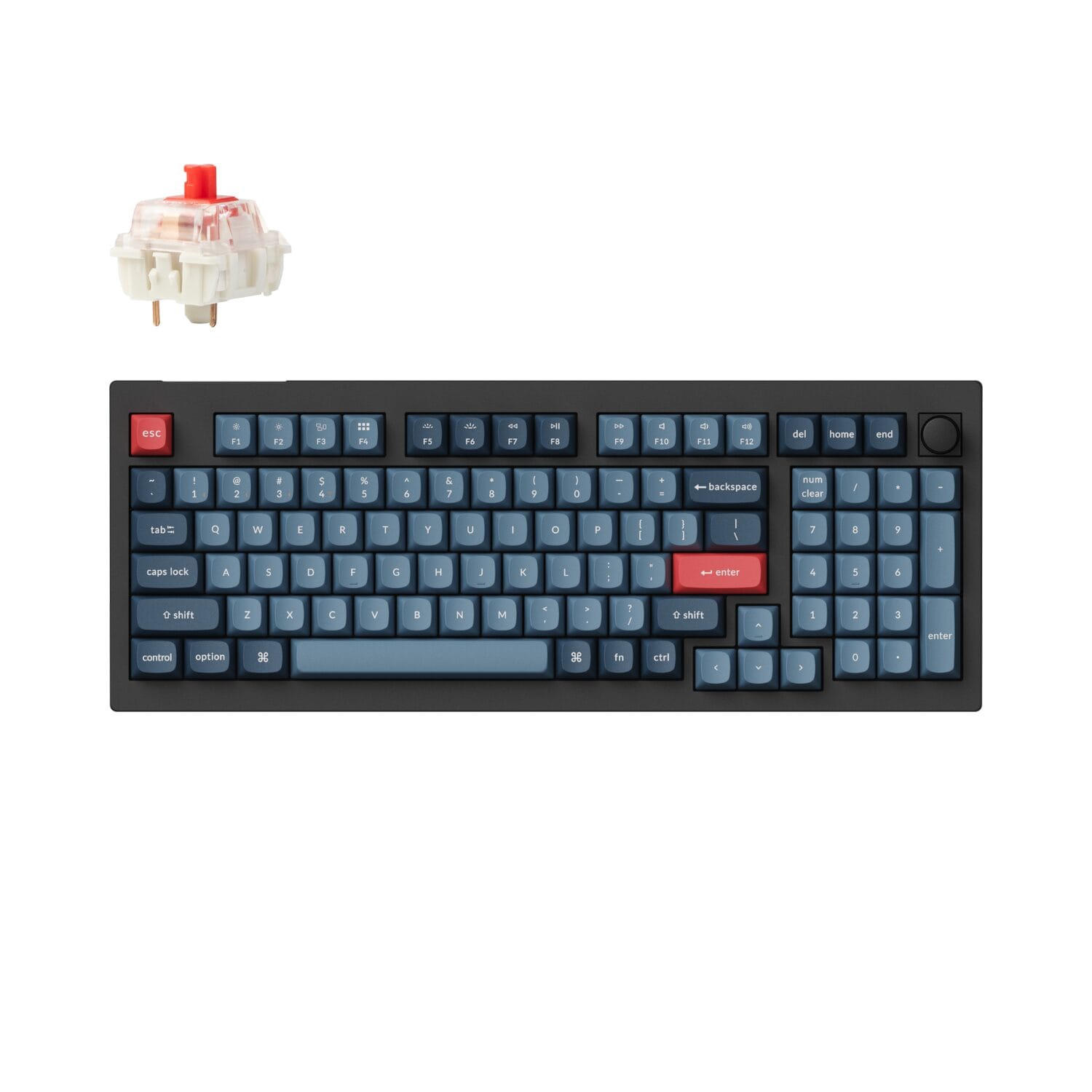

  • Gateron Jupiter RED Switch:
    • Operating force: 45 ± 15 gf
    • Pre-travel:2 ± 0.6 mm
    • Travel distance: 4mm max.
    • Behaviour: Linear
    • Pre-lubed: Yes
    • Sound level: Quiet
    • Suitable for: Office/Gaming

WHAT’S IN THE BOX:

  • Keychron V5 Max Wireless Custom Keyboard - RED Switch x1
  • Type-C to Type-C Cable x1
  • Type-A to Type-C Cable x1
  • Extension Adapter for Receiver x1
  • Type-A 2.4GHz Receiver x1
  • Type-C 2.4GHz Receiver x1
  • Keycap & Switch Puller x1
  • Screwdriver x1
  • Hex Key x1
