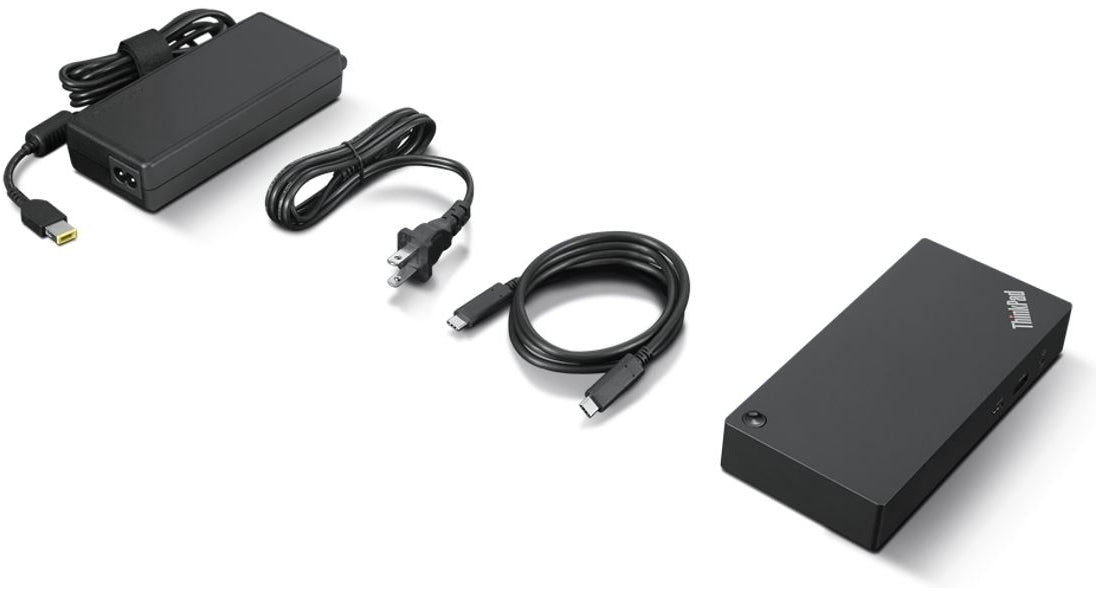

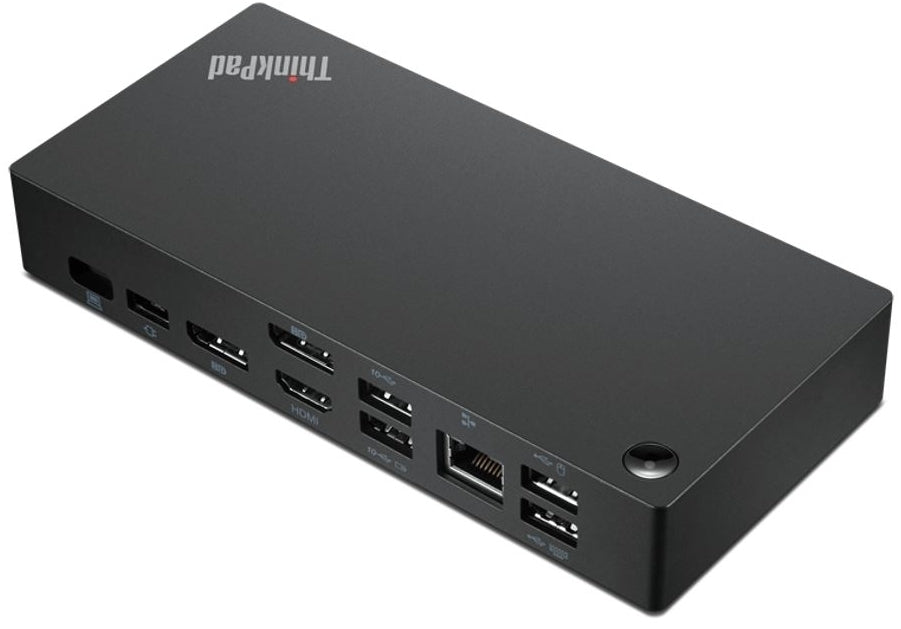

Lenovo ThinkPad Universal USB-C Dock

Overview:

The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks***, Automated firmware updates, Next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industry standard Notebooks.

****: DISCLAIMER "Lenovo USB-C & Thunderbolt Docks function with notebooks that support industry standard USB-C Alt-Mode or Thunderbolt protocols through their Type C port. Lenovo USB-C and Thunderbolt Docks support additional features, such as MAC address passthrough, WOL and mirrored power button, on most Lenovo ThinkPad notebooks, but such features may not be available on certain other Lenovo notebooks or non-Lenovo branded notebook systems."

*** ThinkPad Universal USB-C Dock could charge Notebook max as 100W with 135W Slim Tip power adapter(sold separately, Option PN:4X20Q88539~4X20Q88553 ) connected to Dock.

• One Dock. No Limits. Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.
• One Cable. No Hassle. With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.
• Entire Fleet. One Manager. The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support tranditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream.
• Supported by the Lenovo Dock Manager, an advanced solution that automatically manages docking, as well as providing firmware updates, device queries, and analytics on all Lenovo Smart Docks.

Specifications:

Product Code	LENOVO 40AY0090SA
Specifications
Brand	ThinkPad

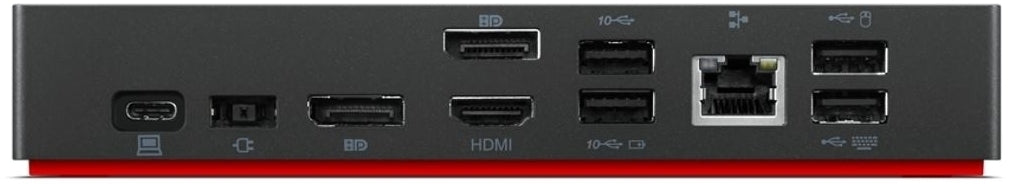

Video Ports	2x Display Port, 1x HDMI Port

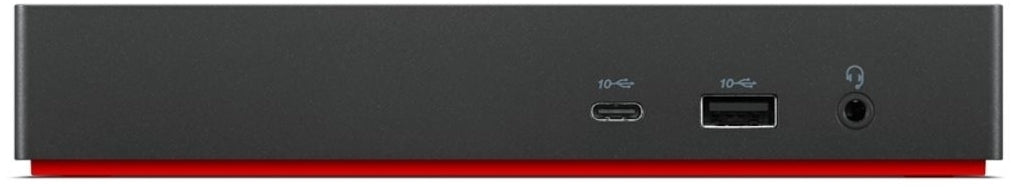

USB Ports	3x USB3.1, 2x USB2.0, 1x USB-C
Audio Ports	1x Combo Audio Jack
Ethernet	1x Gigabit Ethernet
Physical Security Feature	1x Security lock slot
Max Number of External Monitors	3
Maximum Resolution/Refresh Rate	2x 3840x2160 @60Hz, 1x 3840x2160 @30Hz
Charging Port	DC-IN
Input Power	90W
Power Delivery	Yes
Output Power	65W with 90W power adapter connected, 100W with 135W power adapter connected
Power Button	Yes
Power Plug	Slim-tip
Length	171mm
Depth	80mm
Height	30.75 mm
Product Weight	340g
Package Type	Brown Box
Packed Dimensions (L x D x H)	210*158*75mm
Packed Weight	955g
Color	Black
