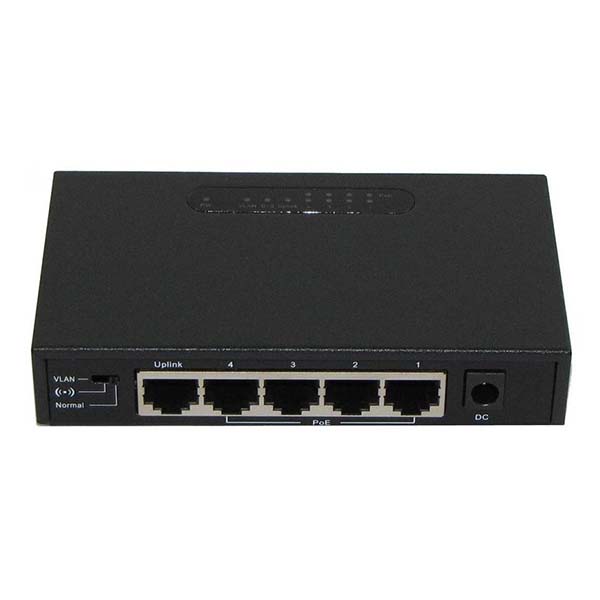

M-Link 4 PORT 10/100 POE + 1 LAN Switch

4 PORT 10/100 POE + 1 LAN - TXE104

5 PORT 10/100 POE - TXE104

Hardware Specifications

Network Connector: 5-port RJ45 for 10/100BASE-TX, auto MDI/MDIX

PoE Inject Port: 4-port with 802.3af/at PoE injector function (Port 1 to Port 4)

LED Display: System

Power (Green)

Per PoE port:

PoE (Red/Blue, Port 1 to Port 4)

LNK/ACT (Green, Port 1 to Port 5)

DIP Switch: Standard mode for 100M

Extend mode for 250m (Based on the cable category)

Switch Architecture: Store and Forward switch architecture

MAC Address Table: 1K MAC address table with auto learning function

EST Protection: 4KV

Switch Fabric: 1Gbps

Switch Throughput: 0.74Mpps @64bytes

Maximum Packet Size: 1536bytes
